16 LDK 4021 HDTV 7-inch high brightness viewfinder - User’s Guide (v2.0)
Chapter 3 - Operation
Aperture correction adjust
Varies the amount of aperture correction applied to the viewfinder signal when the aperture
correction switch is in the On position.
Aperture correction switch
Switches the aperture correction of the viewfinder signal On and Off.
Cursor frame selection
Selects the cursor frame mode for viewfinder display: box type, deactivated, lines type.
Vertical cursor line
Shifts the top or bottom cursor lines in a vertical direction.
Horizontal cursor line
Shifts the left or right cursor lines in a horizontal direction.

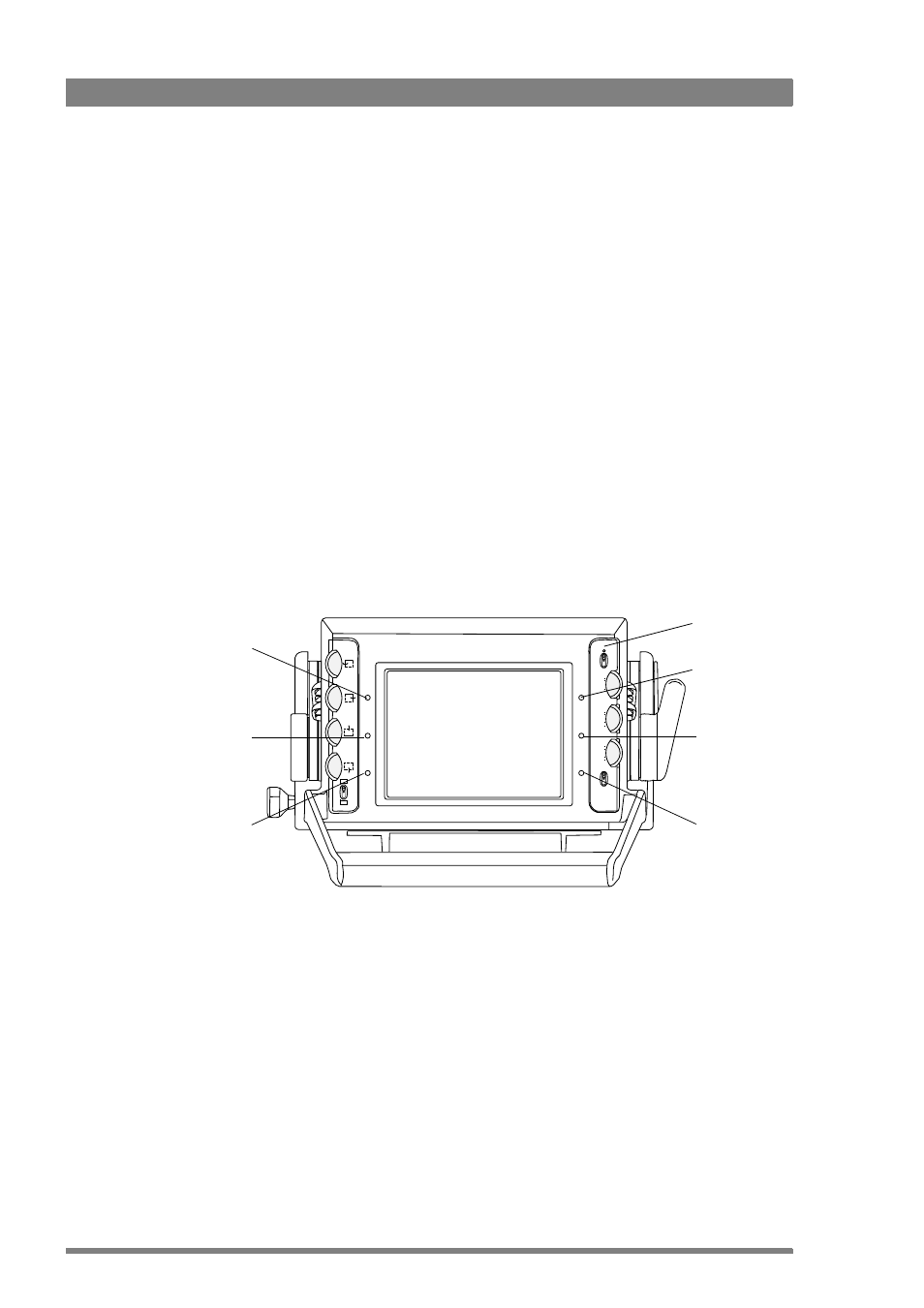

3.2 Indicators
Power indicator
This green LED indicates that the viewfinder is switched on.
On Air indicators
These red LEDs indicate that the camera is currently on air.
ISO indicators
These yellow LEDs indicate that the camera is currently in ISO mode.
Call indicators
These green LEDs light to attracht attention when CALL is activated.
on
off off
-
-
-
+
+
+
power
indicator
ISO
indicator
Call
indicator
On Air
indicator
ISO
indicator
Call
indicator
On Air
indicator
