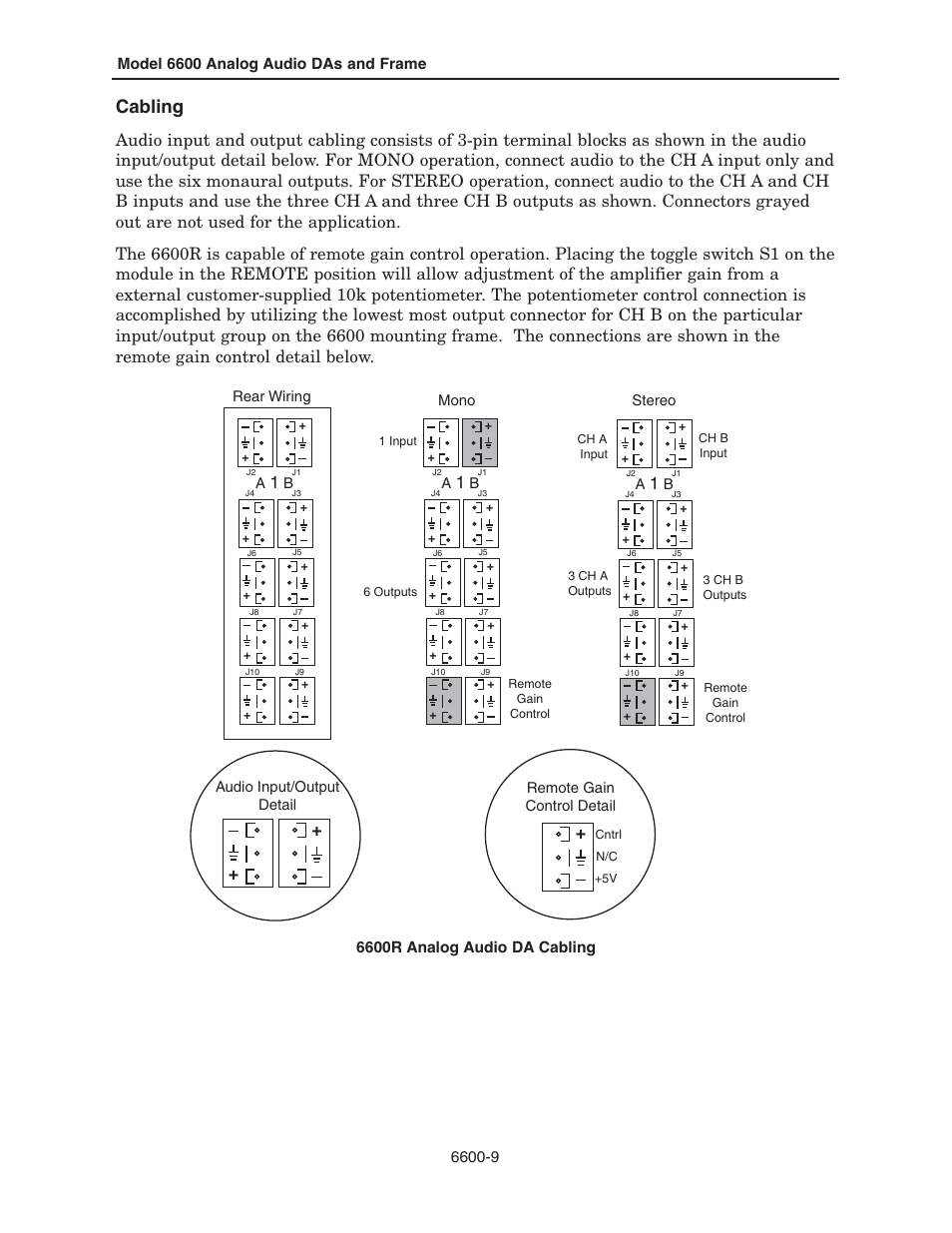

Cabling – Ensemble Designs 6600 Series Analog Audio DAs and Frame Models 6601, 6601R and Frame 6600 User Manual
Page 9
