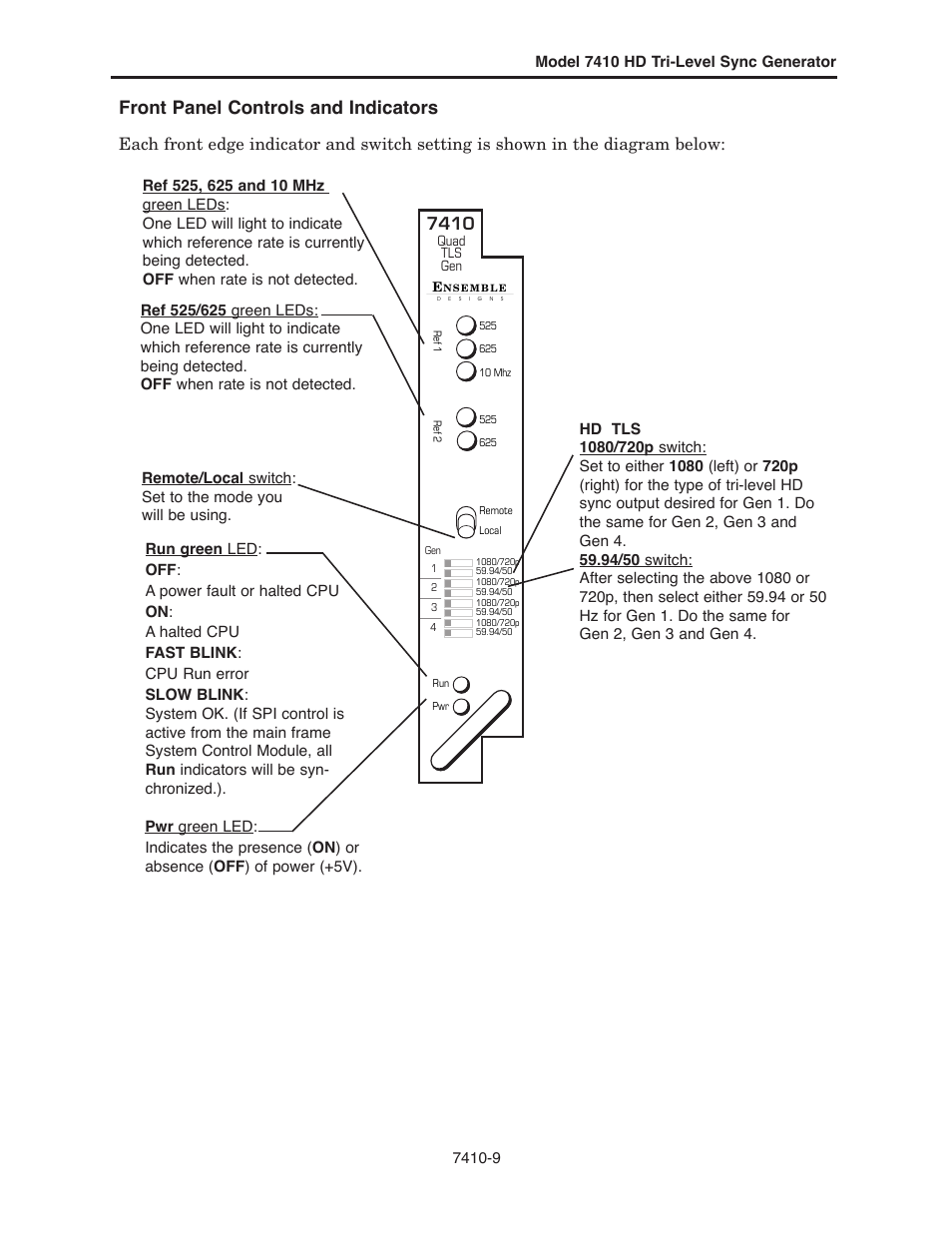

Front panel controls and indicators – Ensemble Designs 7410 Quad HD Tri-Level Sync Generator User Manual
Page 9
