7

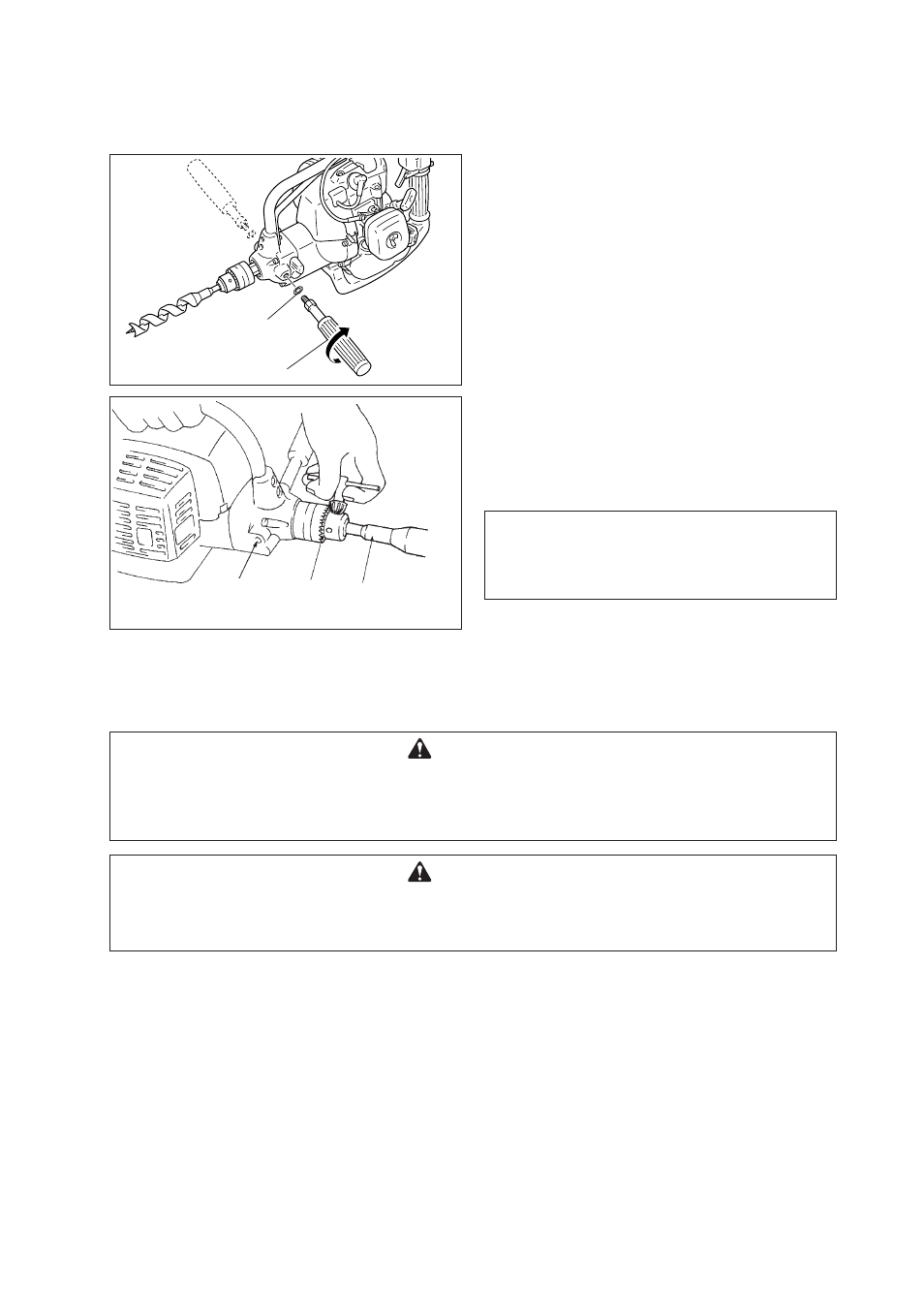

ASSEMBLING
FRONT HANDLE
• Insert the front handle to the machine, and turn
clockwise. (TIGHTEN THE SCREW FIRMLY)
- To operate front handle with right hand,
remove right plug then reverse sides when
installing handle and plug.
DRILL BIT
• Insert the drill bit (not provided with unit) until it
reaches the bottom of the chuck, then back it
out slightly; tighten the chuck laws evenly and
completely.
IMPORTANT
Use drill bits suited for the material being
drilled and for the depth of hole required.
Front handle
Washer
OPERATION
WARNING
Moving parts can amputate fingers or cause severe injuries. Keep hands, clothing and loose
objects away from all openings. Always stop engine, disconnect spark plug, and make sure all
moving parts have come to a complete stop before removing obstructions, clearing debris, or
servicing unit.
WARNING
Engine exhaust IS HOT, and contains Carbon Monoxide (CO), a poison gas. Breathing CO can
cause unconsciousness,serious injury, or death. Exhaust can cause serious burns. ALWAYS
blow exhaust away from your face and body.
(Tighten three points evenly)
Drill bit
Chuck Plug
