REVERSE ROTATION
• This model is equipped with reverse rotation
mechanism.
• When drilling, set shift lever down to clockwise
(CW) rotation position.
• If bit is locked due to deep penetration during
drilling operation, set shift lever up to
counterclockwise (CCW) rotation position and
operate reversed for easy pulling-out.
• When changing direction of drill rotation,
operate as follows:
- Return engine to idle.
- Engine shift lever to CW or CCW position
with a slight acceleration of the throttle
trigger.
To properly lock the gears in the gear case.
- Do not operate shift lever forcibly when
changing rotation direction.
NOTE
Do not shift from forward to reverse (or vice-
versa) while the chuck is turning.
Failure to do so may cause unit damage.
Always release throttle and allow the unit to
return to idle before shifting.
Do not stand close to drill or chuck with your
body or clothes while operation.
When drilling, ensure that no power cable or
other obstacle exist.
WARNING
• WHEN THE DRILL CAN NOT PULL OUT
FROM THE WOOD, DO NOT TRY TO PULL
OUT THE DRILL BY FORCE.
• WHEN CHANGING THE BIT, ENSURE TO
STOP THE ENGINE.
• AFTER A JOB, BIT AND GEAR CASING
MAY BE HEATED, DO NOT TOUCH THEM
WITH BARE HANDS.

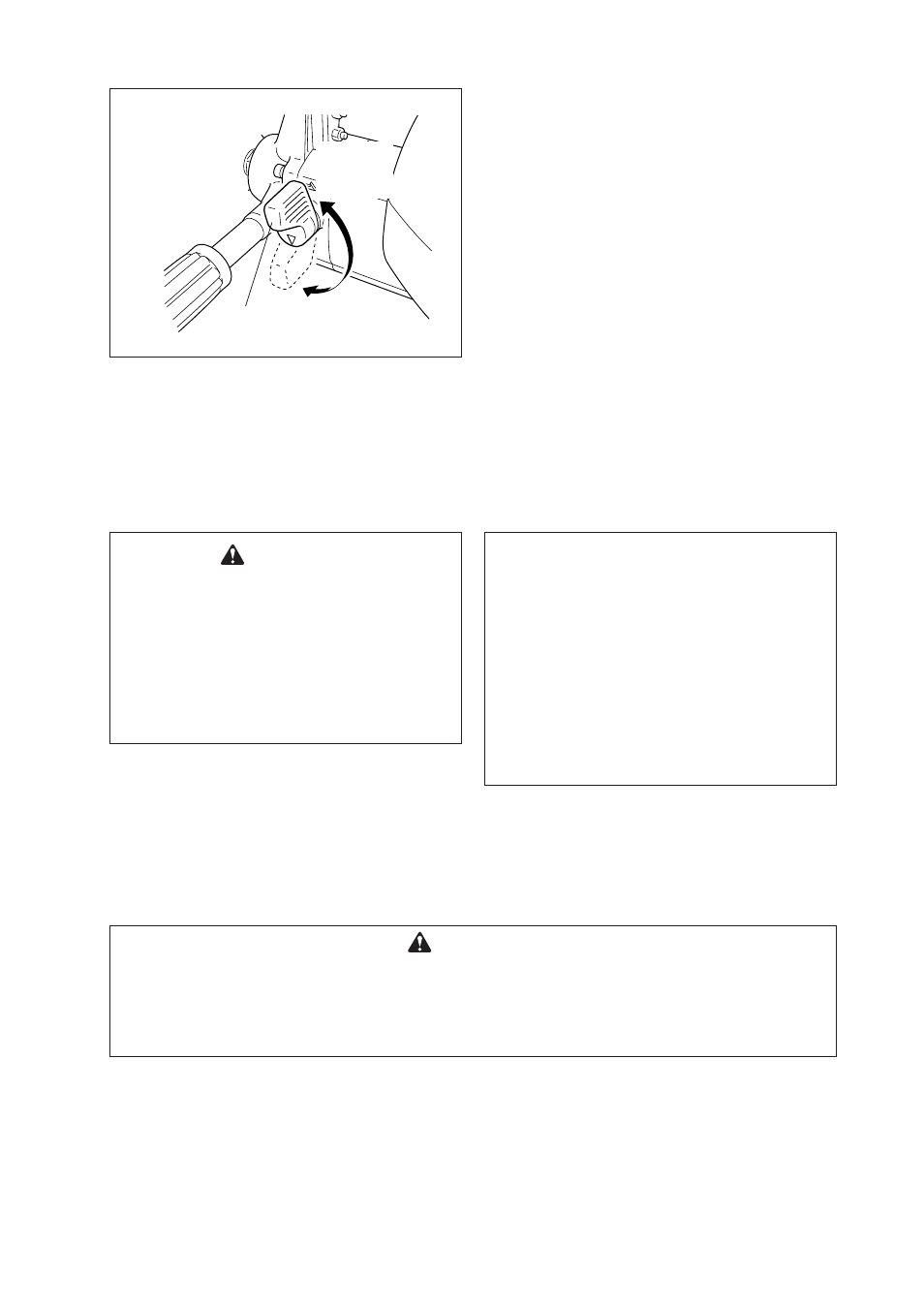

Shift lever
Clockwise
(CW)
Counter
clockwise
(CCW)
MAINTENANCE AND CARE
WARNING
Moving parts can amputate fingers or cause severe injuries. Keep hands, clothing and loose
objects away from all openings. Always stop engine, disconnect spark plug, and make sure all
moving parts have come to a complete stop before removing obstructions, clearing debris, or
servicing unit. Allow unit to cool before performing service. Wear gloves to protect hands from
sharp edges and hot surfaces.
