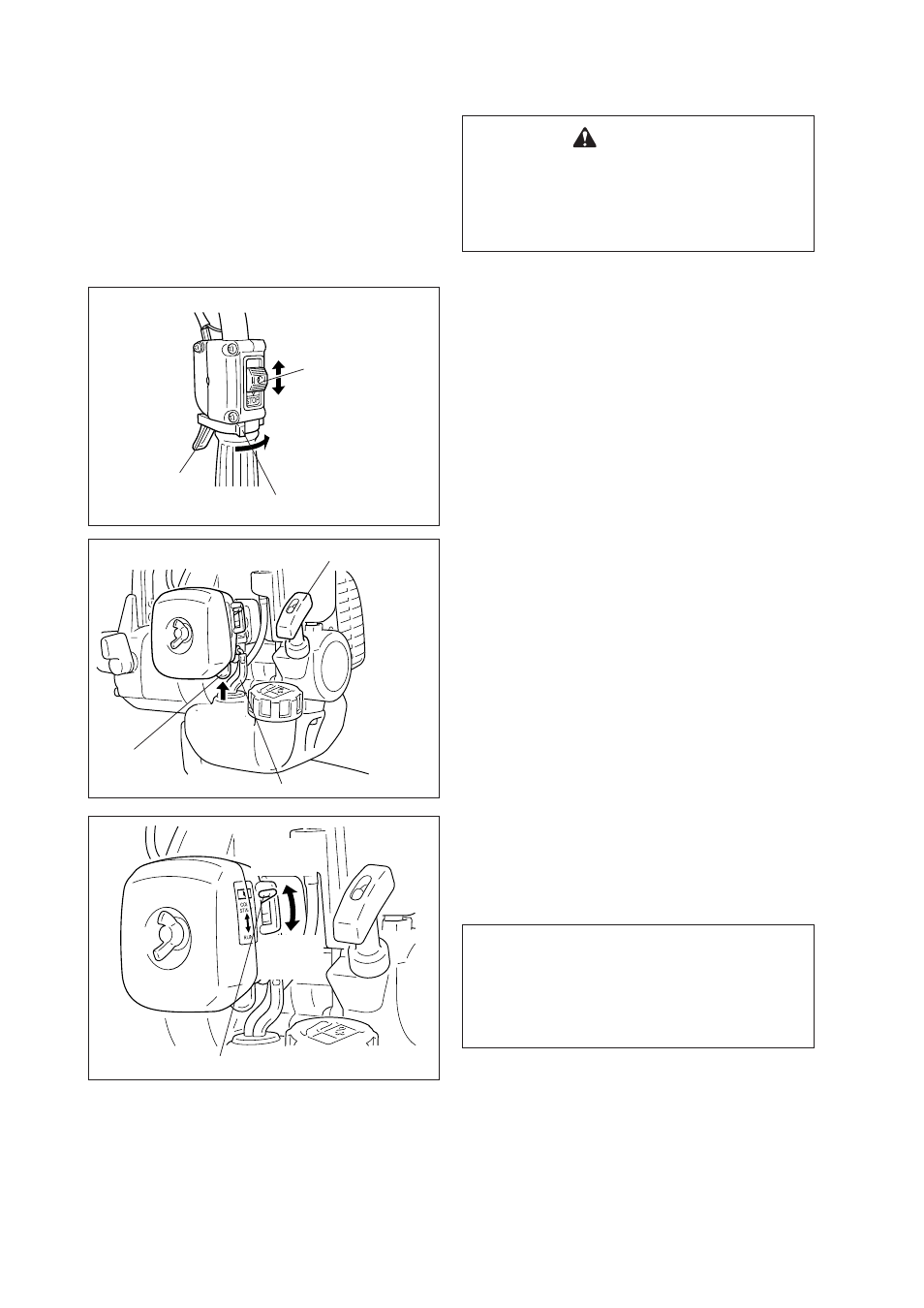

STARTING COLD ENGINE
STOPPING ENGINE
• Set throttle trigger in idle position.
• Place ignition switch in STOP position.
STARTING WARM ENGINE
• Place ignition switch in ON (START/RUN)
position.
• Pull starter handle until the engine fires.
- Do not use the choke.
Choke lever
Starter handle
Throttle trigger lockout
Fuel return line
Purge bulb
Push
(Open)
RUN
START
(Close)
Ignition switch
WARNING
WHEN ENGINE IS STARTED, CONFIRM IF
THERE IS NOT ANY ABNORMAL VIBRATION
OR SOUND. IF THERE IS ABNORMAL
VIBRATION OR SOUND, ASK YOUR DEALER
TO REPAIR.
• Stand the engine upright on a level surface.
• Place ignition switch in ON (START/RUN)
position.
• Push purge bulb 3 to 4 times (or until fuel is
visible in fuel return line).
• Shift choke lever to close position (START).
• Pull starter handle until the engine fires.
• Shift choke lever to full open position, and if
necessary, start the engine again and allow to
warm up before using.
- The clutch engages at approximately 3500
r/min. Therefore the drill bit may rotate at
fast idle engine speed.
