MAINTENANCE
ALLMAND BACKHOE HOSE ROUTING
L
GENERAL INFORMATION

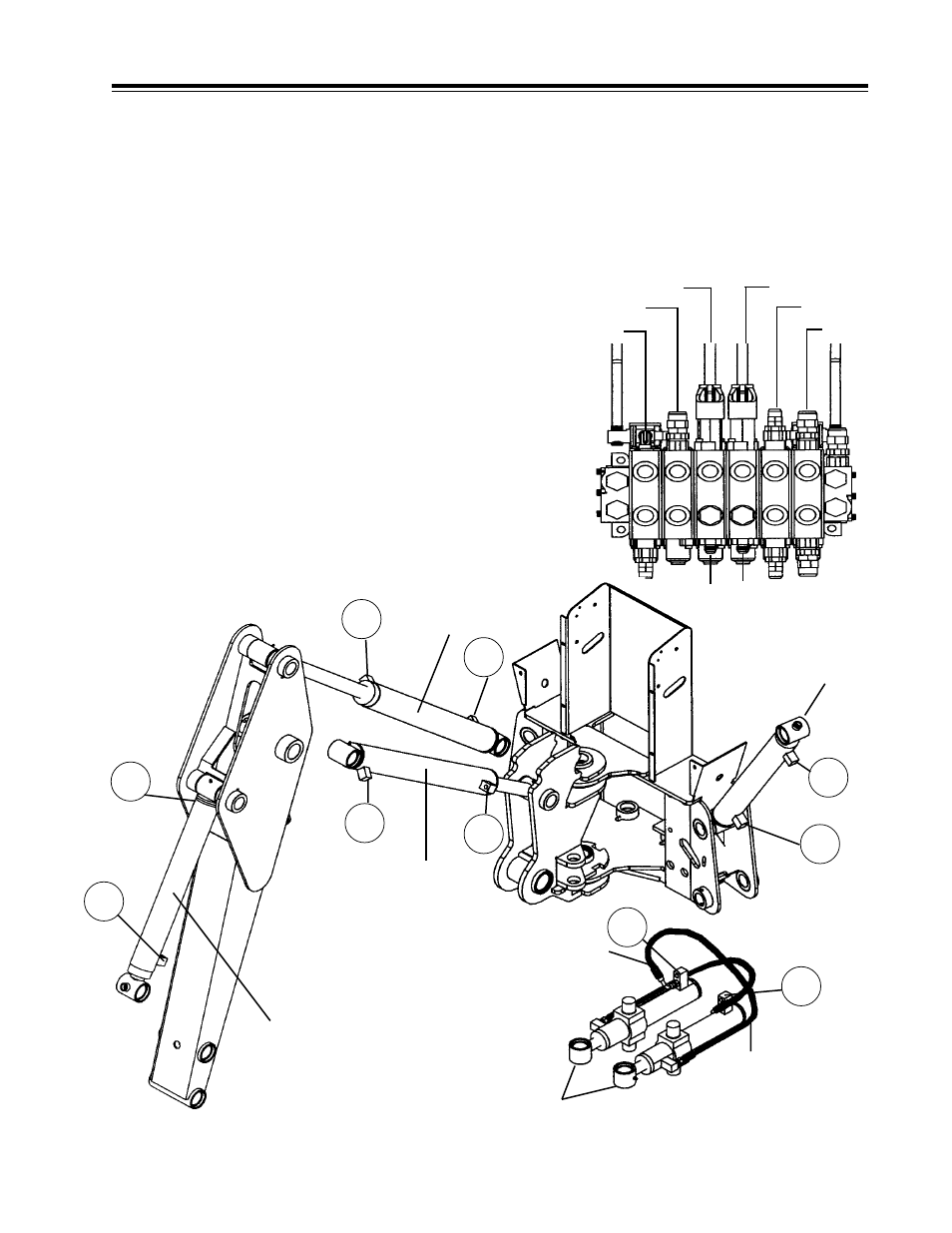

The purpose of this page is to show the hydraulic hose routing between the
backhoe control valve and the various backhoe hydraulic cylinders. This information
is helpful when trouble shooting cylinder and control valve related problems. Simply
match the number of the hydraulic cylinder port (shown in the bottom diagram), to
the corresponding number on the backhoe control valve (shown in the top diagram).
RIGHT STABILIZER
SWING
LEFT STABILIZER
DIPPER
BUCKET BOOM
1
6 5 4 3 2
11
10 9
8 7 12
1
7
BUCKET CYLINDER
SWING CYLINDER
5
11
923048
923048
4
10
(9-LEFT STABILIZER)
(3-LEFT STABILIZER)
STABILIZER CYLINDER
DIPPER CYLINDER
BOOM CYLINDER
2
8
6
12
