SPECIFICATIONS JFX560
One Main Street, Whitinsville, MA 01588 508 234 6158 Toll Free 800 992 5013 FAX 508 234 8251 [email protected] www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. JFX560/0004642/2 pp September 2002 Printed in USA
Part Number 0002880
System Configuration 2-way, full-range
Powering Switchable: Passive LF/HF
crossover or bi-amplified
LF Subsystem 1x 15-in, vented
HF Subsystem 1x 1.4-in exit/3-in voice coil
neodymium compression driver
on CD horn
Controls (switches, knobs) Powering mode switch
Recommended High-Pass
Frequency (24 dB/octave) 55 Hz
Enclosure Materials Exterior grade Baltic birch plywood
Finish Wear resistant textured black paint
Connectors 2x Neutrik NL4 Speakon
Hardware Pole mount cup (bottom); 2x 3-
position fly track (bottom); 1x
11-position fly track (top); 4x
5/16”-18 suspension points for
Omnimount Series 300 (rear)
Grille Powder coated perforated steel,
foam backed
Frequency Response (1 W @ 1 m)
±3 dB 80 Hz to 15 kHz
-10 dB 55 Hz
Axial Sensitivity (dB SPL, 1 W @ 1 m)
Full Range 98
LF 98
HF 104
Impedance (Ohms)
Full Range 8
LF 8
HF 8
Power Handling (Watts, continuous)
Full Range 500
LF 800
HF 200
Calculated Maximum Output (dB SPL, @ 1m)
Full Range Peak 131
LF/HF Peak 133/133
Full Range Long Term 125
LF/HF Long Term 127/127
Nominal Coverage Angle / -6 dB points (degrees)
Horizontal 60
Vertical 45
PHYSICAL
PERFORMANCE
• Ideal size and performance for rigorous all-purpose use
• 60° coverage permits creation of optimized horizontal
arrays
• HF compression driver and vented LF for fully professional
performance
• Asymmetric enclosure provides multiple mounting angles
• Pole mount cup & fly track, plus Omnimount®
Series 300 or similar mounting points
• Passive or bi-amplified operating modes

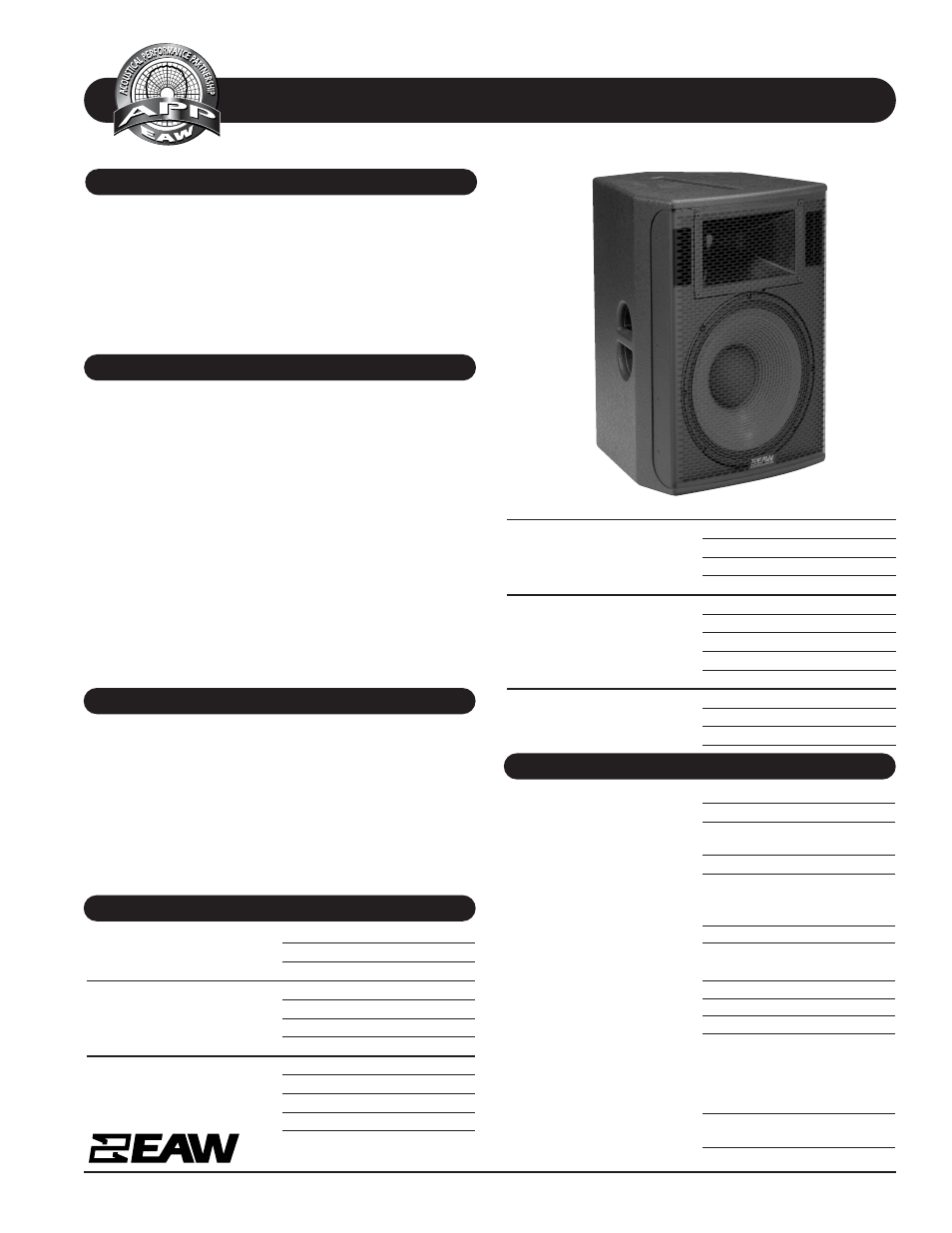

The JFX560 is a 2-way multi-purpose loudspeaker. Its multi-
functional design adds considerably to its value as a full-
range loudspeaker. Combining high output and natural repro-
duction, it is specifically outfitted to serve in a variety of
both portable and permanent applications. The asymmetric
enclosure provides typical angles needed for ceiling and wall
mounting as well as for stage monitor operation. For perma-
nent installation, enclosure hardware includes mounting
points for an Omnimount® Series 300 or similar bracket and
fly track for suspension. Provisions for portable use include a
pole mount cup, top/bottom fly track for rigging, and handles
integral to the enclosure that facilitate handling and trans-
port. The JFX560 is particularly suitable as a near field main
loudspeaker or as a fill/delay element in larger systems.
While the JFX560 is well suited as is for many applications,
the addition of a subwoofer expands its capabilities for more
demanding applications such as for houses of worship, theaters,
and band PA. Six year warranty.
• Portable systems or permanent installations
• Wall and ceiling mountings
• Ideal size and output for wide range of
program material
• Main PA reinforcement in medium- to
large-sized spaces
• Downfill for flown clusters
• High SPL stage lip / delay fill
• A/V and/or surround sound installations
• Voice & F/X reinforcement in themed attractions
FEATURES
DESCRIPTION
APPLICATION
