AIRLESSCO SS4550 - Manual (Page 33)

30 31

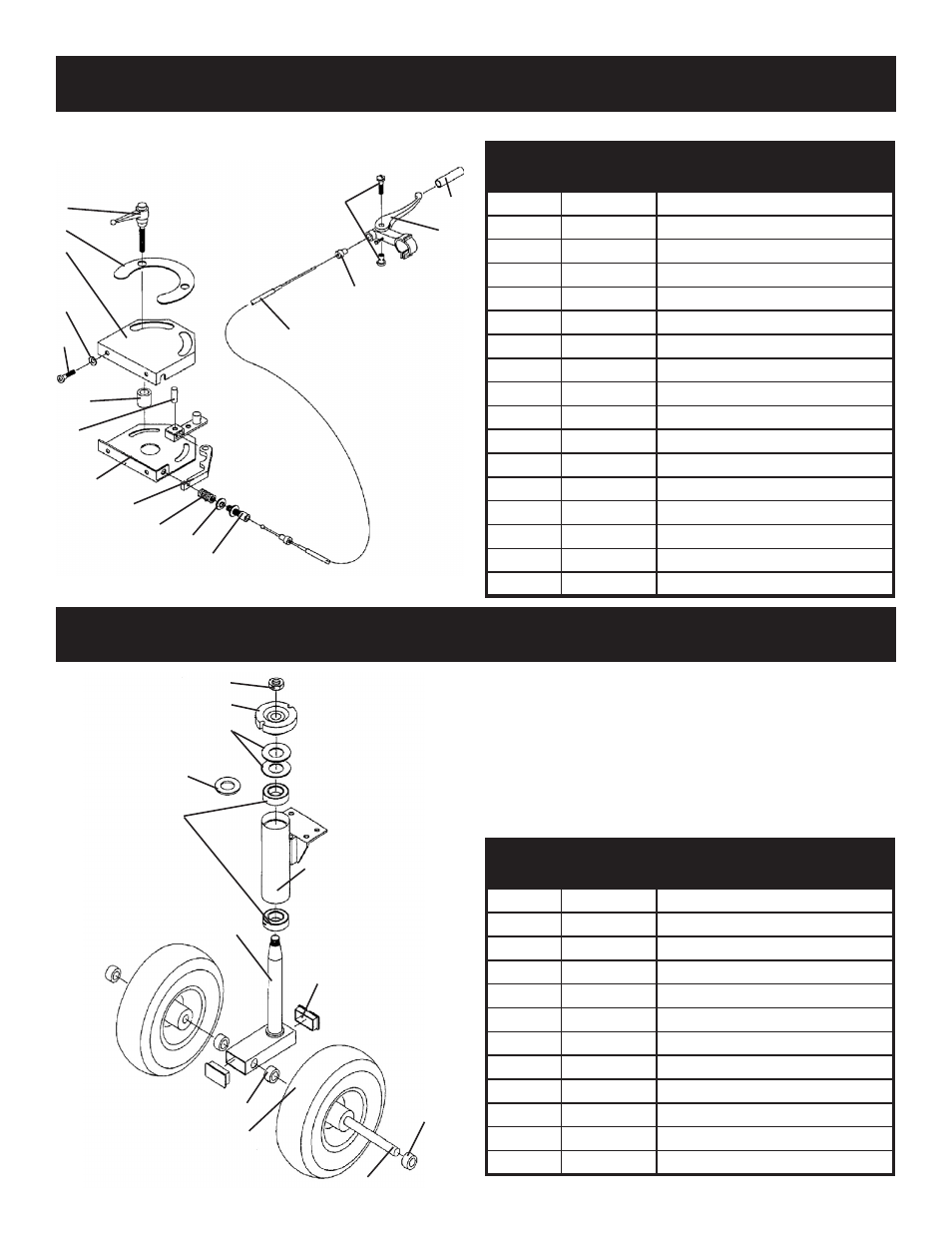

SWIVEL LOCK ASSY - 6050 (305-390)
SWIVEL WHEEL ASSY - 6050 (305-022)
305-105PARTS LIST FIGURE 37
Item No. Part No. Description
1 305-020 Adjustable Handle (2)
2 305-091 Seal
3 305-049 Cover-Lock
4 140-042 Washer (3)
5 331-138 Screw (3)
6 305-027 Spacer (2)
7 119-028R Dowel Pin
8 305-031 Base Lock Weldment
9 305-081 Lever
10 305-032 Spring
11 119-019 Washer (2)
12 305-032 Cable Adjuster
13 100-684 Cable Assy Swivel
14 305-089 Cable Insert
15 136-023 Cable End Lug
16 305-105 Lever
17 301-335 Heat Shrink
PARTS LIST FIGURE 38
Item No. Part No. Description
1 301-227 Jam Nut
2 305-025 Swivel Lock
3 305-028 Belleville Springs (2)
4 305-179 Shim
5 301-036 Bearing (2)
6 305-023 Swivel Body
7 305-024 King Pin
8 305-037 Plug (2)
9 113-030 Spacer (2)
10 139-337A Wheel (2)
11 305-038 Axle
12 143-029 Set Collar (2)
1
8
6
5
4
3
2
10
9
11
12
17
16
15
14
13
7
FIG. 37
1
7
6
5
4
3
2
9
8
10
11
12
FIG. 38
