ACTi Indoor Dome (D5xE5x) on Tilted Wall - Manual (Page 4)

www.acti.com
Installation Guide
4

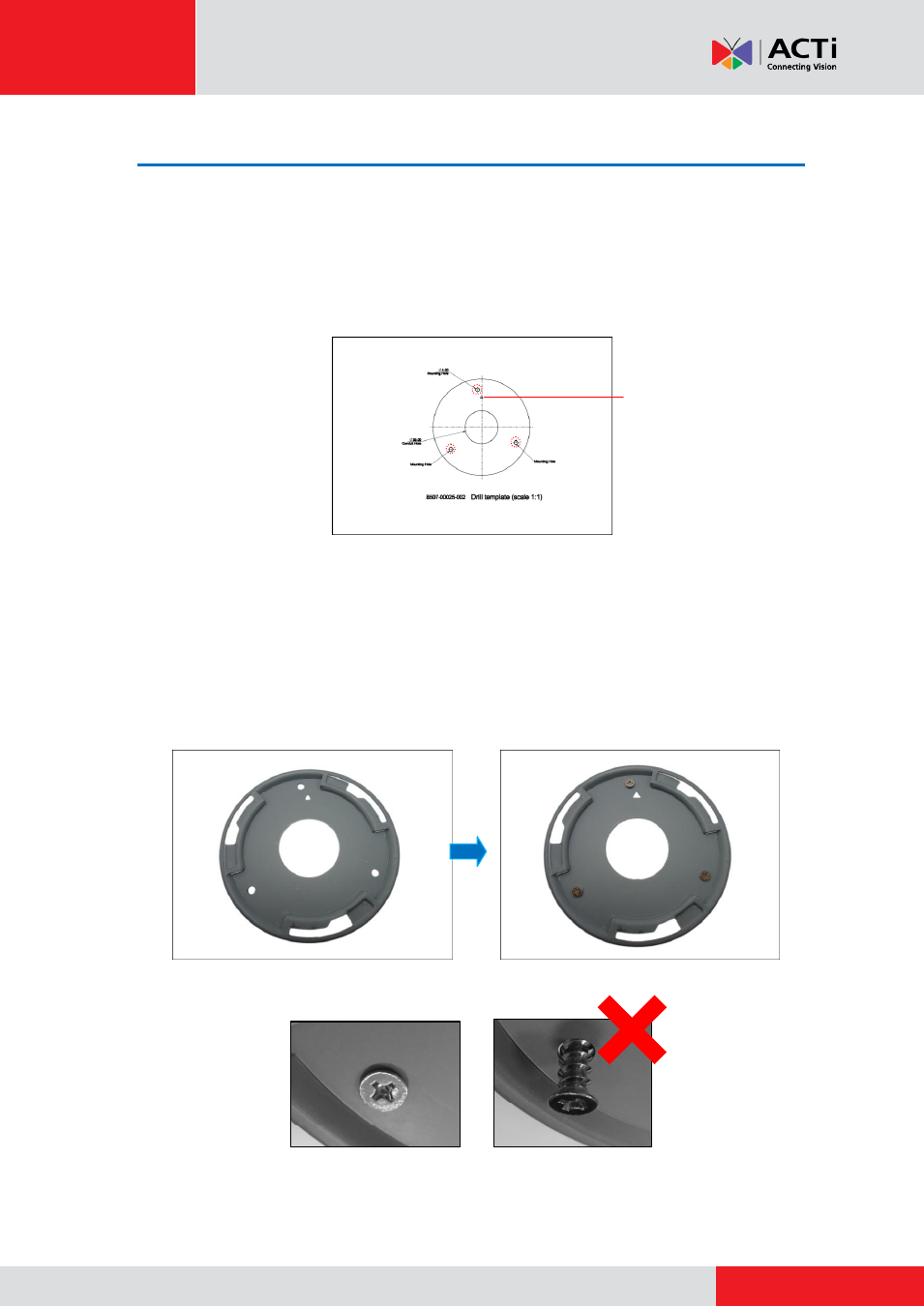

Step 2: Attach the Mounting Plate
NOTE: Before installation, consider the camera viewing angle and logo placement. The arrow on
the drill template and mounting plate align with the direction of the camera logo. Rotate the drill
template as needed.
1. Using the drill template or mounting plate, mark the holes on the surface. If necessary, drill
the three (3) screw holes and insert the plastic plugs.
2. Determine how the cable will be routed:
a. The cable will pass through a hole on the surface: In this case, drill the cable hole
based on the drill template.
b. The cable will go along the surface: Skip this step.
3. Attach the mounting plate on the surface using the three (3) supplied screws. Note that the
direction of the arrow on the mounting plate aligns with the camera logo.
NOTE: Make sure the screw is flat on the plate.
This arrow aligns with
the camera logo.
Rotate the template,
as needed.
