D54 / d55 / e52 / e53 / e54 – ACTi Indoor Dome (D5xE5x) on Tilted Wall User Manual
Page 19
Installation Guide
D54 / D55 / E52 / E53 / E54

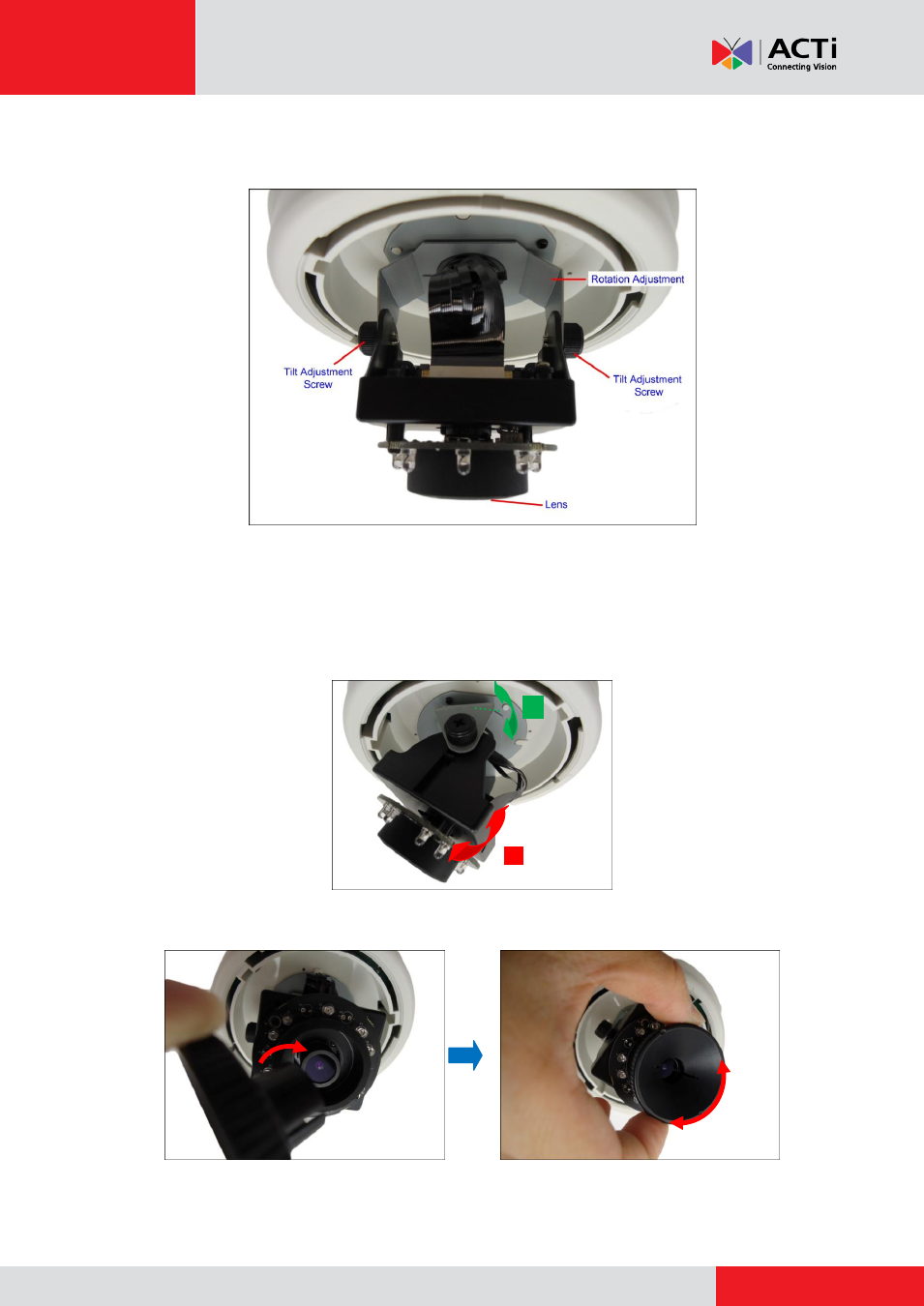

Camera Parts Overview
Adjustment Procedures
1.
Loosen the tilt adjustment screws, adjust the tilt, and then tighten back the screws to fix the
tilt position.
2.
Move the rotation adjustment to rotate the viewing orientation.
3.
Attach the bundled lens focus tuner unto the lens and turn left or right to adjust the focus.
1
2
