Echo PROTHATCH 99944200563 - Manual (Page 9)

P
ro
T
haTch
a
TTachmenT
o
PeraTor
'
s
m
anual
9
A
B
C
D

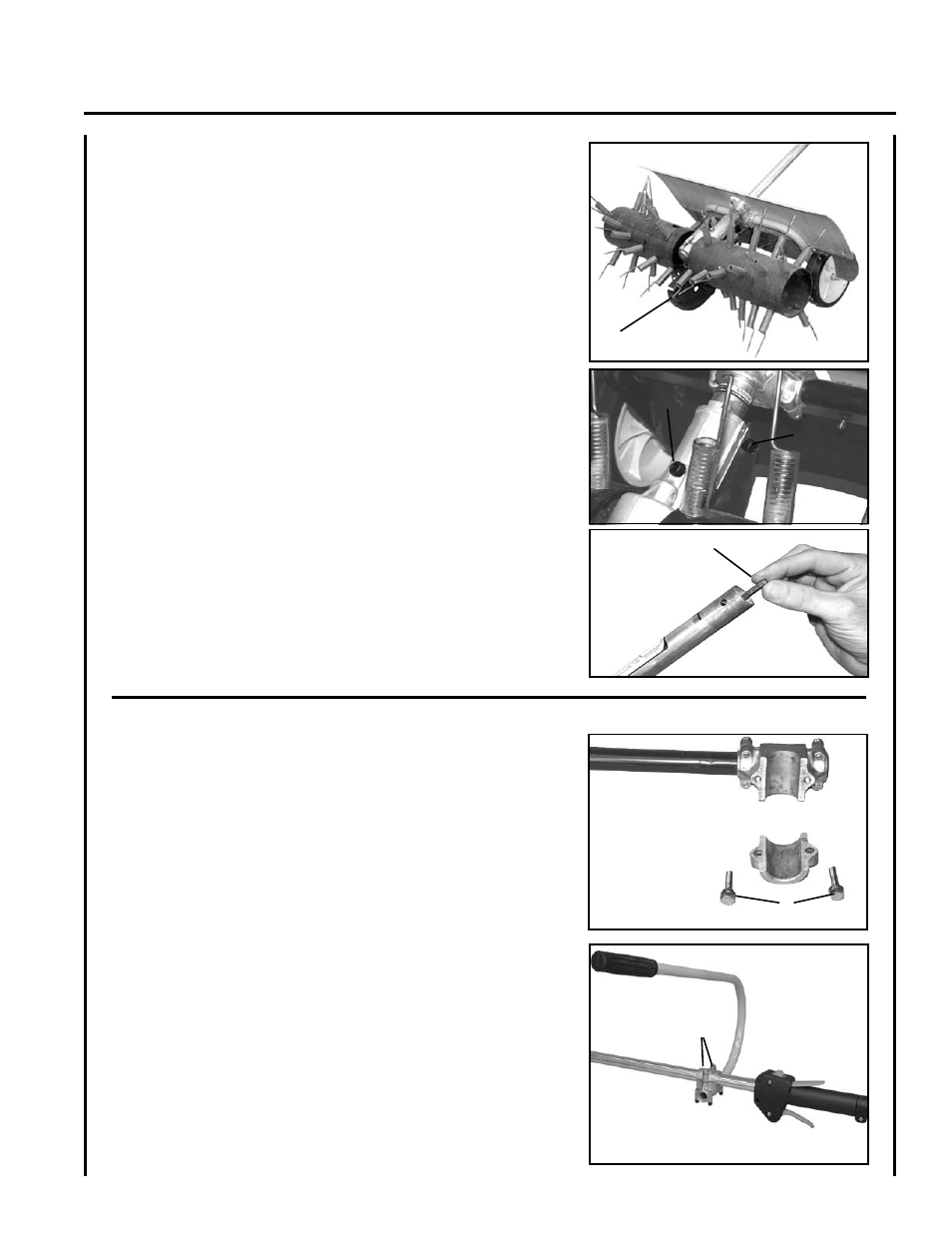

4. Install and seat lower drive shaft end (end with fender/wheel as-
sembly into gear housing shaft mount. Make sure grass guide (D)
is facing down toward the ground.
5. Rotate and align hole in drive shaft housing with gear housing
shaft hole. Install and tighten alignment screw (A) .
6. Tighten gear housing shaft mounting bolt (B).
7. Check for proper inner flex cable (C) engagement into gear hous-
ing adaptor. If flex cable extends out of drive shaft then cable is
not properly engaged. Rotate and push cable end until lower cable
end slides into place in gear housing adaptor. Cable end will recess
approximately 16 mm (5/8 in.) into drive shaft.
fronT j
-
handle assembly
Parts Required: Pro Attachment Series or Split Boom Upper Shaft
and Power Head
1. Remove original front handle assembly. Assemble handle parts
with fasteners and store in a safe place for future application with
other attachments.
2. Remove two (2) J-Handle bracket bolts (A).
3. Install J-Handle assembly with handle grip on the left side (viewed
from the operator's position) onto the upper drive shaft. Lightly
snug bolts (A) to temporarily hold handle in place.
A
A
