14

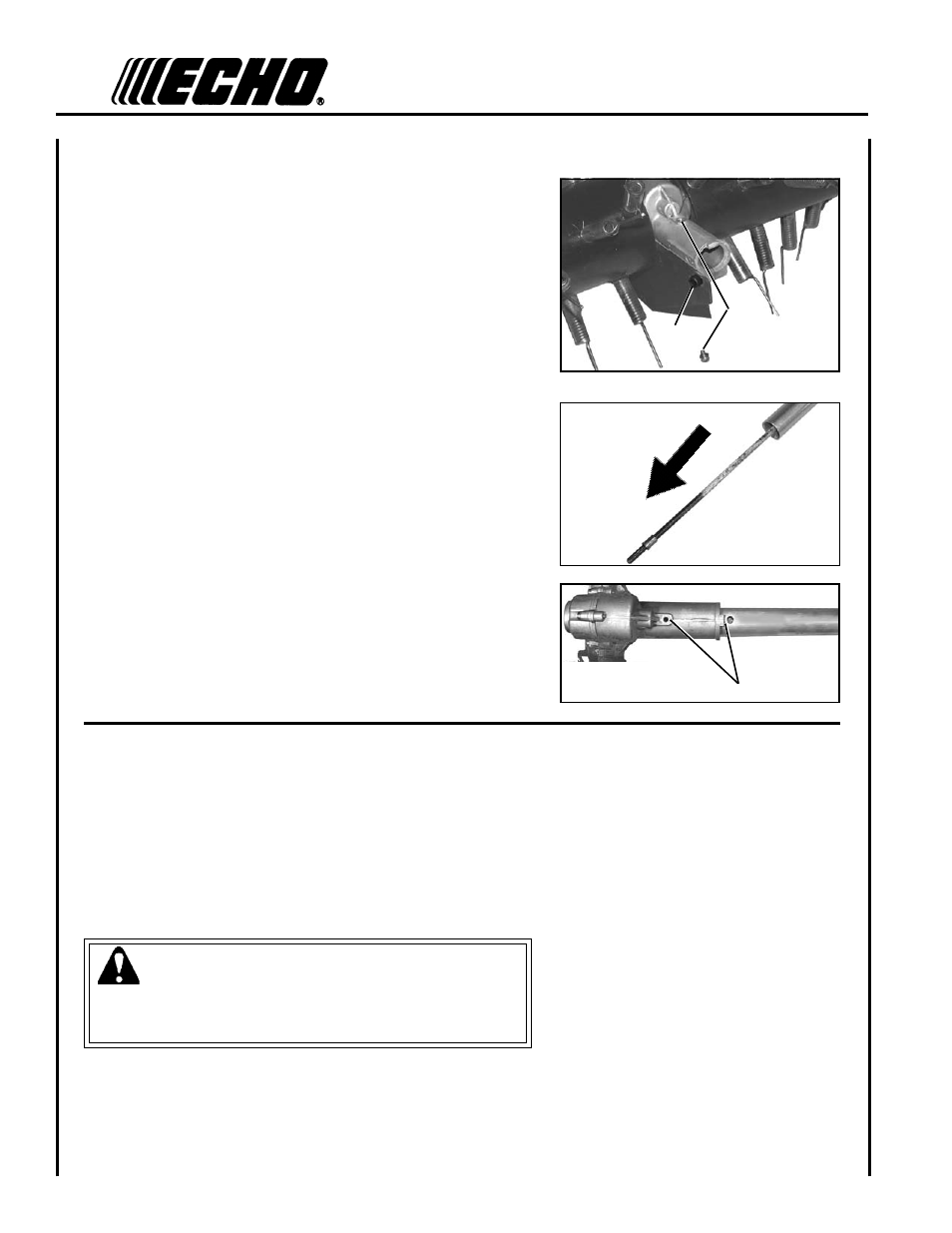

Drive Shaft (Lower)
1. Remove gear housing locator screw (A).
2. Loosen gear housing mounting bolt (B).
3. Pull gear box from drive shaft housing.
4. Pull flexible cable from the drive shaft housing, wipe clean and
re-coat with a thin coating [15 ml (1/2 oz.)] of grease
5. Slide the flexible cable back in the drive housing. DO NOT get
dirt on the flex cable.
6. Position lower drive shaft (end without safety decal) into gear
housing shaft mount.
7. Align hole in drive shaft housing with gear housing shaft hole
(C) and seat lower drive shaft end into gear housing shaft mount.
Install and tighten locator screw (A).
8. Tighten gear housing mounting bolt (B).
C
TIne replaCemenT
Level 2.
Parts Required: Thatching spring (P/N 61004725560), Screw (P/N
88995325560), plastic tube (P/N 21001325560)
Bent or broken tines should be replaced before operation for best det-
hatching efficiency.
WARNING
Never replace tines with engine running. Tines are sharp, wear
gloves to protect your hands when replacing them.
A
B
