Hardware Manual

10.

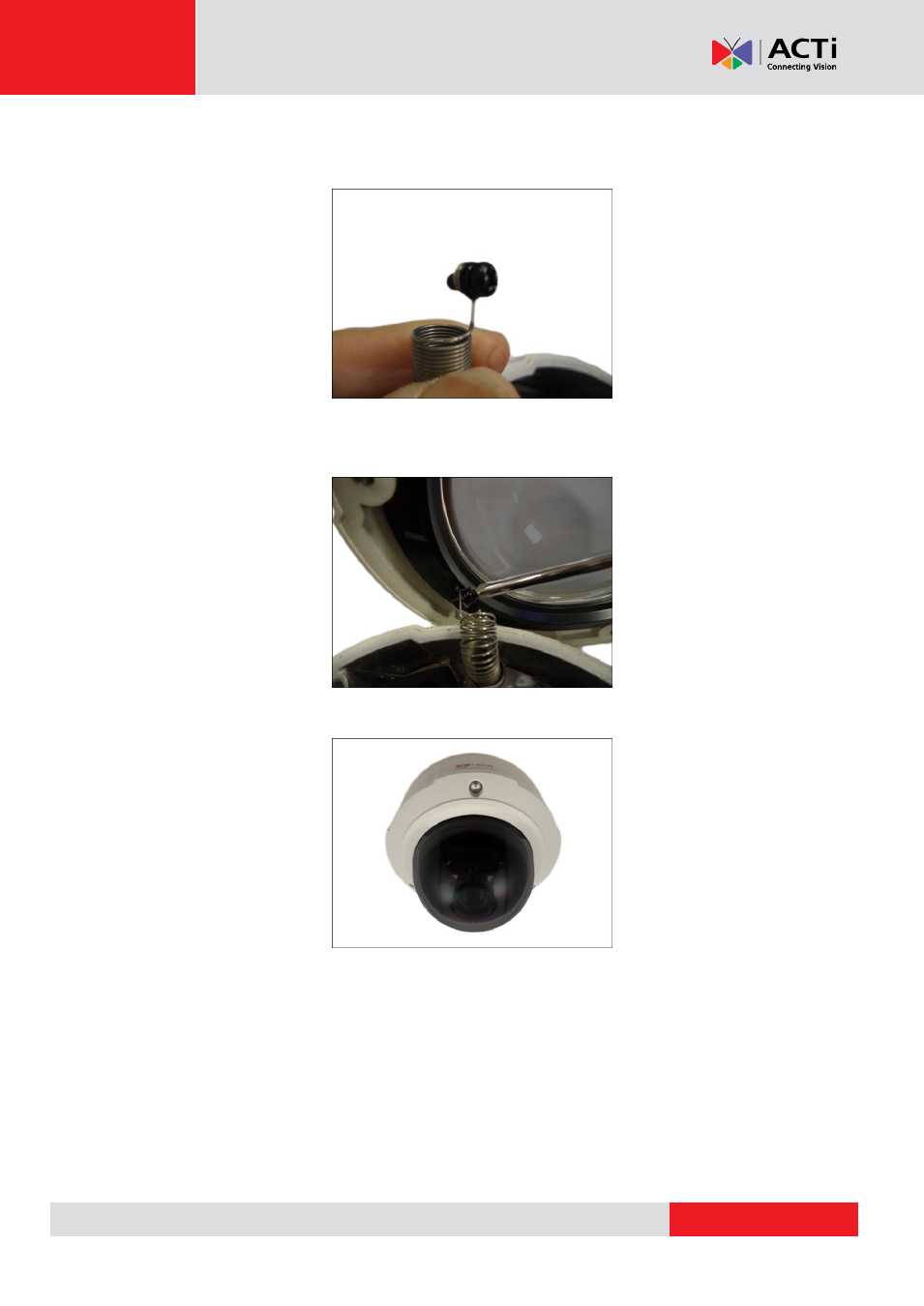

Fit the screw into the spring wire that is attached to the camera. Note the screw placement as

shown below.

11.

There are two (2) screw holes on the bracket, attach the screw to the right screw hole using a

screwdriver.

Final installation should look like the illustration below.
