Page 2

Screen Brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3200 ANSI Lumens / 2560 in Eco-Mode
Illumination Uniformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90%
Size of Color Palette . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16.7 Million
Contrast Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 800:1 (Full ON/OFF)
Horizontal Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 800 TV Lines (HDTV)
Projection Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . 250 Watt UHP / operates at 200 in Eco-Mode
Estimated Lamp Life . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2,000 Hours
Imaging System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99” PolySilicon active matrix TFT Panels x 3
Screen Pixels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1024 x 768 in stripe configuration
Total Pixels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2,359,296 ((1024 x 768) x 3)
Lens Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Power Zoom and Focus
Lens Specs . . . . . . . . . . . . . . . . . . . . . . . . . . . Speed: f:1.7~2.1; FL: 1.34~2.19 in. (34~ 44 mm)
Lens Ratios . . . . . . . . . . . . . . . . . . . . . . . . . . Zoom Max:Min: 1.3:1; Throw:Width: 1.69~2.19:1
Image Diagonal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30~300 in. (76.2~762 cm)
Image Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.0~20 ft. (0.61~6.1 m.)
Throw Distance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.4~43.7 ft. (1.04~13.32 m.)
Front Elevation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . up to 10.0° up
Anti-Keystone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Power Lens Shift, Ratio (Top:Bottom) 10:0~1:1
Vertical Anti-Keystone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Digital: up to 30° up or down
Horizontal Keystone Correction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Digital: up to 10° left or right
Scanning Frequency . . . . . . . . . . . . . . . . . . . . . Auto: H Sync. 15 -100 kHz; V Sync. 50-100 Hz
Dot Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140 MHz
Image Orientation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Normal, Reversed, Inverted
Local Control / Power Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . Full Function/Auto Shut-Off
Remote Proj & Mouse Ctrl . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Wireless x 1 w/ Laser Pointer
Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Mouse: USB x1, Mouse/Control: 8-pin DIN x 1
Computer Native Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1024 x 768 (XGA)
Computer Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SXGA, XGA, SVGA, VGA & MAC
Computer: Image Sizing . . . . . . . . . . . . . . . . . . . . . . Normal or Smart compressed or expanded
Computer: Formats . . . . . . . . . . . . . . . . . . . . . . . . 1280x1024, 1024x768, 800x600, 640x480
Computer: Image Sizing : . . . . . . . . . . . . . . . . . . . . Normal, or Smart Compressed or Expanded
Data Input Channels : . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

1. Computer:1 . . . . . . . . . . . . . . . . . HD15 x 1 data, Audio: (Stereo) MiniStereo x 1 (L&R)
2. Computer: 2 . . . . . . . . . . . . . . . . . . . . DVI - I data, Audio: (Stereo) MiniStereo x 1 (L&R)

Data Monitor Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . HD-15 x 1
Video: System Compatibility . . . . . . . . . . . . . . . . . . . NTSC/PAL/SECAM/NTSC 4.43/PAL-M&N
Video: HDTV Compatability . . . . . . . . . . . . . . . . . 480i/p, 575i/p, 720p,1035i, 1080i -50/60
Video: Formats Supported . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4:3, 16:9
Video: Image Resizing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Video Scaling Technology
Video: Systems. . . . . . . . . . . . . . . . . . . . . . . . . . Composite, S-Video, Component (Y, Pb/Cb, PrCr)
Video: Input Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1. Video . . . . . . . . . . . . . . . . . . . . RCA x 1 Composite, S-Video x 1, RCA x 3 Component

(Y,Pb/Cb,Pr/Cr) Audio: RCA x 2 (L&R Stereo)

Audio: Amplifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Stereo: 2 Watts RMS
Audio: Built In Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Stereo: 1.8 in. (4.5 cm.) x 2
Audio: Speaker Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (Stereo) MiniStereo x 1 (8 Ohm)
Fan Noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

36 dBA / 31 dBA in Eco-Mode

Size (HxWxD). . . . . . . . . . . . . . . . . . . . . . . . 6.4 x 11.9 x 16.8 in. (161.7 x 301.8 x 425.9mm.)

includes leg 0.8” (20.7 mm.) and lens cover 0.3” (7.1 mm.)

Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17.2 lb. (8.8 kg)
Packaged Size (HxWxD) . . . . . . . . . . . . . . . . . 13.3 x 18.0 x 24.7 in. (337 x 456 x 626 mm.)
Packaged Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

27.4 lb. (12.4 kg)

Power Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100-240V AC, 50/60Hz
Power Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 350 W in Normal mode)
Heat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1195 BTU/hr. (301 Kcal/hr.) in Normal mode
Power Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10’ (3M) Type 3, Detachable
Safety Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . UL Listed
Security Facilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Kensington® Security Slot
Operating Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41~95°F (5~35°C)
User Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Clean Air Filter, Replace Lamp
Warranty: Projector . . . . . . . . . . . . . . . . . . . . 3 Yr. / 6000 Hr. *(Parts/Labor to Correct Defects)
Warranty: Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90 Days (Failed Lamp Replaced Pro-Rata)

* whichever occurs first

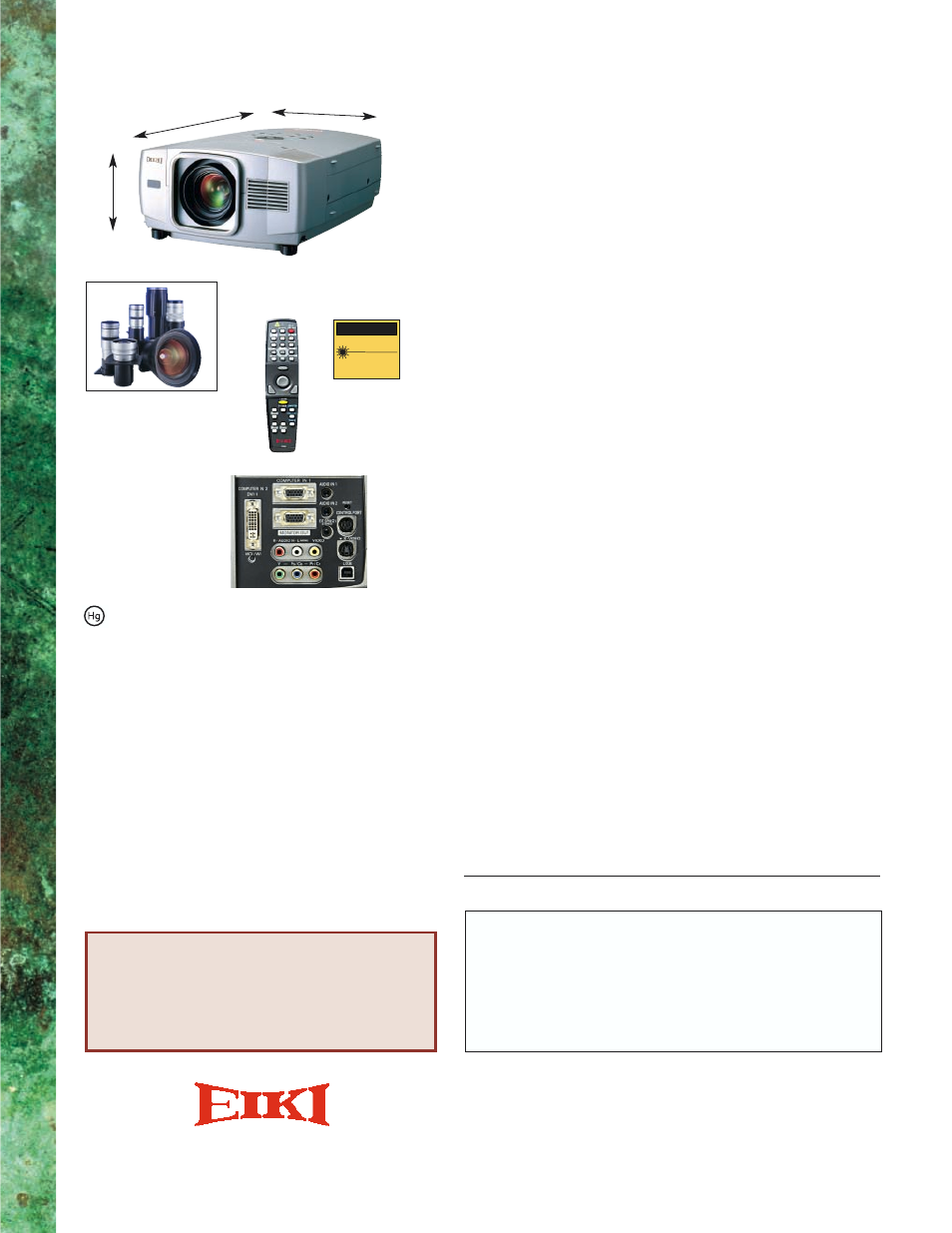

SPECIFICATIONS: LC-XG200

Specifications subject to change without notice.

Eiki International, Inc.

30251 Esperanza, Rancho Santa Margarita, CA 92688-2130

Tel: 800-242-3454; Fax: 800-457-3454, E-mail: [email protected]

In Canada, 310 First St.- Unit 2, P.O. Box 156, Midland, ON L4R 4K8

Phone: 800-563-3454, Fax: 800-567-4069 E-mail: [email protected]

ax-on-Demand: (Toll Free) 877-345-4329 http://www.eiki.com

LC-XG200

Talk to your EIKI Dealer... the "pro" in projection.

PROJECTORS

Full array of
connections:
just connect
& project.

CAUTION

LASER RADIATION–
DO NOT STARE INTO BEAM

MAX OUTPUT : 1mW
WAVE LENGTH : 660±20nm
CLASS II LASER PRODUCT

This warning is in response to requirements of the US State of Vermont and pertains to the
trace elements of mercury in the lamp of this projector. Lamp Contains Mercury. Do not put
in trash. Dispose-of-as Hazardous Waste, according to Local, State or Federal Laws.

Range of Wide angle and
telephoto lenses are avail-
able to satisfy a variety of
projection requirements.

Model LC-XG100

The LC-XG100 lacks the light-optimizing MicroLens Array,
resulting in a lower cost projector with lower brightness and contrast.
Brightness: 2500 ANSI Lumens / 2000 in Eco-Mode.
Contrast Ratio: 700:1.

INCLUDED ACCESSORIES:
Owner's Manual. AC Power Cord 10' (3.m), Lens Cover.
HD15 (VGA-type) Computer Input Cable. DVI~HD15 (VGA)
Adapter. Wireless Remote with Mouse Control and Laser Pointer
& Batteries (AAx2). Mouse cables for computer USB and
Serial/RS-232. Dust Cover.
OPTIONAL ACCESSORIES:
Replacement Lamp. DVI~HD15 (VGA) Input Cable. Soft Carry
Bag. Luggage-Style Carrying Case with Wheels and Telescoping
Handle and Detachable Computer Compartment. ATA-Style
Shipping Case with wheels and Telescoping Handle. Ceiling
Mount. Ceiling Post & Plate. 33’ (10m) Mouse Extension Cable.
Media Card Imager (Compact Flash Computerless Slide Show
System). Wireless Imager (Wi-Fi Content Delivery and Projector
Control System). Wideangle and Telephoto Lenses.

6.4

16.8"

11.9"

Wireless remote controls both
projector and mouse.

This warning is required by the
U.S. FDA and pertains to the
laser pointer in the wireless
remote control of this projector.
