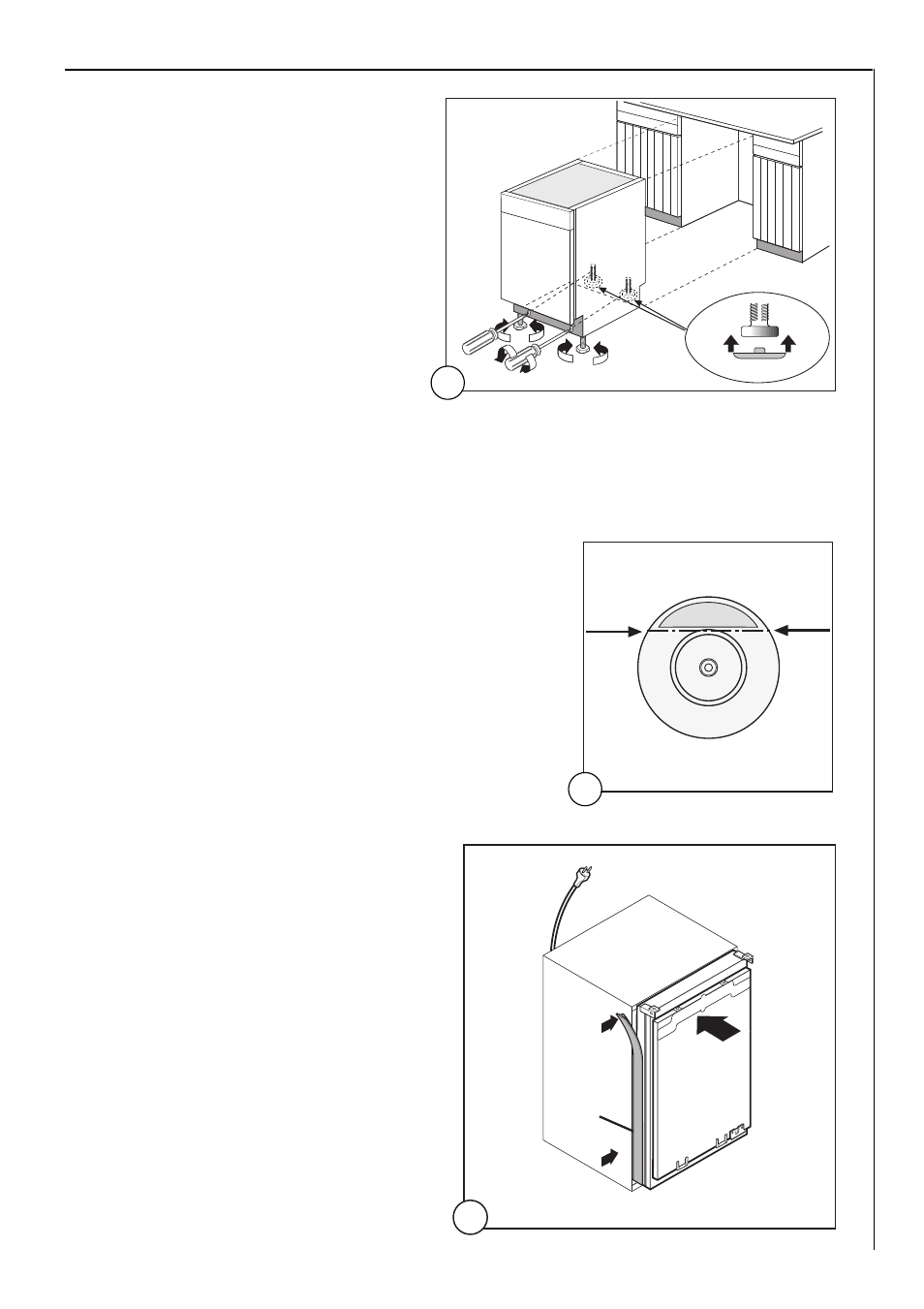

4. Push the appliance into
place. The plug socket nec-
essary for connection of
the appliance to the elec-
tricity supply should be
positioned, so that the plug
is not placed in the recess.
To adjust the height pro-
ceed as follows:
5. Loosen or tighten the two
front feet.
596
555
max
Li89
+
-
Installation
2
6. The rear feet are adjusted by turning the screw in the front kick plate
to the left or right.
II52
7. If necessary, pads are supplied for the
rear feet to make sliding the appliance
in and out of the recess easier. To fit the
pads, press them onto the rear feet.
If required, the dimensions of these
pads can be reduced by breaking them
where marked.
2/a
N.B. The joint cover (B) is to be
assembled after having
installed the appliance in the
recess.
3
1
2
B
11
