P/2 DA8 and P/2 DA12 • Introduction 1-3
Features of P/2 DA8 and P/2 DA12 Series
Bandwidth — 350 MHz (-3dB) RGB video bandwidth, fully
loaded, which is compatible with resolutions from VGA to
QXGA.
Wide range of compatible signal types and resolutions
—
all models are able to accept and distribute RGBHV, RGBS,
RGsB, RsGsBs, YUV (tri-level and bi-level sync), S-video and
composite video signals.
Power LED —
located on front panel. It has a dual purpose as
power indicator and input signal status.
Sync Impedance DIP Switches —
for solving laptop
compatibility issues, and reflection problems caused by long
cable runs.
Output Mute —
allows video and audio outputs from specific
channels or all channels to be muted.
Active Audio Buffering —
distributes and actively buffers
audio outputs in a balanced or unbalanced operation.
100 -24 0V 0.6 A
50- 60H z
INPUTS
VIDEO OU
TPUTS
P/2 DA8
A
2
4
6
8
1
3
5
7
AU DIO OUTPU
TS
MUT
E
L
R 7
L
R 8
L
R 5
L
R 6
L
R 3
L
R 4
L
R 1
L
R 2
1 3 5 7
2 4 6 8 A
PC
Local Monitor
Audio In
Video In
Projector
Plasma
Display
Sound
System

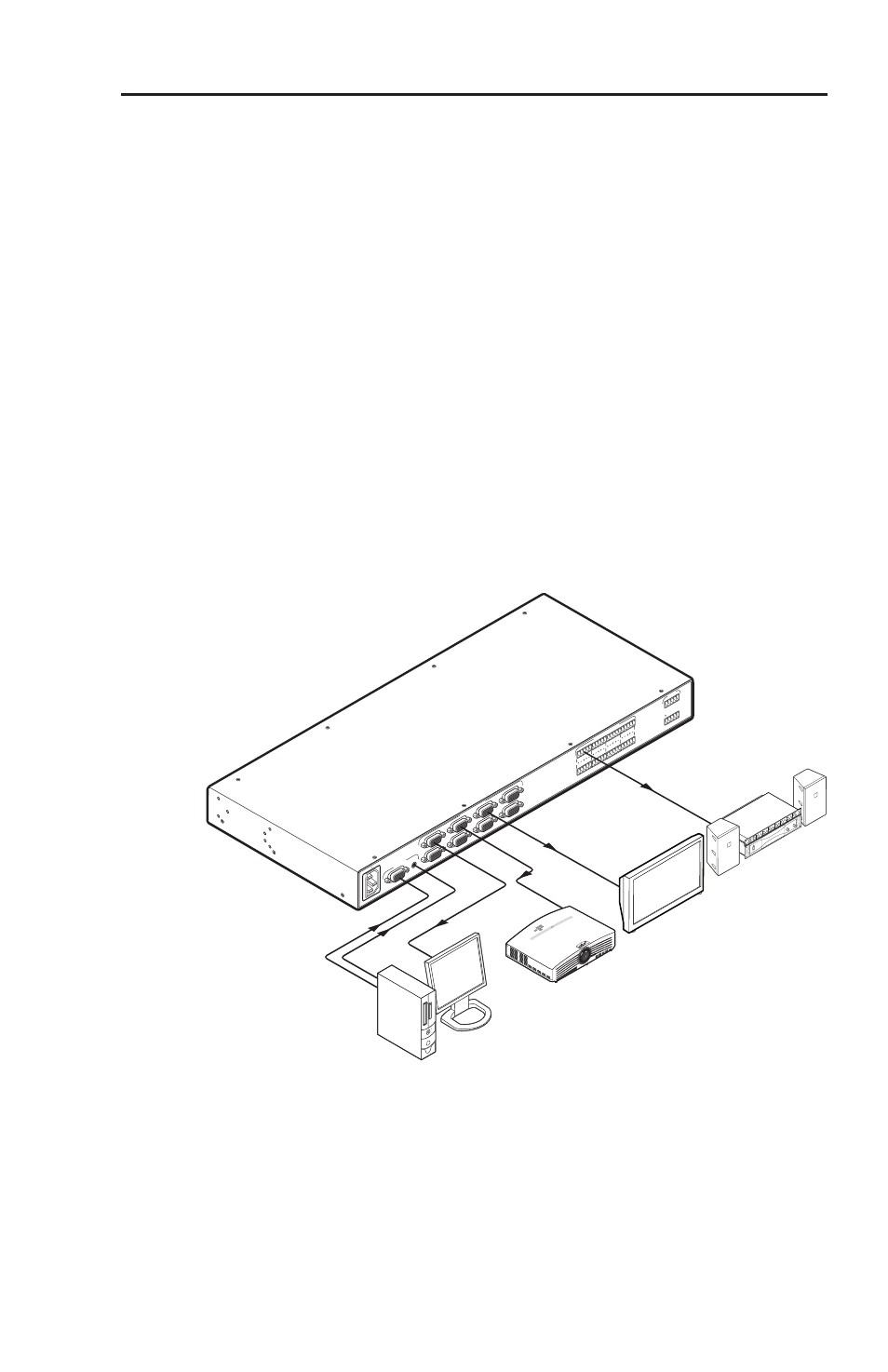

Figure 1-1 — A typical application for the P/2 DA8 A
