P/2 DA8 and P/2 DA12 • Installation and Operation
Installation and Operation, cont’d
2-6
Front Panel Features

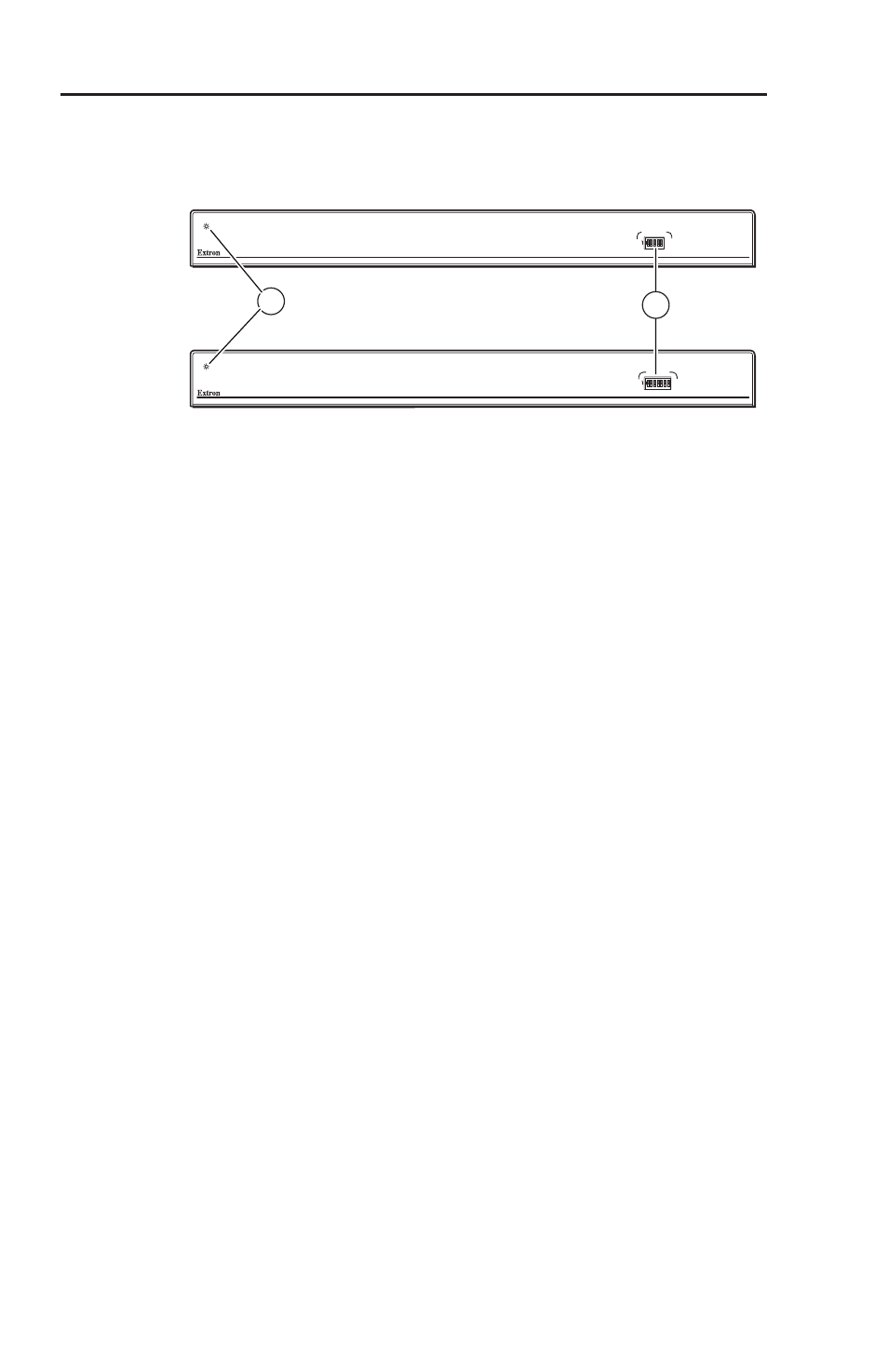

The front panels in the figure below show the P/2 DA8 series
(upper panel) and P/2 DA12 (lower panel).
P/2 DA12 Series
DISTRIBUTION AMPLIFIER
1 2 3 4 5
ON ON
OFF
SYNC IMPEDANCE
6 7
1 2 3 4 5 6 7
P/2 DA8 Series
DISTRIBUTION AMPLIFIER
1 2 3 4 5
ON ON
OFF
SYNC IMPEDANCE 1 2 3 4 5
1
2
Figure 2-3 — Front panel features
a
Power LED — indicates power and input signal status. When
the unit is receiving power, the LED is illuminated orange/
amber. When the unit is receiving both power and an input
signal, the LED is illuminated green.
b
Sync Impedance Switches — are DIP switches, which are used
to select the sync impedance on the input and outputs. (See
page 2-8 .)
