P/2 DA8 and P/2 DA12 • Installation and Operation
Installation and Operation, cont’d
2-4
Under-desk mounting
Mount the unit under a desk or podium using the optional
Extron MBU 149 kit (part #70-222-01) as follows:
1
. Remove rubber feet if these have been installed on the
bottom of the unit.
2 . Using the provided #8 screws, attach the mounting
brackets to the distribution amplifier (four screws on each
side, as shown below in figure 2).
#8 Screw
(4 Plcs)
Each Side
Mounting Screws
(2 Plcs)
Each Side

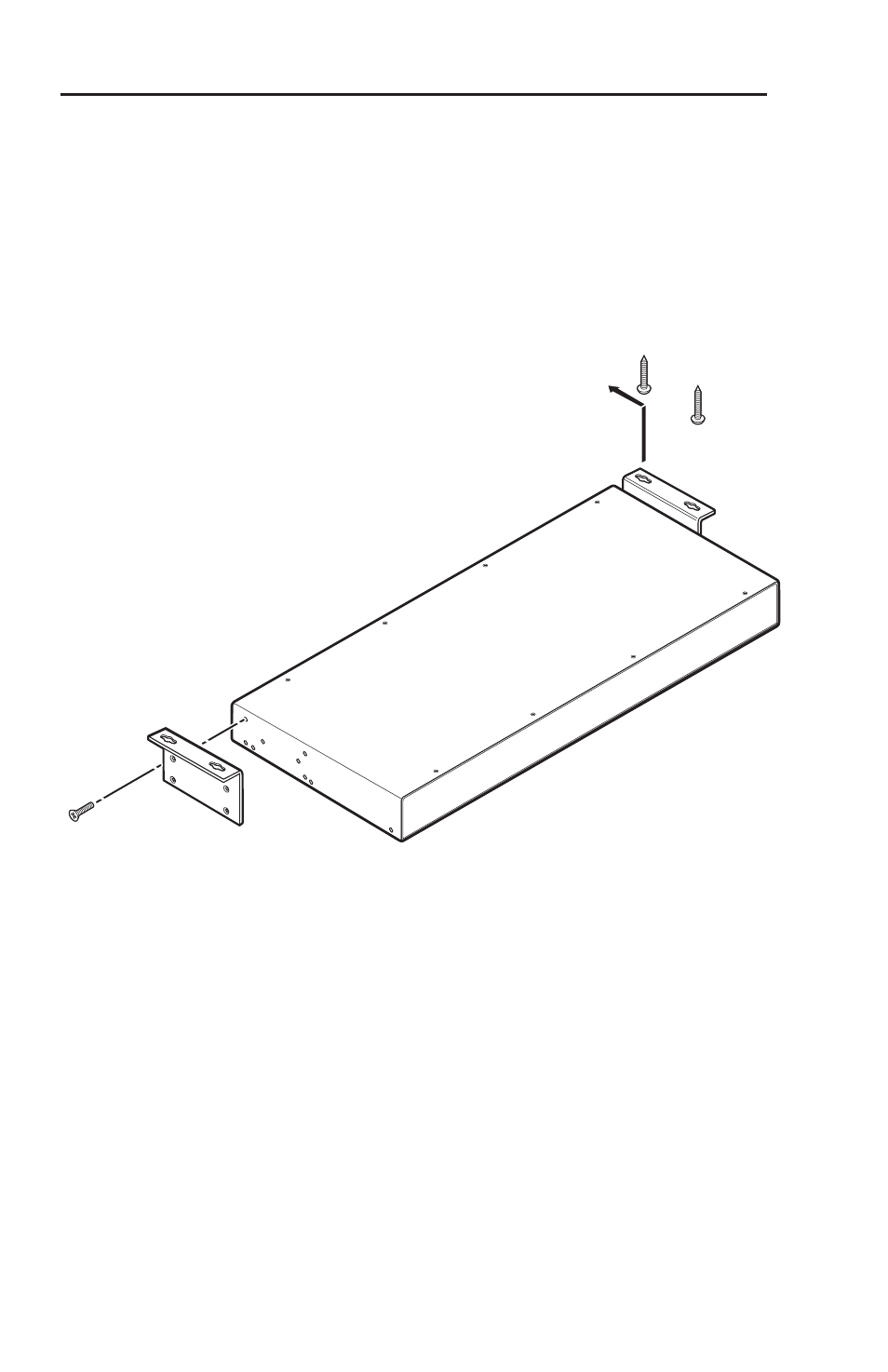

Figure 2-2 — Under-desk mounting the interface
3 . Hold the unit, with the brackets attached, against the
underside of the table or other furniture. Mark the location
of the holes in the bracket on the mounting surface.
4 . Drill four pilot holes, each 3/32" (2 mm) in diameter by
1/4" deep (6.3 mm) deep, into the mounting surface at the
marked screw locations.
5 . Insert #8 wood screws into the four pilot holes. Tighten
each screw into the mounting surface until just less than
1/4" (6.3 mm) of the screw head protrudes.
6 . Guide the slots in the mounting brackets over the
protruding screw heads.
7 . Slide the unit forward or backward by 3/8" (4.7 mm) so
that the brackets are supported by the screws. Tighten all
four screws to secure the unit in place.
