12

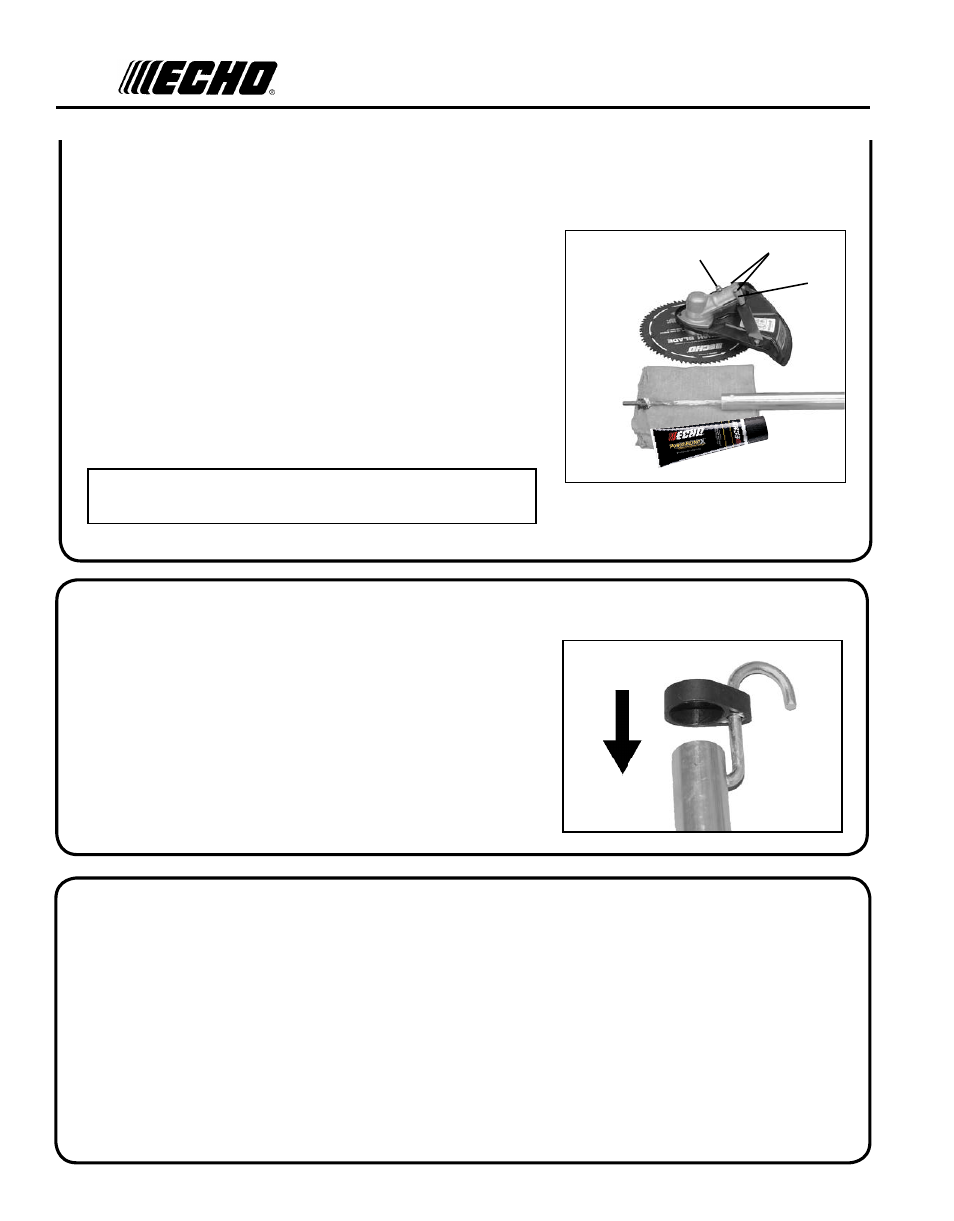

Drive Shaft (Lower)

1. Loosen two (2) screws (B) and remove center locating screw (C).

Pull gear box and shield from drive shaft housing.

2. Pull flexible cable from the drive shaft housing, wipe clean and

re-coat with a thin coating [15 ml (1/2 oz.)] grease.

3. Slide the flexible cable back in the drive housing. DO NOT get

dirt on the flex cable.

4. Install the gear housing and shield assembly.

IMPORTANT

Flat edge of washers (D) must be against drive shaft.

C

B

D

Model ------------------------------------------------------- 99944200600
Shaft Length ------------------------------------------------ 870 mm (34.3 in.)
Attachment Width ----------------------------------------- 280 mm (11 in.)
Attchment Height ------------------------------------------ 255 mm (10 in.)
Weight (dry) w/blade -------------------------------------- 1.5 kg. (3.32 lb.)
Drive Shaft -------------------------------------------------- 6.35 mm (1/4 in.) Flex Shaft
Rotating Direction ----------------------------------------- Counter-clockwise viewed from the top
Cutter Attachment ----------------------------------------- 80 Tooth, 203 mm (8 in.) Metal Brush Blade

s

Torage

Storage Hook Installation

1. Insert small end of hook into locating hole on attachment shaft.

2. Slide plastic cap onto end of attachment shaft.

s

peCIfICaTIons
