Page 11.4

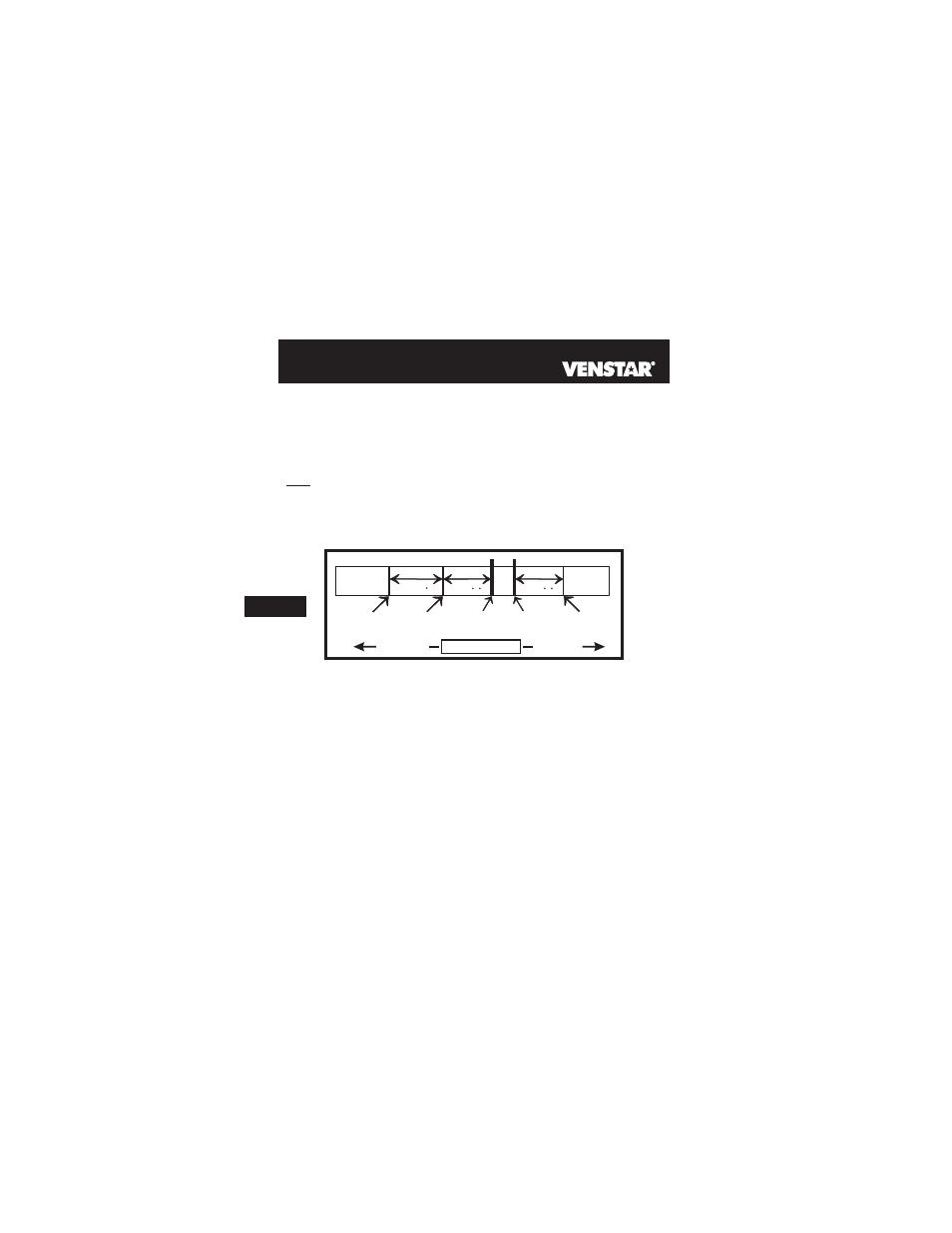

Adjusting the Deadband
MULTI-STAGE OPERATION - Controls up to two Heat and one Cool
stages.
The 2nd Stage of heat is
(A) The 1st Stage has been on for a minimum of two minutes.
(B) The temperature spread from the setpoint is equal to or greater
than: the setpoint
page), plus two degrees.
turned on when:
plus the 1st stage deadband (step #15, next
And
Heat
Setpoint
Cool
Setpoint
Deadband Deadband Deadband
db 1 db 1 db 2
(adj. 1-6 ) (adj. 1-6 )
1st Stage
turn on
2nd Stage
turn on
1st Stage
turn on
Heating Cooling
TEMPERATURE DECREASE INCREASE
(fixed 2 )
11
