WEDGE INTERFACE CONNECTION
CAUTION
Before proceeding with this connection, configure STAR

Modem™
software parameters through the RS232 interface and then set the
hardware jumper position (see "STAR
 Modem™ Configuration").

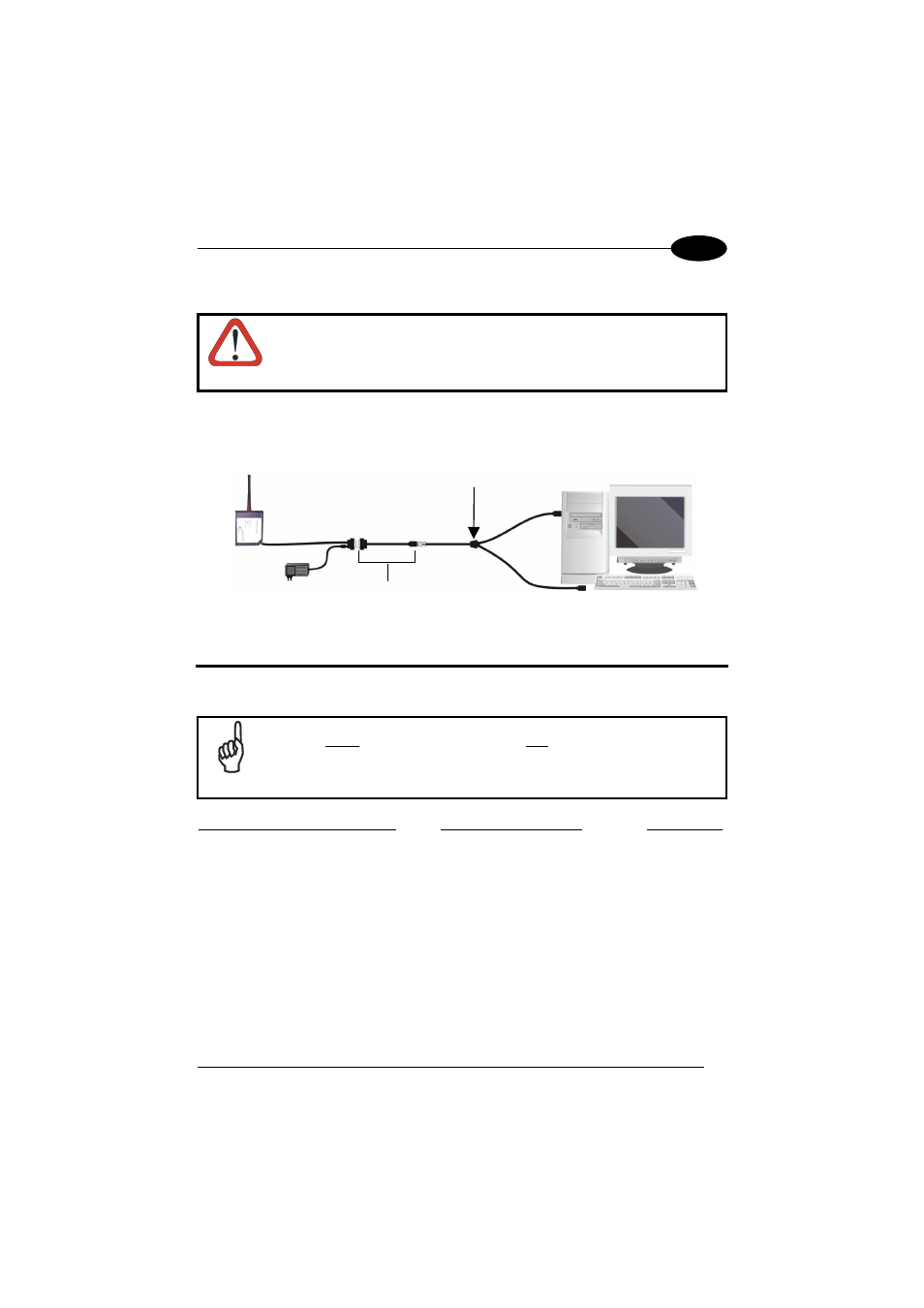

For Wedge interface connection, it is necessary to use the adapter as shown in the
following figure:
STAR    Modem™ INITIAL SETUP
For a correct STAR
Modem™ configuration keep in mind the following guidelines.
NOTE
When using the modem for the first time, set the desired
STAR
 Modem™ address via RS232 serial interface, since its factory
default address is "Undefined".
For Stand Alone configurations using Wedge/Pen Emulation interface connections,
set all parameters via RS232 interface using either the DL Sm@rtSet software
program or sending configuration strings to STAR
Modem™. Then, set the correct
hardware jumper position as indicated in the table given in "STAR Modem™ Setup
For Stand Alone Mode" (see also the figure below).
For changing any configuration parameter in Wedge/Pen Emulation interface
connections, send the new configuration commands via radio using Datalogic RF
devices. Otherwise, set the jumper in the RS232 position (RS232 communication
parameters are set to default values) to send the configuration strings to
STAR
Modem™ via serial interface and set the jumper back in the Wedge/Pen
Emulation position to enable this kind of connection.
STAR Modem™ Adapter
90ACC1859
Datalogic Standard Wedge Cable
