Back the adjustment screw assy out until the upper half of the saddle comes in
contact with the main housing.
MACHINING SEQUENCE
Place the pipe or tube into the saddles.
Verify a clearance of 1/8” (3 mm) between the tool bit(s) and the pipe or tube face as
held by the saddles.
Tighten the upper saddle by turning the adjustment screw assy to secure the pipe or
tube once the proper clearance has been verified.

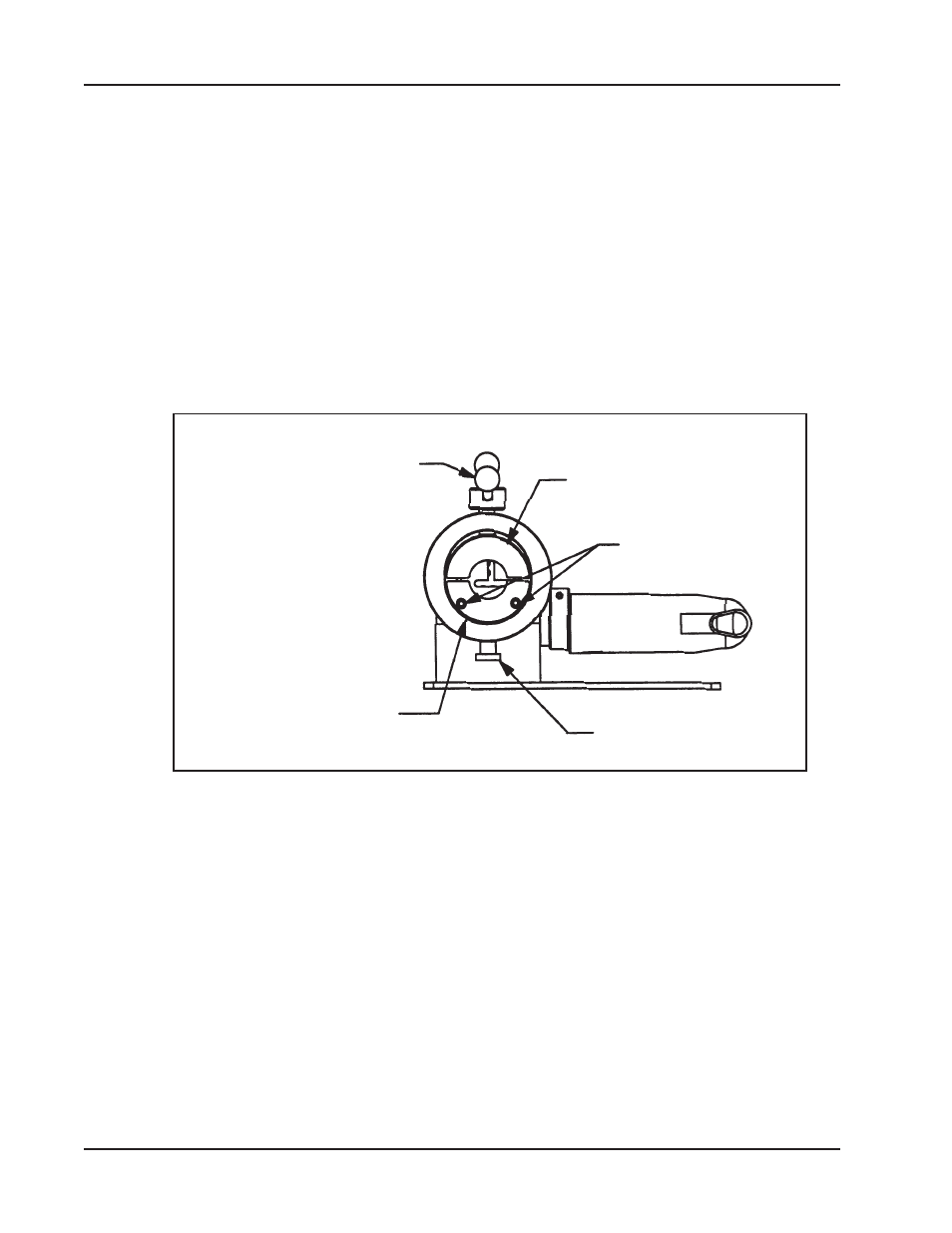

Clamping Screw
Assembly
Adjust Knob
Lower Saddle Half
Upper Saddle Half
Cap Screws
