Refrigerator Handle Kit Installation Instructions

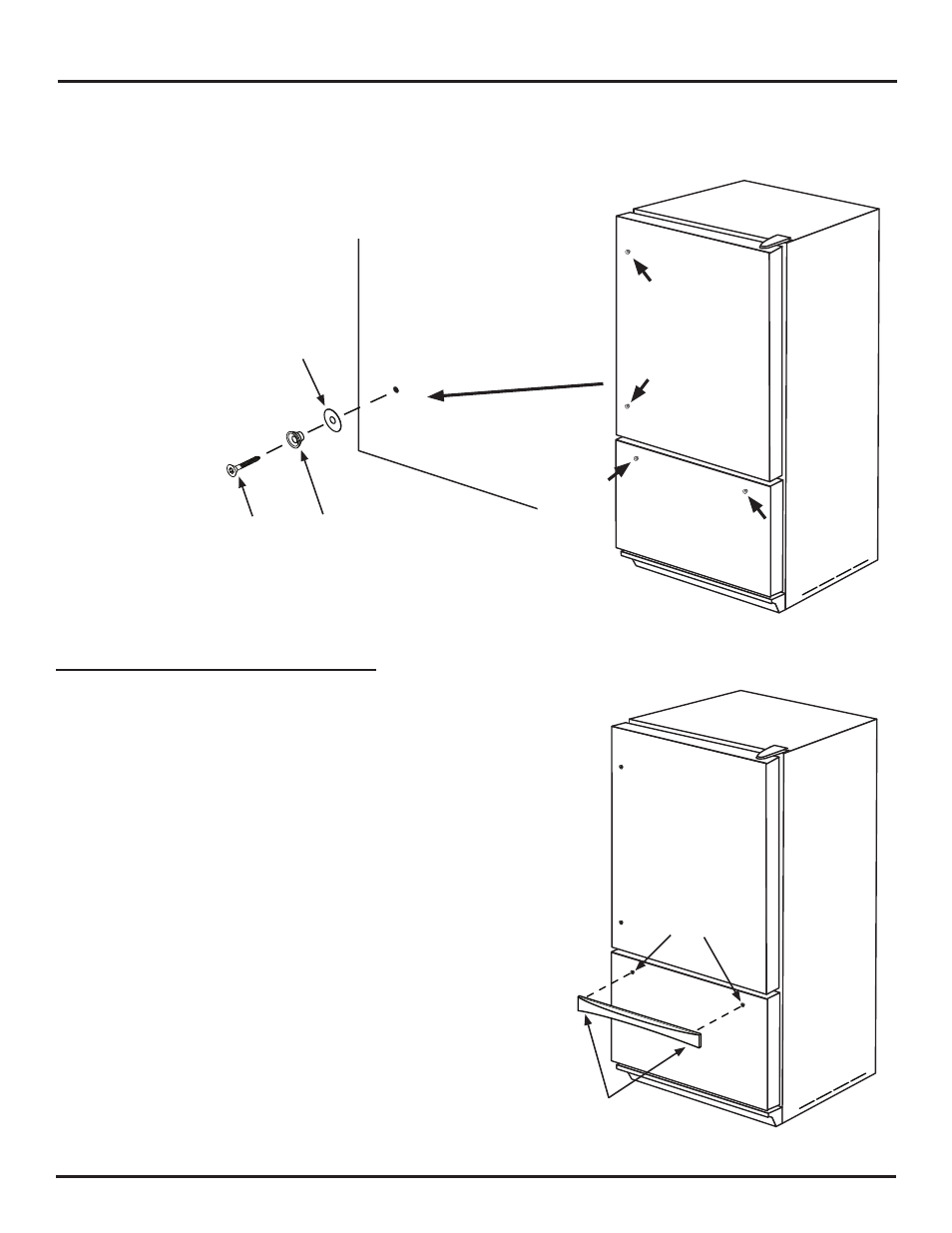

STEP 2: Reinstall the the screws and studs removed in step 1, inserting the provided plastic wash-
ers between the base of the studs and the refrigerator doors as shown.
Handle Mounting
Stud Locations
Mounting Stud
Plastic Washer
Screw
Handle Mounting
Studs
Set Screw Holes
Bottom (Freezer) Handle Installation
STEP 3: Find the smallest of the two handles in the kit
box.
STEP 4: Mount the handle to the bottom drawer by
sliding the holes on the back over the handle
mounting studs on the refrigerator. Make sure
the set screw holes on the handle are facing
toward the bottom. You may need to loosen
the set screws using a 3/32” Allen wrench to
allow the handle to slide into place.
STEP 5: Carefully tighten the set screws into place us-
ing the 3/32” Allen wrench. Be careful not to
scratch the finish.
STEP 6: Check to make sure the handle is firmly
attached.
Model EF36RNFSS
shown
