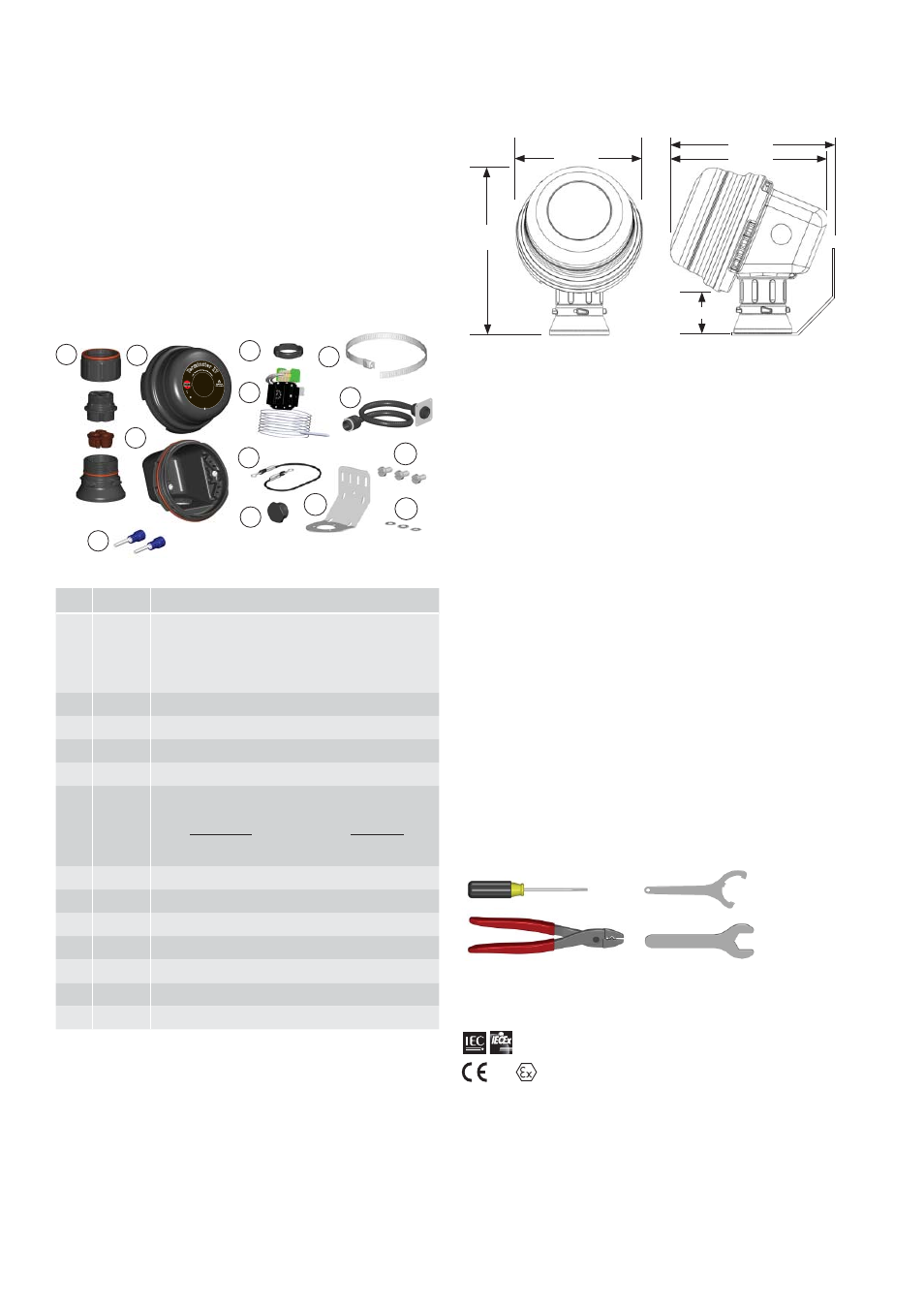

Thermon ZT-MI-WP Terminator - Manual (Page 2)

2
Tools Required . . .
Certifi cations/Approvals . . .
1725 II 2 GD Ex db eb IIC T5-T6, Ex tb IIIC T100°C-T85°C FM 10ATEX0058X
IP66 -60°C  Ta  +50°C T5, 100°C; -60°C Ta +40°C T6, 85°C
Ordinary & Hazardous Locations
FMG 10.0022X Ex db eb IIC T5-T6, Ex tb IIIC T100°C-T85°C
Kit Contents . . .
1 2
4
3
5
9
Dimensions . . .
Terminator TM ZT-MI-WP
INSTALLATION PROCEDURES
10
8
12
Item Quantity Description
1 1
Expediter Assembly
Support Cap with O-Ring
Threaded Grommet Compressor
Grommet
Support Base with O-Ring
2 1 Junction Box Lid
3 1 Junction Box Base with O-Ring and M25 Dust Cap
4 1 Nut
5 1 Banding
6 1
Thermostat w/ Terminal Blocks
(Refer to terminal specifi cations for maximum allowable wire size)
Thermostat Type Control Range
ZT-C-300 0 ° C to +300 ° C
ZT-C-500 20 ° C to +500 ° C
7 1 Capillary Armouring w/ Glands
8 1 Junction Box Cord
9 2 Blind Plug M20
10 1 Bracket
11 3 Screws
12 3 Washers
13 4 Wire Pins
Terminator-LN-Tool
(order separately) 3 mm
8 mm
28 mm
33 mm
Warnings . . .
• Due to the risk of electrical shock, arcing and fi re caused
by product damage or improper usage, installation or
maintenance, a ground-fault protection device is required.
• Installation must comply with Thermon requirements
(including form PN 50273U for Ex systems) and be installed
in accordance with the regulations as per the norm EN IEC
60079-14 for hazardous areas (where applicable), or any
other applicable national and local codes.
• Component approvals and performance ratings are based
on the use of Thermon specifi ed parts only.
• De-energize all power sources before opening enclosure.
• Avoid electrostatic charge. Clean only with a damp cloth.
• Keep ends of heating cable and kit components dry before
and during installation.
• Minimum bending radius of heating cable is 6 times the cable
outer diameter.
• Individuals installing these products are responsible for
complying with all applicable safety and health guidelines.
Proper Personal Protective Equipment (PPE) should be
utilized during installation. Contact Thermon if you have any
additional questions.
Ter
m inato
r Z
T
IP66 -45°C  Ta  + 55°C
For use as an adjustable co ntro l th erm os ta t
wi th The rmon heating ca ble s ys te m s
II 2 G & D E Ex ed I I C T5
0539
DEMKO 02A TEX132552X
11
7 1 7 2 5 II 2 G D E x db e b IIC T5-T6, Ex tb IIIC T 100 °C- T8 5° C, F M 1 0A TE X 0 0 5 8 X
IEC Ex F MG 1 0.0022X Ex db eb I IC T 5-T 6, Ex tb II IC T 1 0 0 °C -T 8 5 °C
PN 27656
T er
minat or Z
T
Fo r u se as an adj ustable control/lim iter t her m os tat
IP 6 6 -6 0° C ≤ Ta ≤ + 50°C T5, 100°C; -60°C ≤ Ta ≤ +4 0° C T6 , 8 5 °C
6
Wire Pins (per MI cable cold lead,order separately)
13
Receiving, Storing and Handling . . .
1. Inspect materials for damage incurred during shipping.
2. Report damages to the carrier for settlement.
3. Identify parts against the packing list to ensure the proper
type and quantity has been received.
4. Store in dry location.
The following installation procedures are suggested guidelines
for the installation of the Terminator ZT-MI-WP Kit.
190mm
50mm
155mm
206mm
205mm
