3

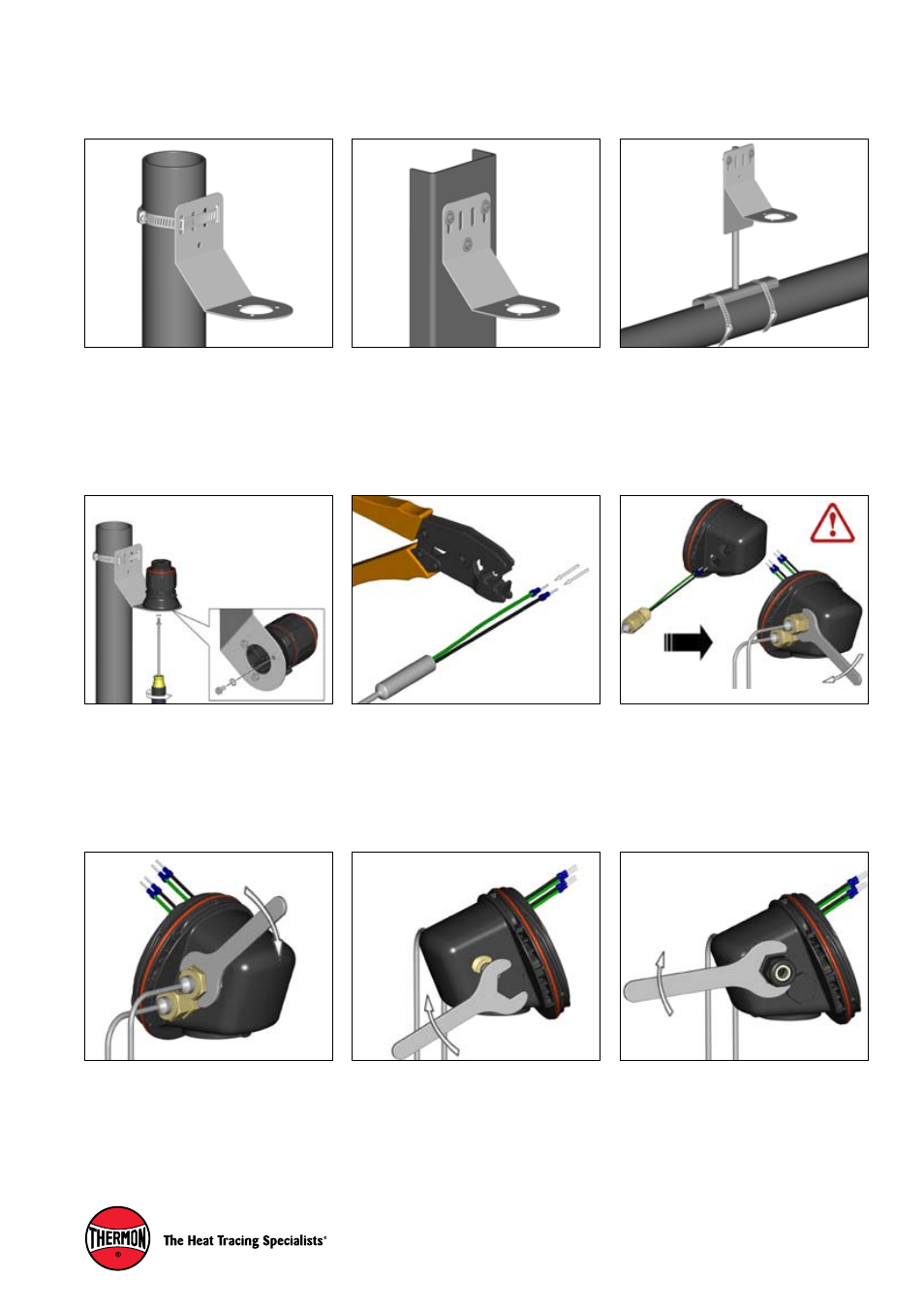

1a.
Mounting Method 1: Secure wall mount brack-
et to mounting surface using pipe band.
2.
Mount expediter to bracket using M5 screws
and lock washers.
1b.
Mounting Method 2: Secure wall mount
bracket to mounting surface using screws,
washers, and nuts (user supplied)
1c.
Mounting Method 3: Secure XP-1 mounting
bracket to pipe using pipe bands. Secure wall
mount bracket to XP-1 using screws, washers,
and nuts (user supplied)
5.
Center cold lead sleeve inside cable gland.
Tighten cable glands until ferrule begins to
make contact with cold lead sleeve and cold
lead sleeve cannot be moved by hand. Tighten
cable gland 1/8 additional turn or to a torque
value of 16 Nm (142 lb-in).
6.
Install M20 blind plug in remaining M20
threaded entry (if necessary). Additional M20
blind plug (order M20-B-EXE) will be required
if only installing one gland.
7.
Install M25 power gland in M25 threaded en-
try. For in-line splice or 3 phase wye connec-
tion, install M25 blind plug (order M25-B-EXE
separately) instead of M25 power gland.
3.
Crimp appropriate wire pins (2.5 mm 2 or 6
mm 2 ) on MI cable cold lead wires.
4.
Route MI cable cold leads through M20
threaded entries. Screw cable glands into
junction box. Do not overtighten to ensure
o-ring is not damaged during installation.
Terminator
TM
ZP-MI-WP
INSTALLATION PROCEDURES
