15

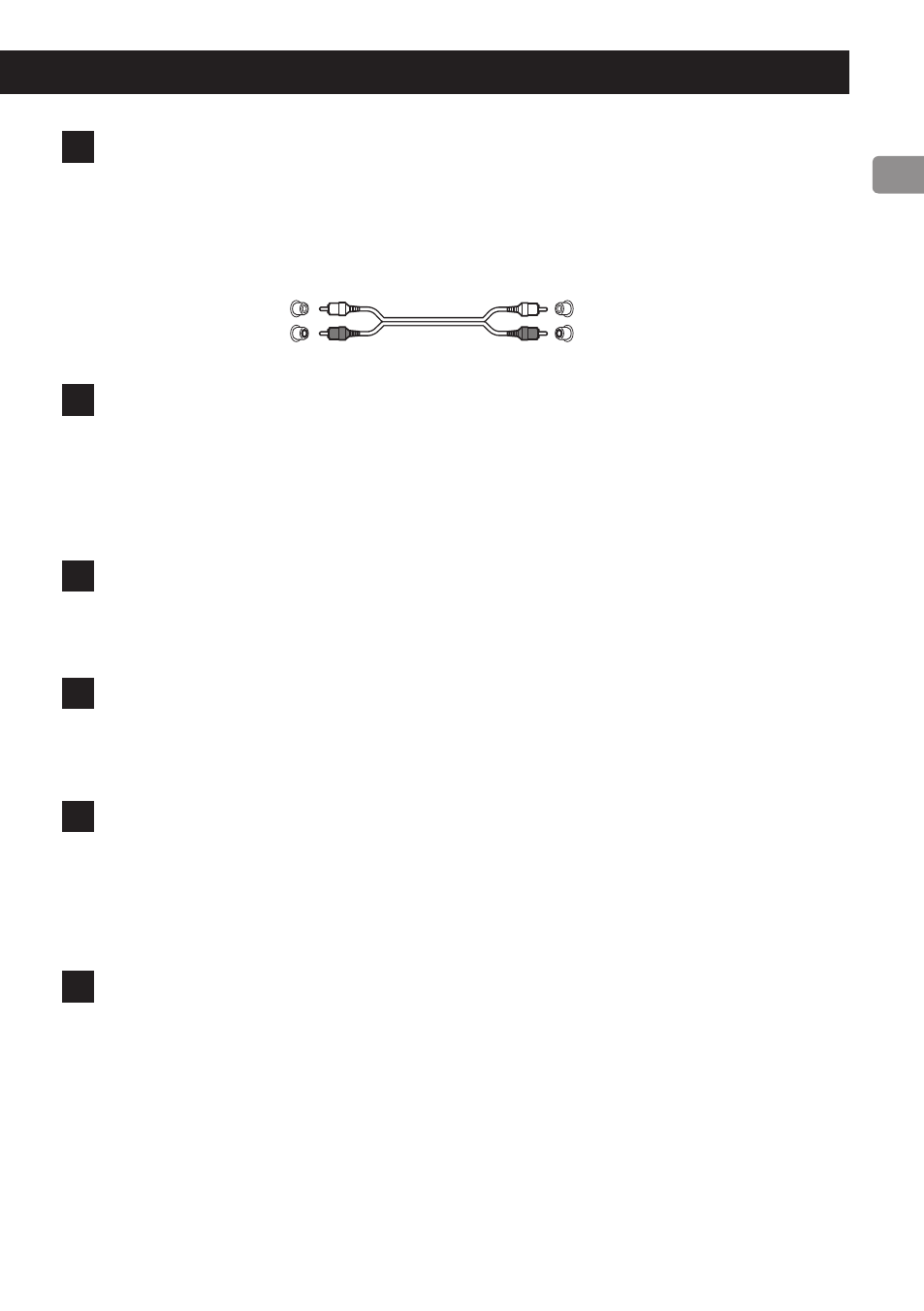

A
Analog audio input jacks (LINE 1, LINE 2)
Use these to input 2-channel analog audio signals. Connect an audio output device such as a
cassette deck or CD player to these jacks using commercially-available RCA cables.
Connect the R jack of this unit to the right (R) jack of the audio output device and the L jack of
this unit to the left (L) jack of the audio output device.
White (L)
Red (R)
White (L)
Red (R)
B
USB input port
Connect to the USB port of a computer to input digital audio from it.
Use a commercially-available USB cable.
o Install the dedicated TEAC driver software on the computer before connecting the unit (see
page 23).
C
Maintenance connector (UPDATE)
This connector is only for maintenance use. Unless directed by our service department, do not
connect anything to it.
D
SUBWOOFER OUT jack
If you want to use a subwoofer, connect it to this terminal.
o The VOLUME knob on the front unit controls the output level.
E
DIGITAL IN audio input connectors (COAXIAL, OPTICAL)
Input digital audio. Connect to the digital audio output connectors of digital audio output
devices.
COAXIAL: RCA digital coaxial cable
OPTICAL: Optical digital cable (TOS)
F
Power cord connector (~IN)
Connect the supplied power cord to the power cord receptacle.
After all other connections are complete, connect the power cord's plug to a wall outlet.
V
Do not use any power cord other than the one included with this unit. Use of other
power cords could result in fire or electric shock. Unplug the power cord when you
are not going to use the unit for several weeks.
