QSDL503AD USER MANUAL
3 | P a g e
(Picture 4)
(Picture 3)

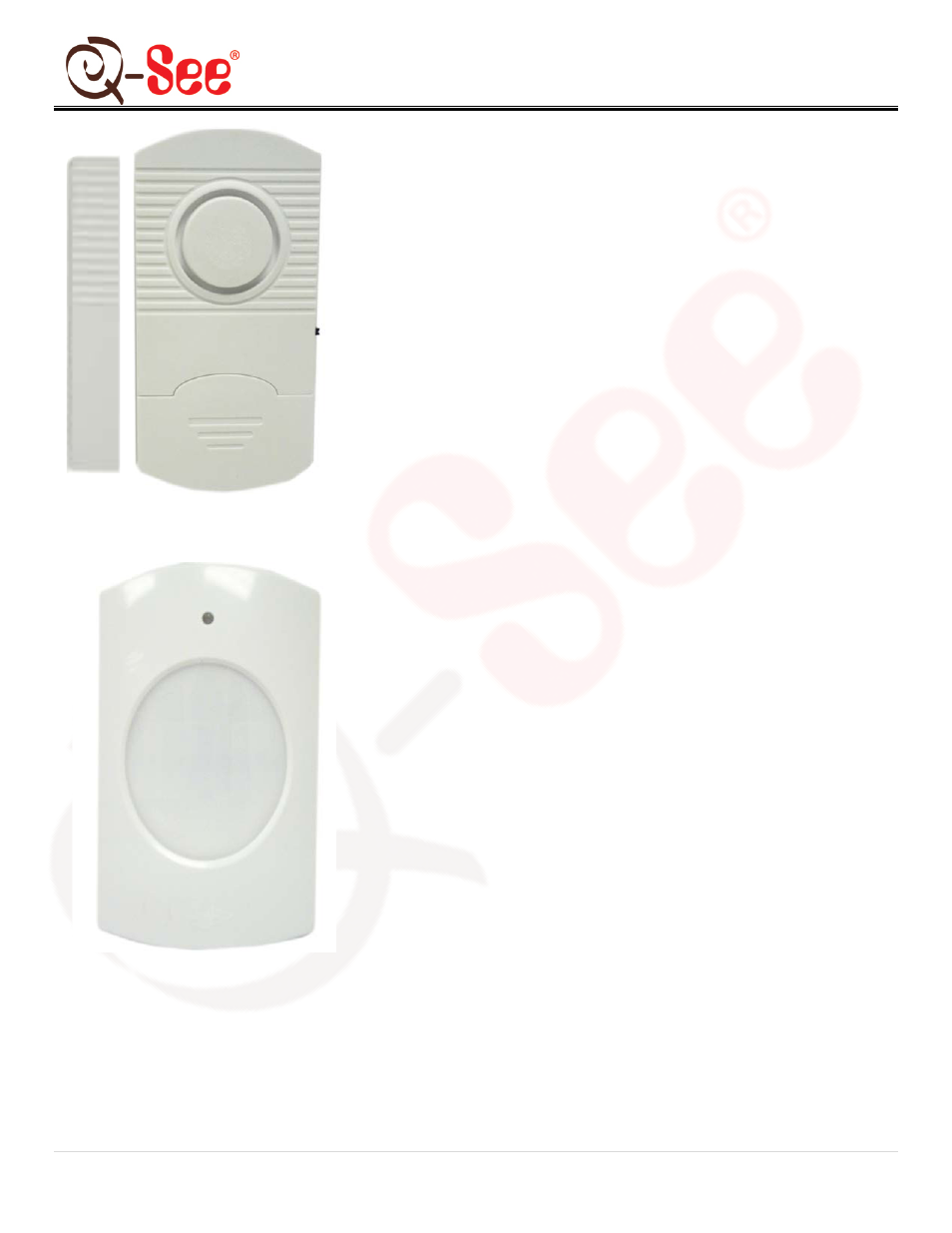

4.3: Magnetic Window/Door Sensor Alarms
1. Position the Magnetic Window/Door Sensor Alarm (Picture 3)
along the conjoining edges of any window or door you wish to
protect using heavy duty double-sided adhesive tape. It is
recommended to use your Magnetic Window/Door Sensor
Alarms on entries and windows that are most susceptible to
break-ins and vulnerable to intruders.
2. To ensure maximum performance of your Magnetic Window/Door
Sensor Alarms, position the edge of the alarm transmitter no
more than 10mm away from the edge of the magnet.
4.4: Infrared Sensor (with Mounting Bracket)
1. Remove the battery compartment cover on the back of the
Infrared Sensor, insert 4 “AA” alkaline batteries and replace the
battery compartment cover.
2. Hang the Mounting Bracket (using the included hardware) at
approximately 3-5 feet high in an area that is free from
obstruction.
3. Attach the Infrared Sensor (Picture 4) to the Mounting Bracket
after you have decided on your desired location and adjust the
directional angle to a degree that maximizes the scope of the
Infrared Sensor. It is suggested that you keep the area around
your Infrared Sensor clear of obstacles and avoid placing it in
direct sunlight.
