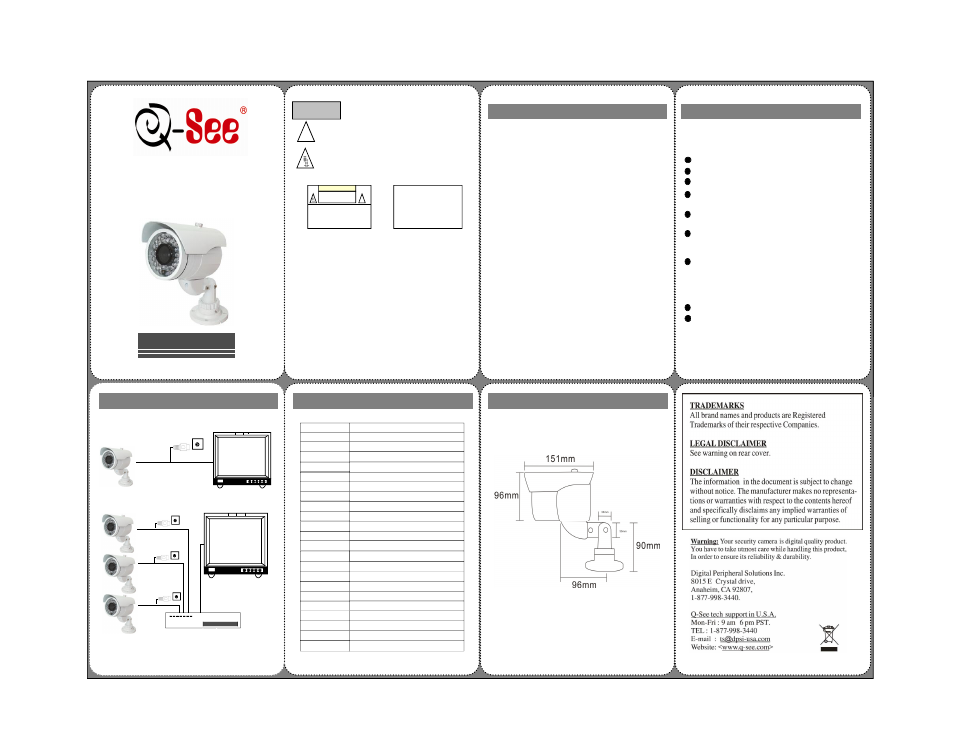

Q-See QSDS1349D - Manual

MONITOR
IR Waterproof Varifocal Digital
Color CCD Camera
CCTV SYSTEM
This equipment has been tested and found to comply with the limits for a
Class A digital device.These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated
in a commercial environment. This equipment generates,uses,and can
radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference
to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense. Warning-
Caution Any changes or modifications in construction of this device which are not
expressly approved by the party responsible for compliance could void
the users' authority to operate the equipment.
（ （ （ （a） ） ） ）Do not attempt to disassemble the camera.
To prevent electric shock, do not remove screws or covers.
There are no user serviceable parts inside. Ask a qualified service
person for servicing.
（ （ （ （b） ） ） ）Handle the camera with care.
Do not abuse the camera. Avoid hitting, shaking, etc.
The camera could be damaged by improper handling or storage.
（ （ （ （c） ） ） ）Do not use strong or abrasive detergents when cleaning the
camera body.
Use a dry cloth to clean the camera when dirty .
In case the dirt is hard to remove, use a mild detergent and wipe
gently.
（ （ （ （d） ） ） ）Do not use the camera beyond the prescribed voltage range.
Ensure the input power source voltage is conforms to the local
city voltage. Higher voltage could fuse the power supply, Lower
voltage could cause abnormal performance.
（ （ （ （e） ） ） ）Do not aim strong light directly into the camera, it will prevent
the camera from producting effective video.
A. PRECAUTIONS
：
THIS CCTV COLOR CCD CAMERA Introduces advanced CCD and digital
technology, and offers customers a high quality and high resolution picture.
Has a high-resolution 1/3" CCD image sensor with image resolution of
480TVL
Automatic white balance function enables the camera to produce correct and
nature colors in any light conditions, indoor or outdoor, by automatically
adjusting the white balance point.
The shell uses high-quality aluminum material.
The surface uses a high preservative adhesive.
The high performance digital-processing chip greatly improves the signal-to-
noise ratio and distortion
B. FEATURES
：
The illumination distance referred to in this manual is indoor night view
distance. The infrared transmission will be affected if there is high humidity or
smoke in the air. Naturally the viewable distance will be shortened and the
night view effection will be reduced
when the objects are lawn, trees or
anything without reflecting ability.
All seams are air tight (Suitable for outdoors and wet weather).
www.q-see.com
WARNING
To prevent fire or shock hazard do not expose the insides
of the unit to rain or moisture.
!
This symbol alerts the user to the presence of important operating and
maintenance issues according to the manual.
SA 1966
This symbol alerts the user to the presence of uninsulated dangerous
voltage within the product's enclosure that may be of sufficient magnitude
to constitute a risk of electric shock .
SA 1965
CAUTION:
To prevent electric shocks and
risk of fire hazards, only use the power
supply specifled for unit.
CAUT ION: T O REDUCE T HE RISK OF ELECT RIC SHOCK DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PART S
INSIDE REFER SERVICING T O QUALFIED SERVICE
PERSONINEL
CAUTION:
RISK OF ELECTRIC SHOCK DO NOT OPEN !
MODEL: QSDS1349D
With wall bracket.
Camera cable runs through bracket
MONITOR
电源
DVR
监视器 电源
摄像机
E. DIMENSIONS
：
IR Waterproof Varifocal Digital
Color CCD Camera
CCTV SYSTEM
This equipment has been tested and found to comply with the limits for a
Class A digital device.These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated
in a commercial environment. This equipment generates,uses,and can
radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference
to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense. Warning-
Caution Any changes or modifications in construction of this device which are not
expressly approved by the party responsible for compliance could void
the users' authority to operate the equipment.
（ （ （ （a） ） ） ）Do not attempt to disassemble the camera.
To prevent electric shock, do not remove screws or covers.
There are no user serviceable parts inside. Ask a qualified service
person for servicing.
（ （ （ （b） ） ） ）Handle the camera with care.
Do not abuse the camera. Avoid hitting, shaking, etc.
The camera could be damaged by improper handling or storage.
（ （ （ （c） ） ） ）Do not use strong or abrasive detergents when cleaning the
camera body.
Use a dry cloth to clean the camera when dirty .
In case the dirt is hard to remove, use a mild detergent and wipe
gently.
（ （ （ （d） ） ） ）Do not use the camera beyond the prescribed voltage range.
Ensure the input power source voltage is conforms to the local
city voltage. Higher voltage could fuse the power supply, Lower
voltage could cause abnormal performance.
（ （ （ （e） ） ） ）Do not aim strong light directly into the camera, it will prevent
the camera from producting effective video.
A. PRECAUTIONS
：
THIS CCTV COLOR CCD CAMERA Introduces advanced CCD and digital
technology, and offers customers a high quality and high resolution picture.
Has a high-resolution 1/3" CCD image sensor with image resolution of
480TVL
Automatic white balance function enables the camera to produce correct and
nature colors in any light conditions, indoor or outdoor, by automatically
adjusting the white balance point.
The shell uses high-quality aluminum material.
The surface uses a high preservative adhesive.
The high performance digital-processing chip greatly improves the signal-to-
noise ratio and distortion
B. FEATURES
：
The illumination distance referred to in this manual is indoor night view
distance. The infrared transmission will be affected if there is high humidity or
smoke in the air. Naturally the viewable distance will be shortened and the
night view effection will be reduced
when the objects are lawn, trees or
anything without reflecting ability.
（b）One monitor system with two or more cameras：
（a）One monitor system with one camera：
Video monitor
AC ADAPTER
CAMERA
Video monitor
AC ADAPTER CAMERA
C. CONNECTION
：
COLOR 1/3" SONY CCD
NTSC:811(H) 508(V) PAL:795(H) 596(H)
480TVL
Internal
Interlace 2:1
NTSC: 1/60s~1/100000s
ON/OFF
0.45
1.0Vp-p 75Ω BNC
0Lux(When IR LEDs on)
IP66
850nM
30m
Day/Night
φ 8 LED, 36pcs
On/Off
On/Off
Manual 4-9mm, adjustable from outside
DC12V 1000mA
<5.5W(When IR LEDs on)
33.8 oz (960g)
-10℃ ～+50℃ (14 F to 122 F) RH 95% Max
≥50dB
Scanning system
Sync System
Electronic Shutter
White Balance
Image Sensor
Effective Pixels
Horizontal Resolution
IR LEDs Wavelength
Waterproof level
IR LEDs Distance
IR LEDs Amount
S/N Ratio
Gamma
Video Output
Usable Illumination
Power Supply
Lens
Power Consumption
Operating Temp
AGC
IR LEDs Auto ON/OFF
BLC
Weight
D. SPECIFICATIONS
：
All seams are air tight (Suitable for outdoors and wet weather).
www.q-see.com
22m (73ft)
WARNING
To prevent fire or shock hazard do not expose the insides
of the unit to rain or moisture.
!
This symbol alerts the user to the presence of important operating and
maintenance issues according to the manual.
SA 1966
This symbol alerts the user to the presence of uninsulated dangerous
voltage within the product's enclosure that may be of sufficient magnitude
to constitute a risk of electric shock .
SA 1965
CAUTION:
To prevent electric shocks and
risk of fire hazards, only use the power
supply specifled for unit.
CAUT ION: T O REDUCE T HE RISK OF ELECT RIC SHOCK DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PART S
INSIDE REFER SERVICING T O QUALFIED SERVICE
PERSONINEL
CAUTION:
RISK OF ELECTRIC SHOCK DO NOT OPEN !
MODEL: QSDS1349D
With wall bracket.
Camera cable runs through bracket
