Sundance SMT6001 - Manual (Page 5)

3.3.1 The ROM contains valid information.
Once all of the analysis checks (including cyclic redundancy checks, CRCs, of the
data) have been passed, SmtFlash will display a summary of the ROM's contents, as
in the following example.

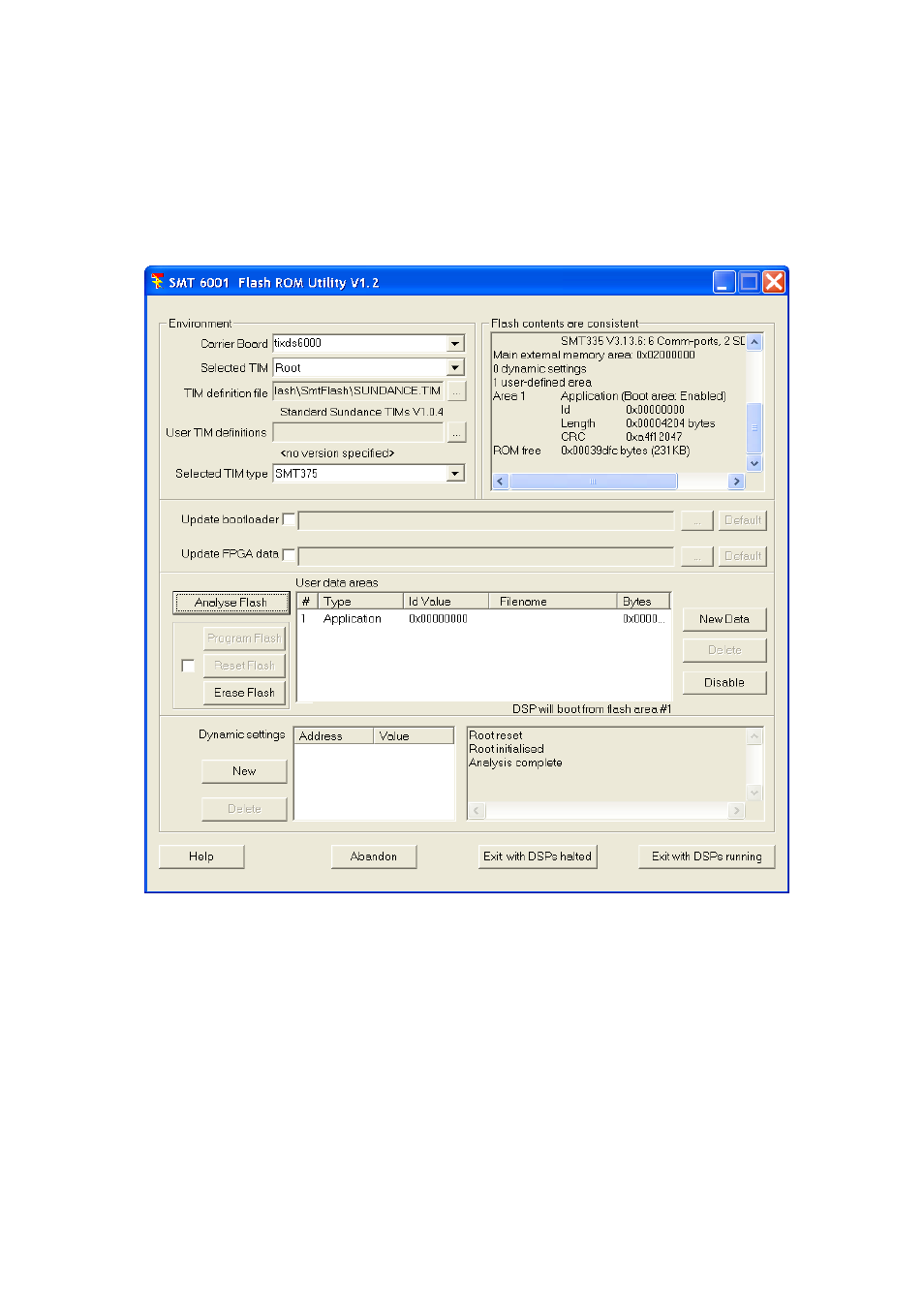

Here, the window to the top right shows the summary information, while the window
at the bottom right shows a report of the activity of the utility. Both these widows
may be scrolled.
The "User data areas" display summarises the information currently held in the user
data logical section. In this example, the ROM has been programmed with one area
which contains a Diamond application. Below this display is an indication of what
will happen when the TIM comes out of reset: "DSP will boot from flash area #1",
meaning that the Diamond application will be loaded and executed after reset.
