Dynamic Settings

The bootloader can perform up to eight assignments of 32-bit values to memory
locations at absolute addresses. This facility is usually only needed in unusual
circumstances, such as to modify the internal comport connections on some multi-
processor TIMs.

These assignments are made immediately after the FPGA has been configured but
before any user code is loaded.

4.1

Adding a Dynamic Setting

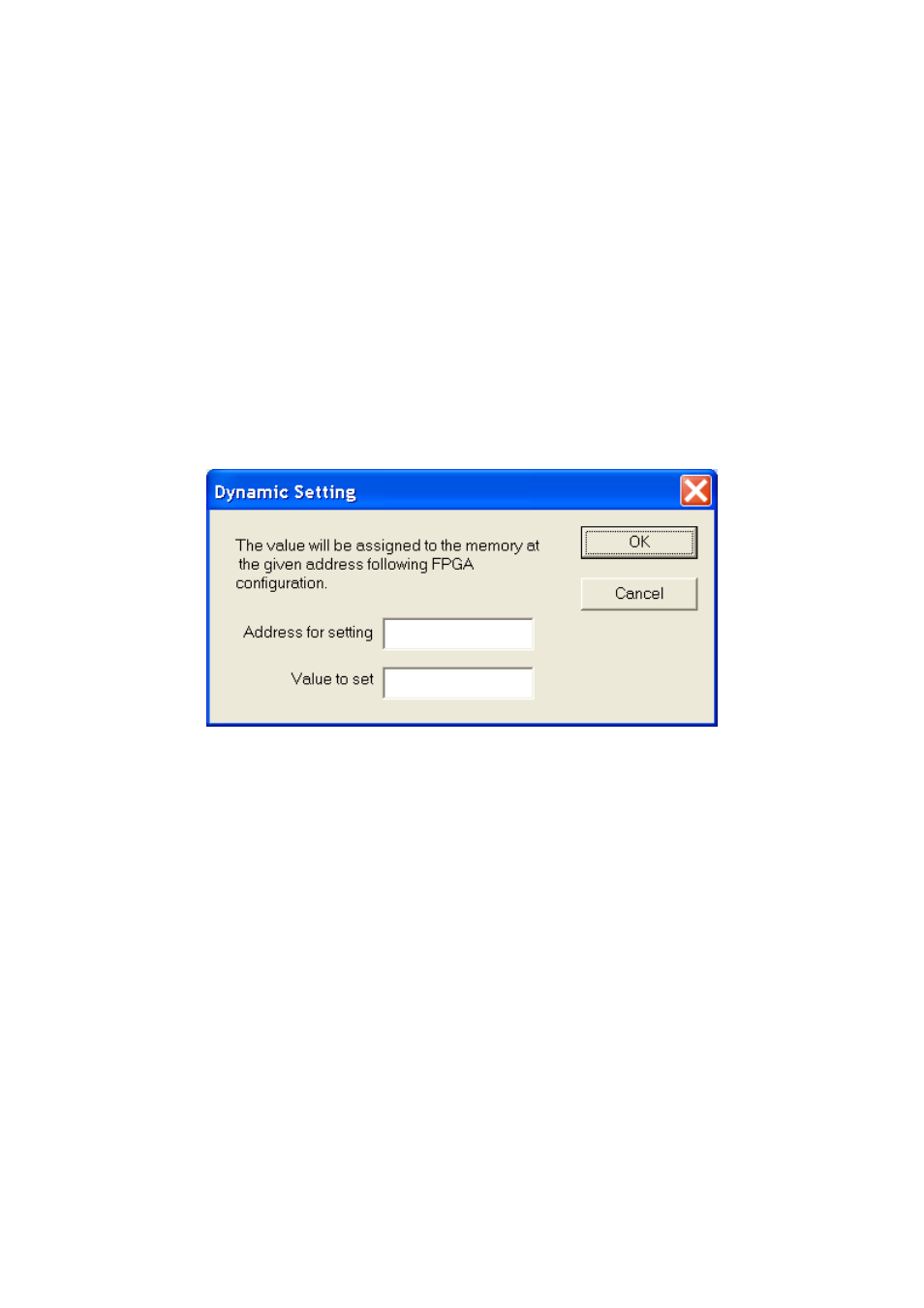

Press "New" under "Dynamic settings". This will bring up the following window:

Type in the required address and value, then press "OK".

4.2

Removing a Dynamic Setting

Select the setting to be removed and press "Delete" to the left of the list of current
settings.
