Sun Pumps SCP 48-18-48Y BC - Manual (Page 12)

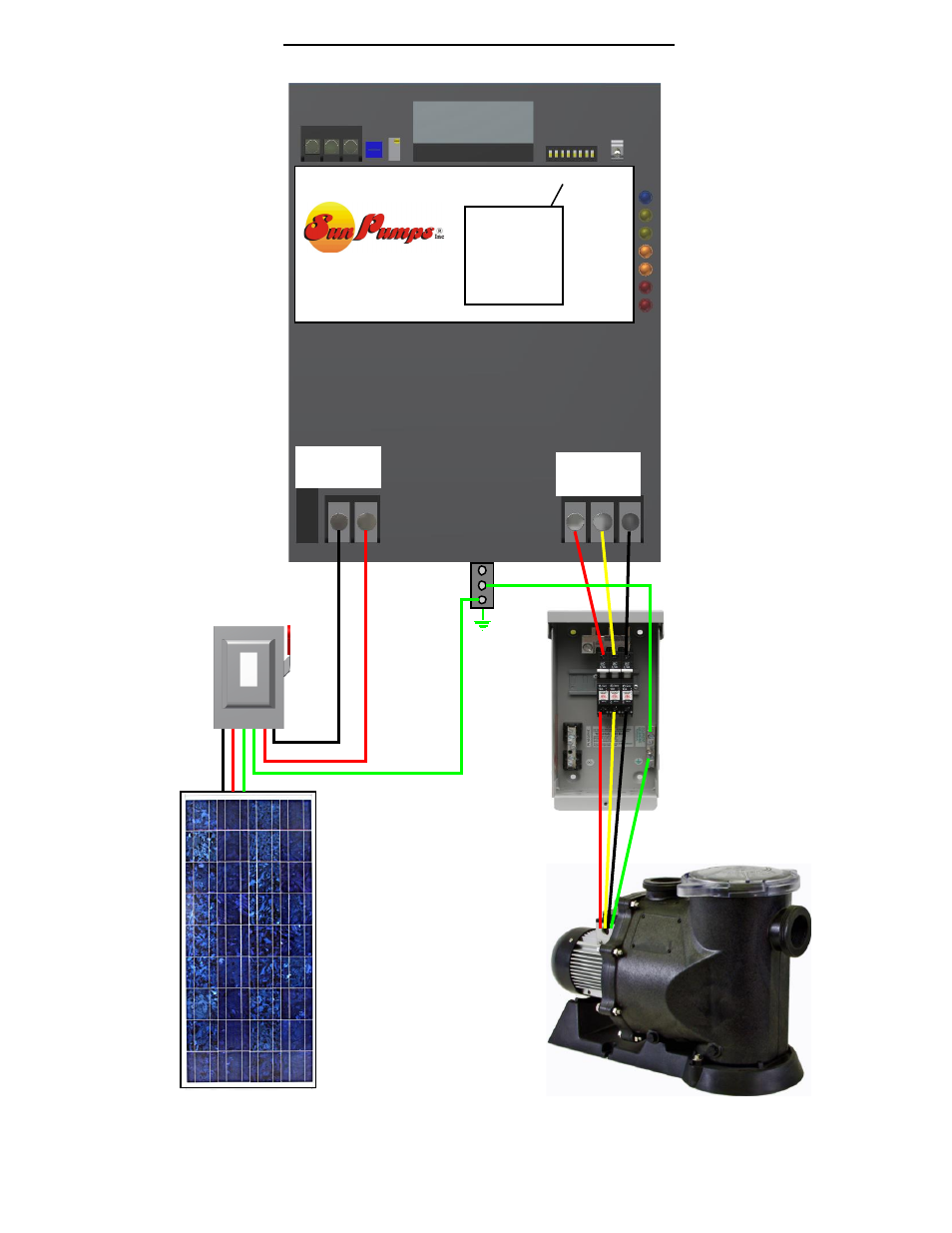

Figure 4 48 Volt PCC Controller Wiring Diagram
_
+
Solar Array
DC Disconnect
MNPV-3 NEMA 3R Box
3 Pole Circuit Breaker
Ground
Block
Red Black
GND RS+ LW Display LP
Adj
Peak
Power
Adjust
Dip
Switch
On /Off
Switch
↑ ↓
Fault Condition
Serial Number
1. Remote Switch Logic
2. Low Water Logic
3. 10 Min Delay
4. 30 Min Delay
5. Not Used
6. Not Used
7. Display Hold
8. Not Used
Dip Switch Settings
PCC-120BLS-M2
Power In
Run
MPPT
RS Stop
Low Power
Over Current
Solar Array
In put
_
+
G
ro
un
d
F
au
lt
F
u
se Pump Motor
R
e
d
Y
el
lo
w
B
la
c
k
SCP Pool Pump
PCC-48BLS-M2
