Trigger Connector
70 SMX-160 Series USB2.0 Camera User Guide

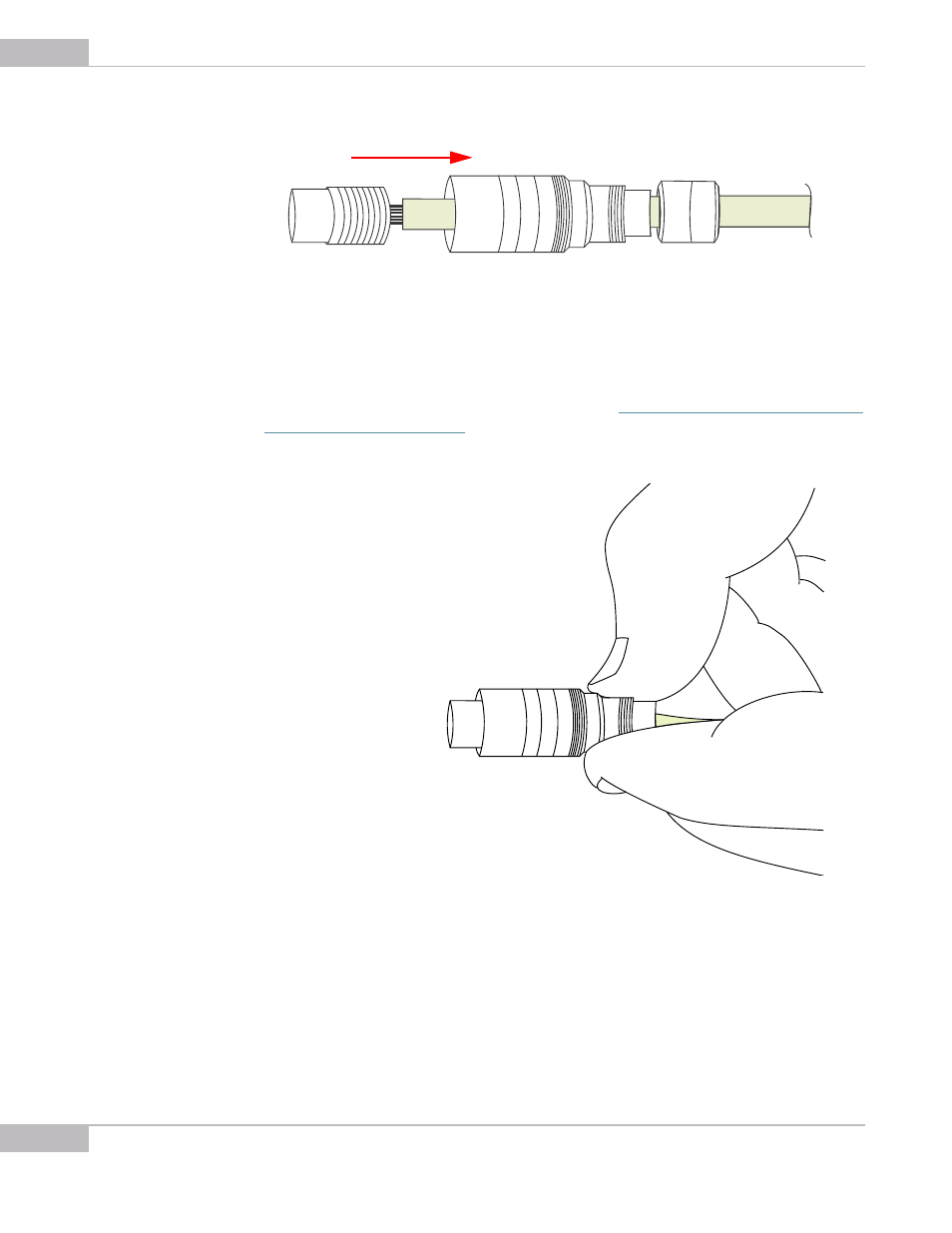

Figure 7-18 Inserting of the inner part of the connector in the main part
Screw in the inner part of the connector in the following way:
1 Fix the inner part of the connector with tweezers ( see Figure 7-5 Fixing of the inner part
of the connector with tweezers ).
2 Hold the main part of the connector with fingers.
Figure 7-19 Gripping of the main part of the connector with fingers
3 Screw the main part of the connector in counterclockwise.
