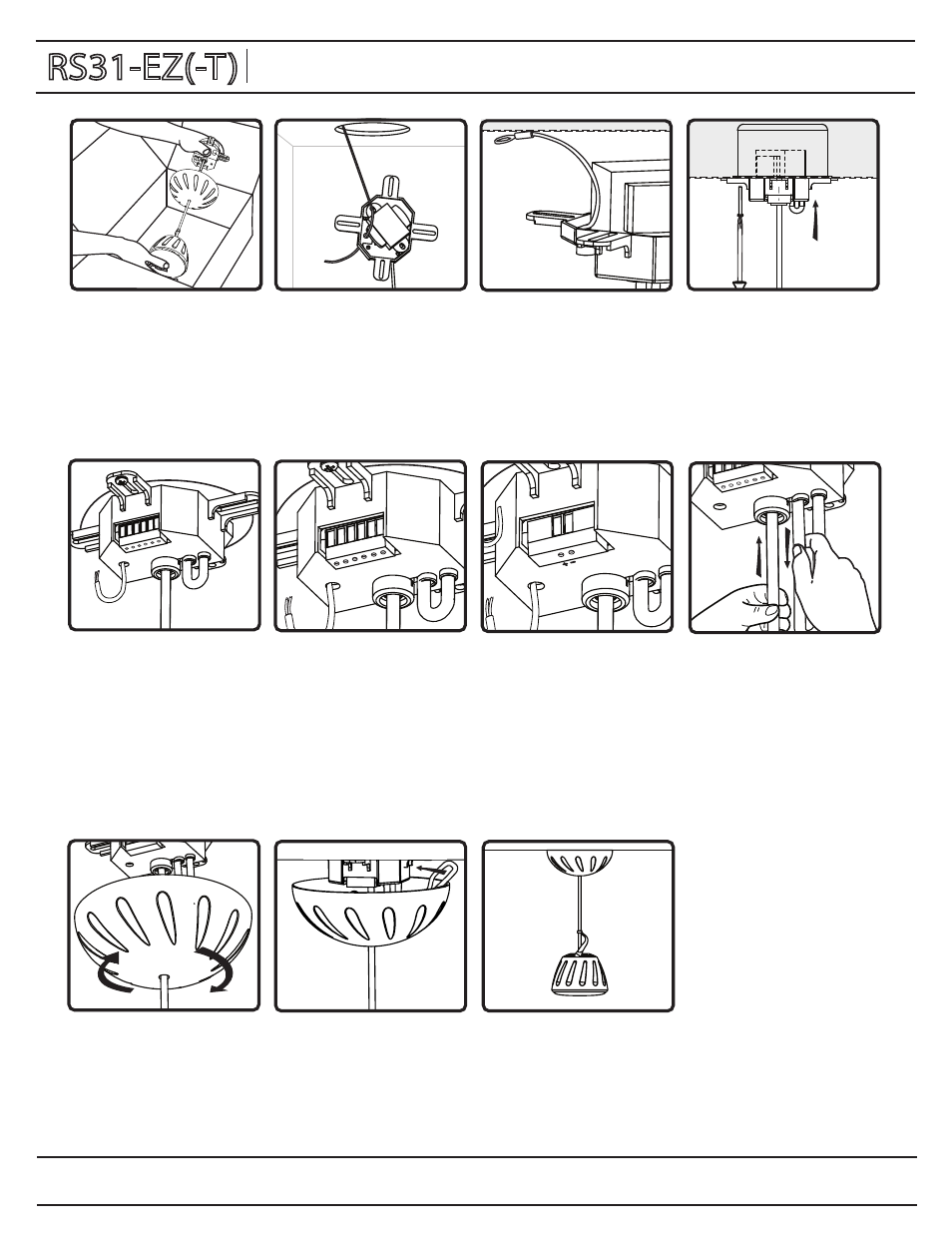

1. Remove speaker assembly
from the box.
2. Feed signal wire from ceiling
through the mounting plate
via wire opening.
4. Screw mounting plate into
the junction box (not
included) using the mout-
ning screws provided.
5. Connect Signal wire into
terminal block
10. Excess wire can be
hidden inside of cover plate
by wrapping excess wire
clockwise and into gap
between plate and surface
6. RS31-EZ-T wiring:
Connect the negative signal
wire to “com” and the
positive signal wire to the
desired power tap as
indicated.
8. Set speaker height by
adjusting speaker wire. Push
wire through the central
hole while pulling on the
center slack line to shorten
the speaker hanging height.
Reverse to lengthen.
7. RS31-EZ wiring:
Connect the negative signal
wire to the (-) negative input
and the positive to the
positive (+) input.
11. Completely thread cover
plate to secure speaker.
Done.
9. Move cover plate up
speaker wire, begin to thread
cover plate into mounting
plate, leaving half an inch
between cover plate and
mounting surface.
Install Instructions For:
RS31-EZ(-T)
RS31-EZ(-T)
3. Where needed, connect
safety leash to secure point
on structure/junction box.
