2-4
• Installation and Setup
UDA-8705A User Manual (Rev. 1.1)

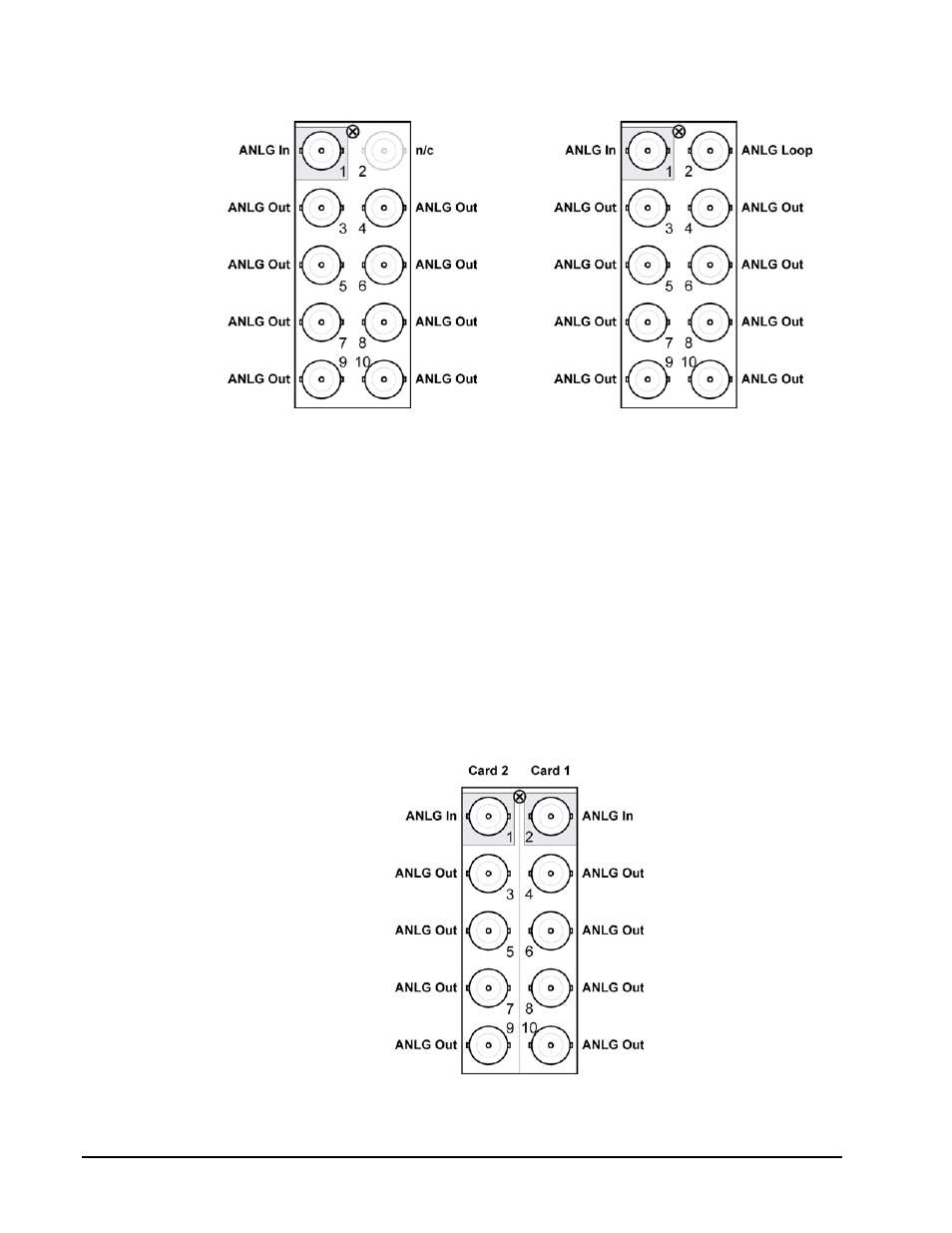

Figure 4. Cable Connections for the R1-8705 and
R2-8705 Rear Modules
Figure 5. Cable Connections for the R1L-8705 and
R2L-8705 Rear Modules
Connections for the DFR-8320 Series Frames
In the DFR-8320 series frames, the UDA-8705A may be used with the following Rear Modules:
• R2-8705 Full Rear Module — Each card occupies two slots and provides eight
outputs. The input must be terminated on the card by setting JP1 to TERM. Refer to
Figure 4 for cable connections.
• R2L-8705 Full Rear Module with Looping — Each card occupies two slots and
provides eight outputs plus one looping output. If the input is looped on the rear
module to another device, JP1 must be set to LOOP. If looping is not used, either
set JP1 to TERM, or terminate the input externally at BNC2. Refer to Figure 5.
• R2S-8705 Split Rear Module — Each card occupies one slot and provides four
outputs. Note that each Rear Module provides connections for two cards. Ensure the
input is terminated on the card at JP1. Refer to Figure 6 for cable connections.
Figure 6. Cable Connections for the R2S-8705 Rear Module
