7

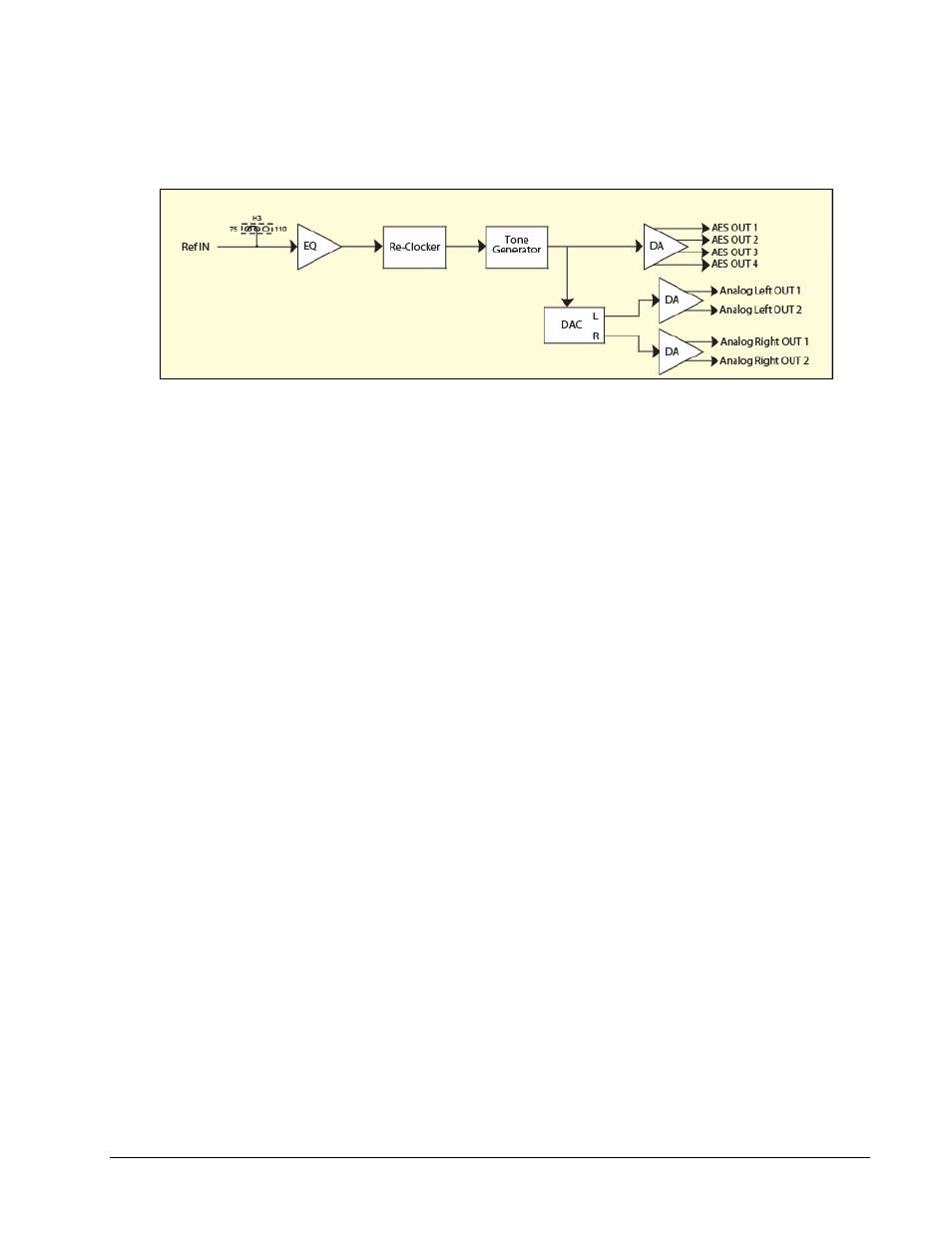

Functional Block Diagram
Figure 1. Simplified Block Diagram of the DAC-162 Functions
Features
The following features make the DAC-162 the best solution for digital to analog audio
conversion.
• Converts AES/EBU digital to analog audio while providing AES/EBU signal
distribution
• Cable equalization and data reclocking on the incoming AES/EBU signal
• 24 bit technology provides the highest quality signal conversion
• Supports audio sampling frequencies from 30kHz to 192 kHz
• 5 year warranty
• Fits openGear 8310-C series frames
Documentation Terms
The following terms are used throughout this guide:
• “Frame” refers to the 8310-C frame that houses the DAC-162 card.
• “Operator” and “User” refer to the person who uses the DAC-162.
• “Board”, and “Card” refer to the DAC-162 card itself, including all
components and switches.
