13
DIP switch settings
SW 1-1 SW 1-2 SW3 SW4 SW5 SW6 SW7 SW8
ON
OFF

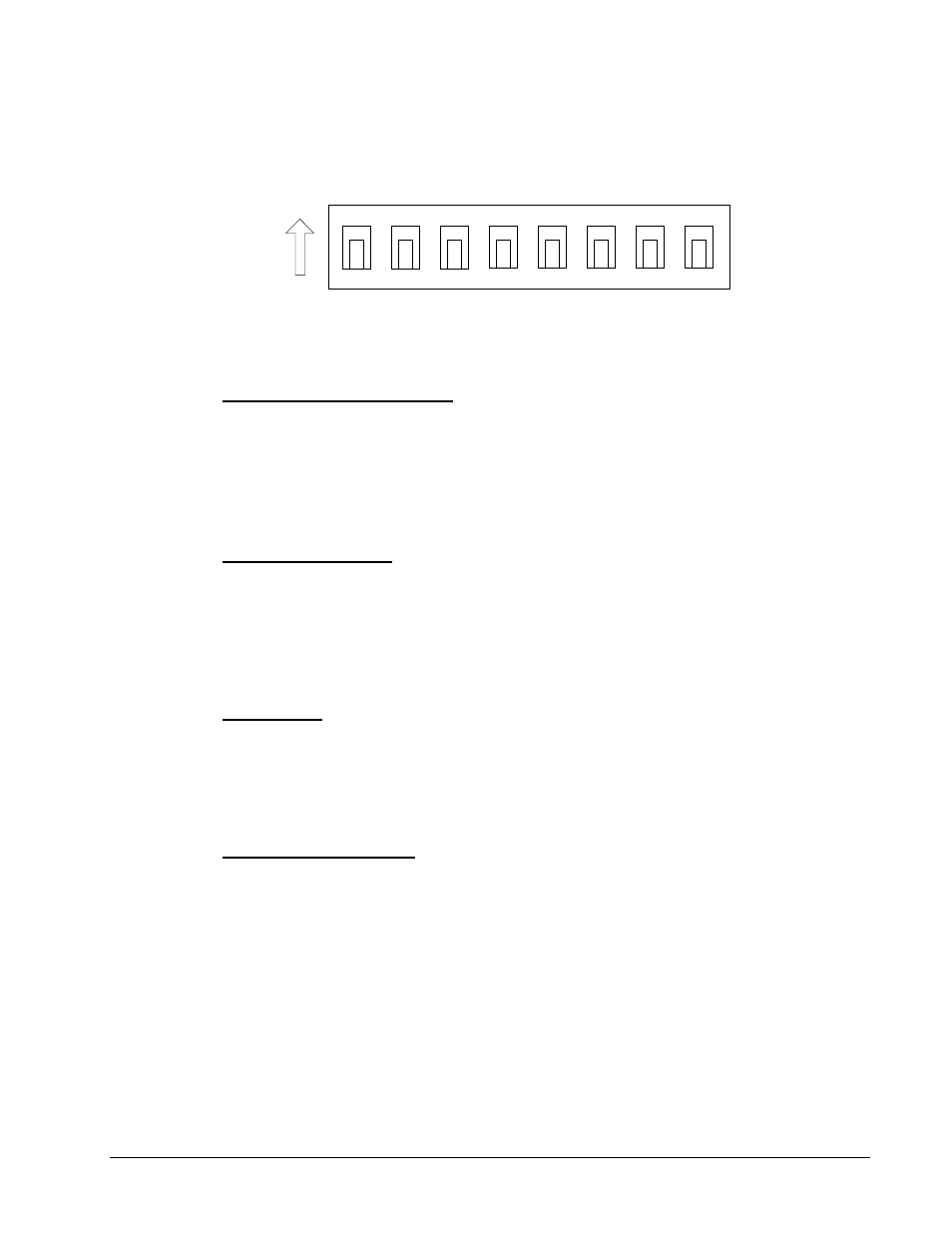

Figure 4. DIP Switch
Table 1 Analog Output Level
SW 1-1 SW 1-2
1 ON ON Mute
2 ON OFF -12dBFS/+4dBu
3 OFF ON -18dBFS/+4dBu
4 OFF OFF -20dBFS/+4dBu
SW3 Tone Generator
‘ON’ – Generates -20dBFS line up tone. This feature requires an input signal
for reference. The tone is 1Khz when input sample rate is 48K, 2KHz at 96K
and 4KHz at 192 K.
‘OFF’ – Normal operation.
SW7 Default
(power up default parameter settings)
‘ON’ – Get card parameters from non volatile memory, ignore dip switch
settings. (Configurable with Dashboard Control system)
‘OFF’ – Get card parameters from the Dip switch.
SW8 Dashboard Enable
‘ON’ – Only card status is available on Dashboard, users are prevented from
changing parameters.
‘OFF’ – Normal operation, users have full access to the cards parameters.
