Notches
Screws for
Mounting Screen
INSTALLATION
It is very important to install the logs exactly as instructed. Do not
modify logs. Only use logs supplied with fireplace.
1.
Place pins in rear log (log 1) into holes on rear of base grate as
shown in Figure 28.
2.
Place middle log (log 2) between front and rear of burner. The
left side will rest on the left tab and the right will straddle the
burner as shown in Figure 28.
3.
Place front log (log 3) onto grate fingers at front of base grate
(see Figure 29). Make sure log seats well into grate.
4.
Place left top log on left pins on logs 2 and 3, resting it on log 1
(see Figure 30).
5.
Place right top log on right pins on logs 2 and 3 (see Figure 30).
6.
Install fireplace screen by slipping notches of fireplace screen
over screws on front of fireplace (see Figure 31).
INSTALLATION
Installing Logs
CAUTION: Do not remove the data plates attached
to the heater base assembly. The data plates contain
important warranty and safety information.
WARNING: Failure to position the parts in accor-
dance with these diagrams or failure to use only parts
specifically approved with this heater may result in
property damage or personal injury.
WARNING: After installation and periodically
thereafter, check to ensure that no flame comes in
contact with any log. With the heater set to High,
check to see if flame contact any log. If so, reposition
logs according to the log installation instructions in
this manual. Flames contacting logs will create soot.
INSTALLING LOGS

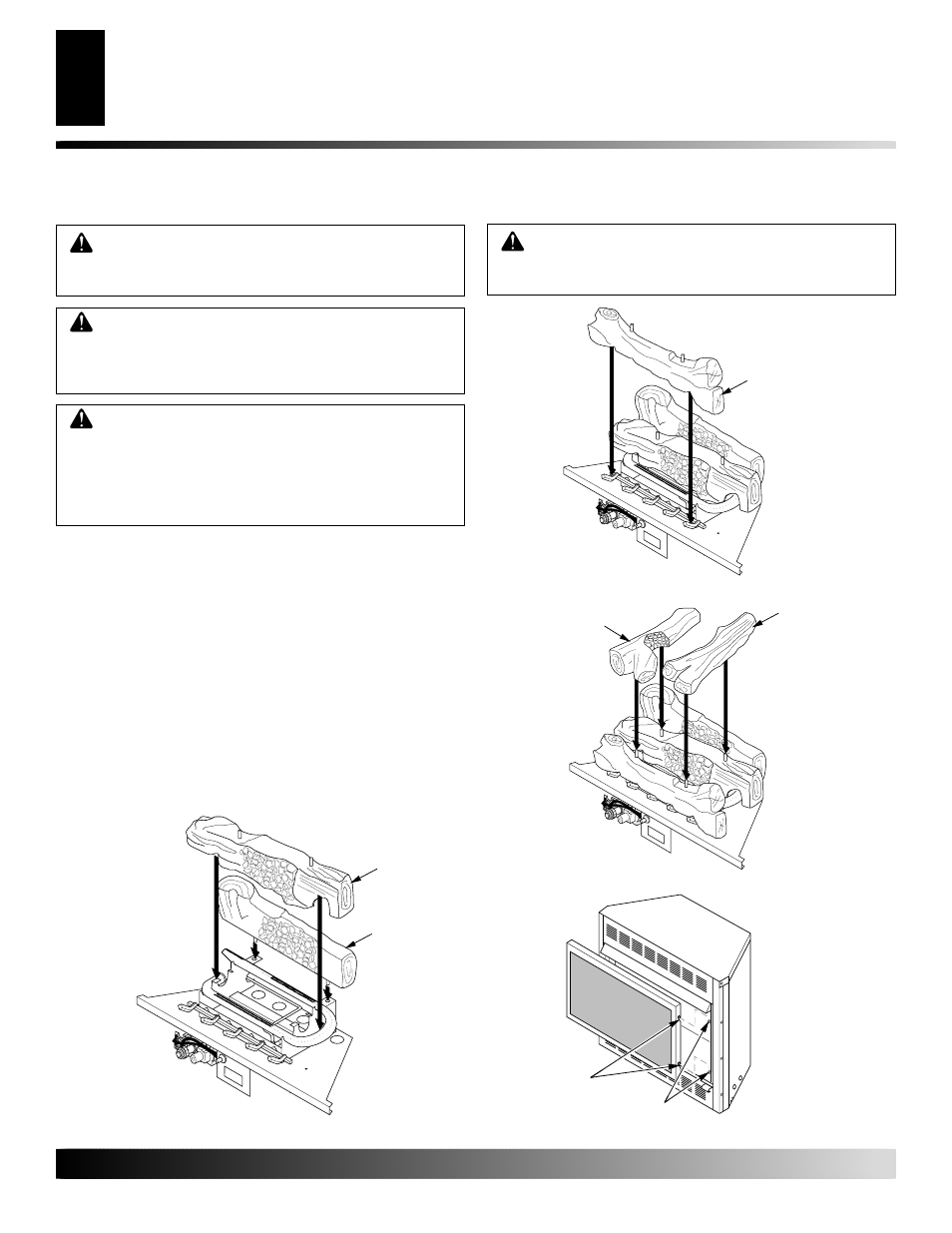

Figure 28 - Installing Logs 1 and 2
O
F
F
P
IL
OT
O
N
WARNING: You must operate this fireplace with
the fireplace screen in place. Make sure fireplace
screen is in place before running fireplace.
Notches
Figure 31 - Installing Fireplace Screen
Screws for
Mounting Screen
Figure 29 - Installing Log 3
Figure 30 - Installing Logs 4 and 5
O
F
F
P
IL
OT
O
N
O
F
F
P
IL
OT
O
N
Log 2
Log 1
Log 3
Right Top Log
Left Top Log
