Removal And Replacement: Gearmotor Assembly
Note: Some bearing grease should be placed in all
bearings before assembly to insure proper
lubrication upon start up.
Reassembly
1. Set top gearcase on gears and spacers and oil.
Be sure O-ring is in place.
2. Drive roll pins back into locating holes.
3. Replace cap screws into gearcase cover, and
torque at 80-90 inch pounds.
4. Bench test the gearmotor assembly.
Test for noise, amp draw (must not be in excess of
ice maker nameplate for gearmotor) and oil leaks.
Return the gearmotor assembly to the unit. Be
certain all mounting surfaces are clean and
reassemble to the gearmotor mounting plate. Then
bolt back onto ice machine chassis.

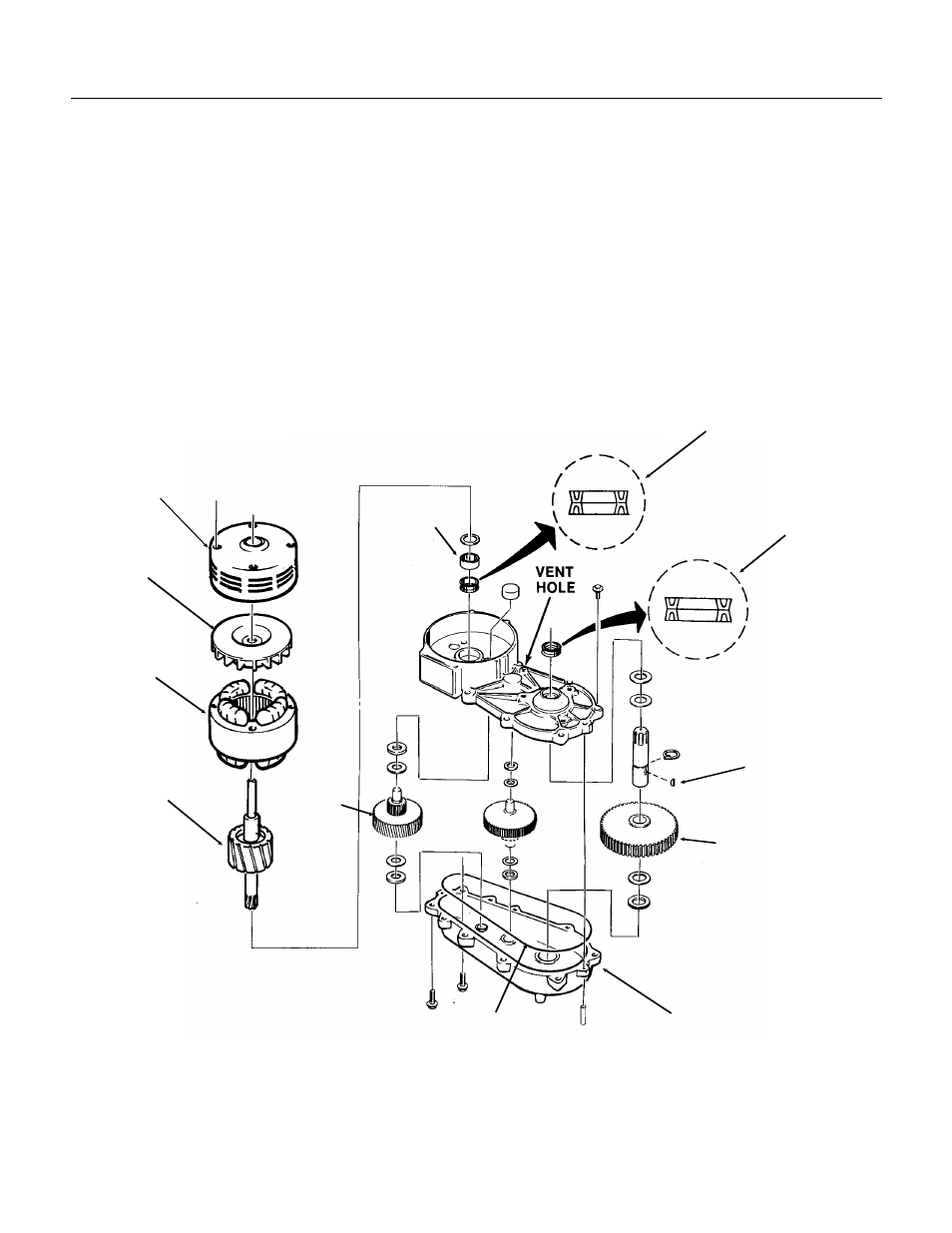

GEARMOTOR PARTS
MOTOR
HOUSING
FAN
STATOR
ROTOR FIBER
GEAR
GEARCASE
OUTPUT GEAR
WOODRUF KEY
OUTPUT
SHAFT SEALS
DETAIL OF INPUT
SHAFT SEALS
BEARING
O-RING
