Connecting loudspeakers – Dynaudio SUB 600 User Manual
Page 17
14
Dynaudio Sub 600
OPERATION
Connecting loudspeakers
In Home Cinema systems the bass management - meaning the distribution of the low
frequencies to the subwoofer and the speakers - is handled by the settings of the
processor/receiver. If your equipment does not provide bass management, or if you want
to use the Sub 600 together with a common stereo, the low frequency adjustment of the
connected speakers can be managed by the Sub 600. This not only improves the sound
by matching subwoofer and speakers, but also by freeing the power amplifier and
connected speakers from the effects of sound-compromising bass reproduction. Also
refer to the further explanations in the chapter “Connecting the subwoofer” on page 10.

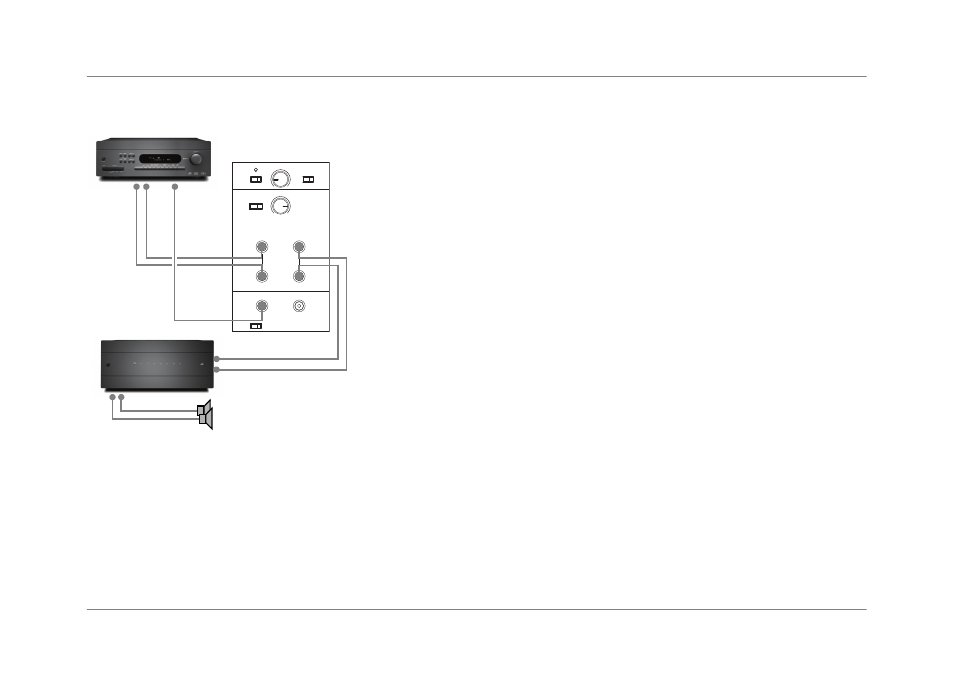

To connect speakers:
1. Connect the subwoofer with the processor/receiver as explained in “Connecting a
2. From the Subwoofer SAT Output connect a RCA cable to the Main In of the power
amplifier you use for your speakers.
Note:
Stereos do not have a LFE channel. In this case just connect the front outputs of
the processor/receiver (Front Out/Pre Out) with the subwoofer.
The signals connected to the SAT/SUB Input are provided at the OUT - To Slave
output for connecting another subwoofer. See page 13 to learn more about
connecting multiple subwoofers.
