8 Dynaudio Sub 600
BEFORE OPERATION

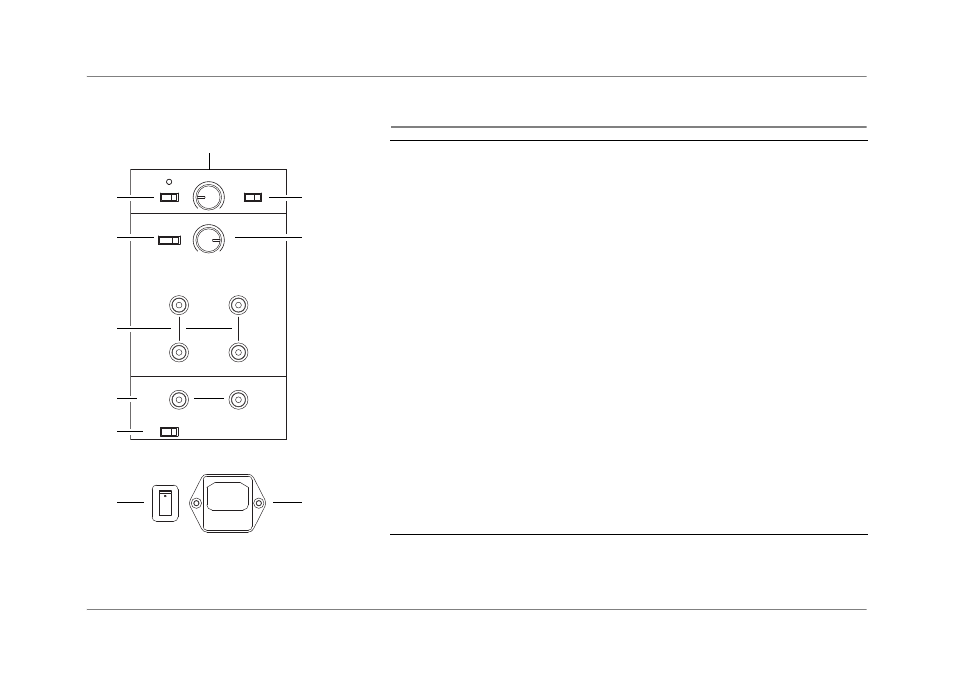

Controls and connections
➊ POWER
Subwoofer auto power mode:
• ON = Auto mode disabled (subwoofer is switched on permanently, when main
power switch is set to ON).
• AUTO = Auto mode enabeld (when main power switch is set to ON and a music
signal is detected, the internal amplifier is activated automatically).
➋ GAIN
Subwoofer volume level.
➌ PHASE
Phase setting: phase can be set to 0° or 180°.
➍ SAT Highpass
Allows cutting off low frequencies of the signal provided at the SAT Output:
• Flat = signal is not processed
• 60 = cut-off frequency at 60 Hz
• 80 = cut-off frequency at 80 Hz
➎ SUB Lowpass
Subwoofer lowpass frequency: continuously variable from 50 to 150 Hz.
➏ SAT/SUB Input, SAT Output
• SAT/SUB Input: Input for full bandwidth signal from processor/receiver. This
signal will be processed according to the SAT Highpass setting and provided at
the SAT Output connection for satellite speakers to be connected.
• SAT Output: Output for satellite speakers to be connected. This signal is
processed according to the SAT Highpass setting.
ON AUTO
GAIN POWER PHASE
SUB Lowpass SAT Highpass
SAT/SUB Input SAT Output
LFE / Slave IN OUT
Flat 60 Hz
LFE Slave
80 Hz
Min Max
50 Hz 150 Hz
0° 180°
LEFT
RIGHT
SUB I/O To Slave
100-120V/220-240V
~ 50/60Hz 3.15A
FUSE T3.15A L 250V
OFF
ON
➊
➋
➌
➍ ➎
➏
➐
➑
➒ ➓
