volvo l-5 a/c - air distribution system
onto the machine screws. Secure the box with four
nuts and lockwashers. KEPS nuts are easiest to use.
Routing cables
The box has several different types of cables:
• Wires enclosed in split loom
• Flexible power cables
• “Phone” type cables
The “wires in split loom” will go toward the CHEB
unit.

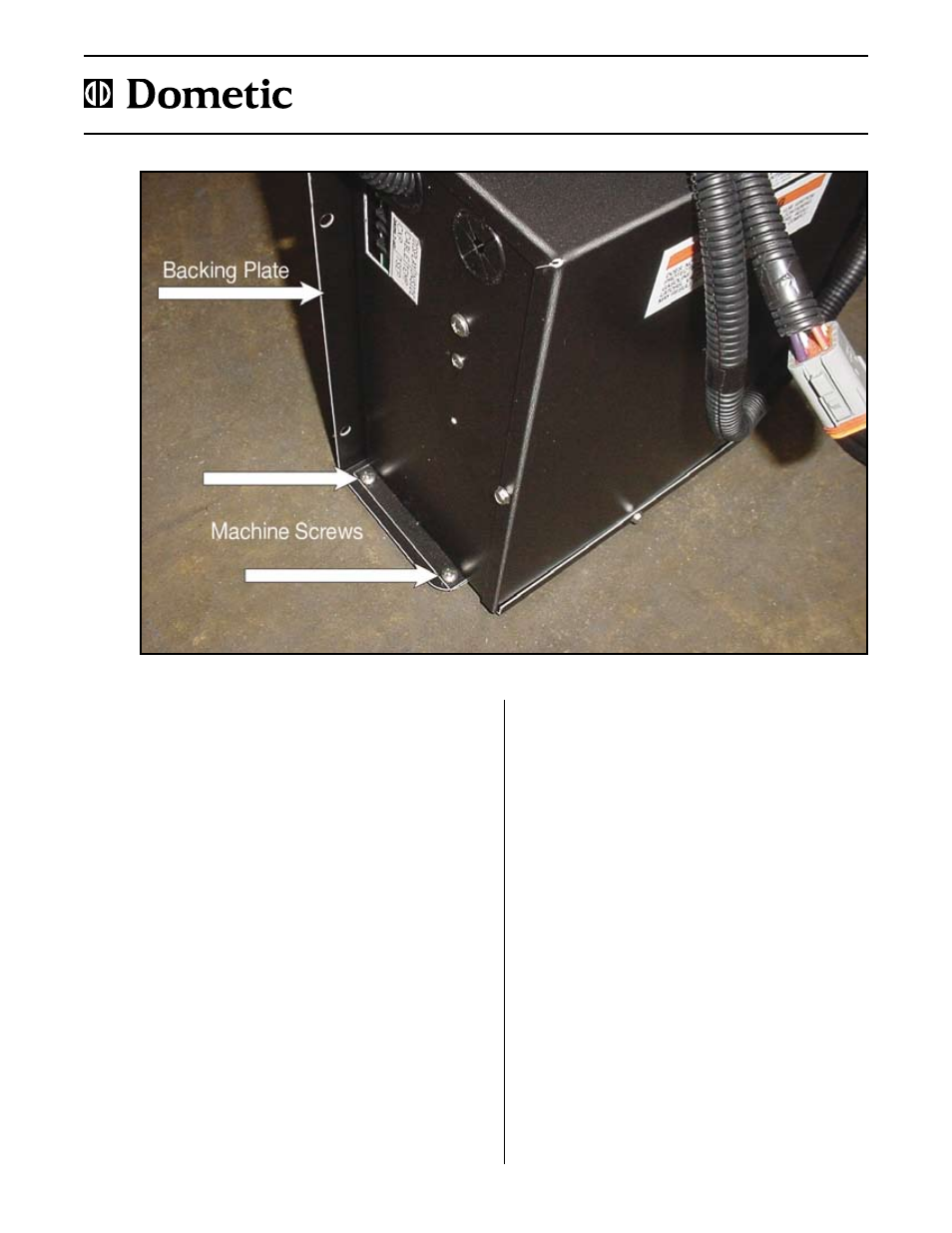

Figure 3. Fastener location on Power Logic Box
The flexible power cord(s) will go toward the power
distribution panel.
The phone cable mounted on the CHEB unit plugs
into the hole marked “TSEP.”
The phone cable from the control display plugs into
the hole marked “Display.”
For easier installation, it is recommended that the
cables be placed in the appropriate direction before
mounting the box. All cables should be neatly routed
and clipped, to prevent chaffing.
