volvo l-5 a/c - air distribution system
18
Routing the RefRigeRant
lines and condenseR poweR
cable
The refrigerant lines will pass over the exhaust pipe,
then over top of the condenser mounting plate, and
back around to the quick connect. Connect the quick
connects in the manner described previously. Secure
the refrigerant lines as shown, with one cushion clamp
on the mounting plate side extension, and one on the
opposite side to prevent movement and chafing. Use
cable ties to secure the refrigerant lines to each other
and to the condenser power cable. After connecting
the condenser power cable, secure power cord in
such a manner that the connections are pulled in a
linear fashion, not to the side.
Install the heat shield as shown, using two 6" hose
clamps.

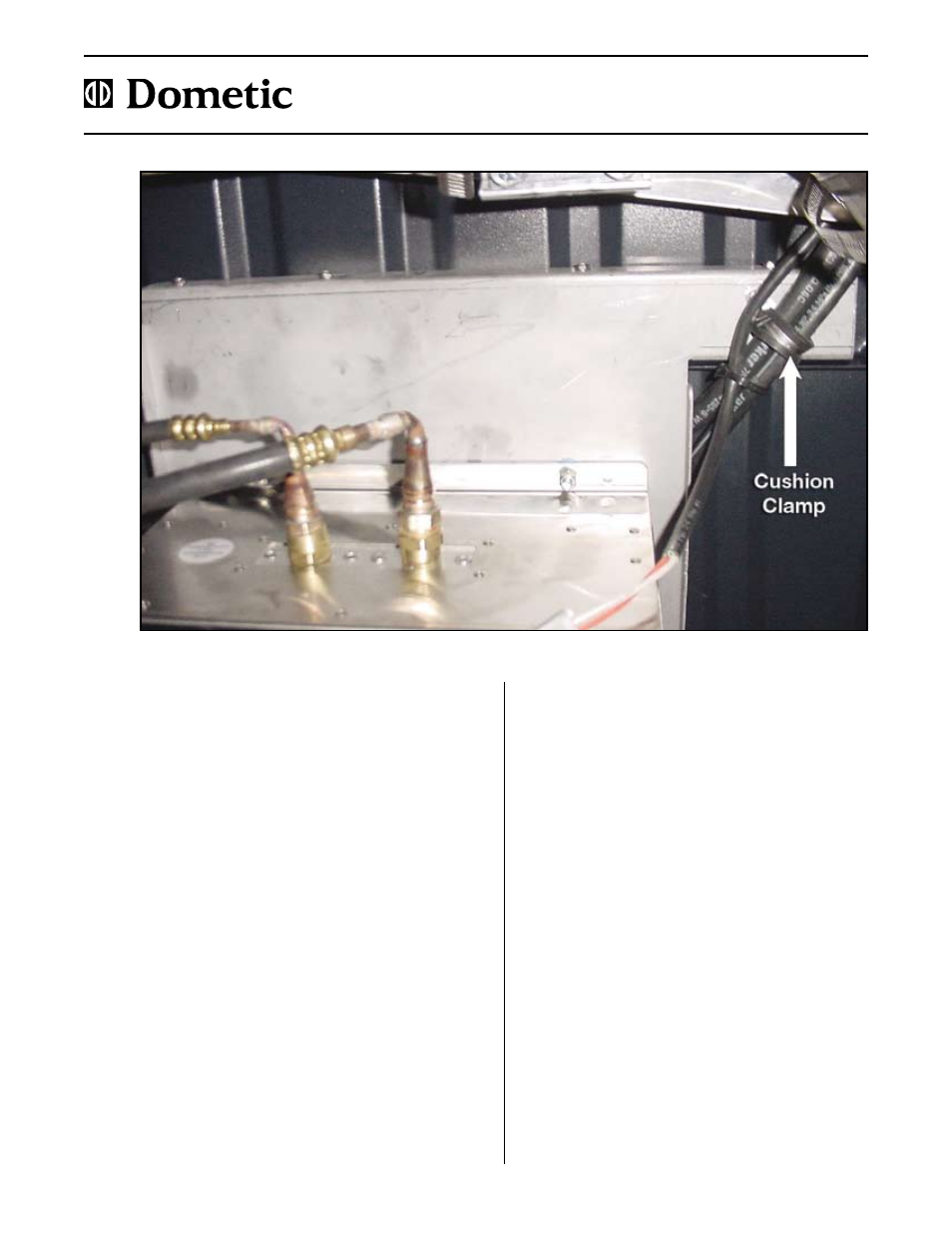

Figure 17. Routing of refrigerent lines.
