Warning, Final filter – Royal Vacuums CH50102 User Manual

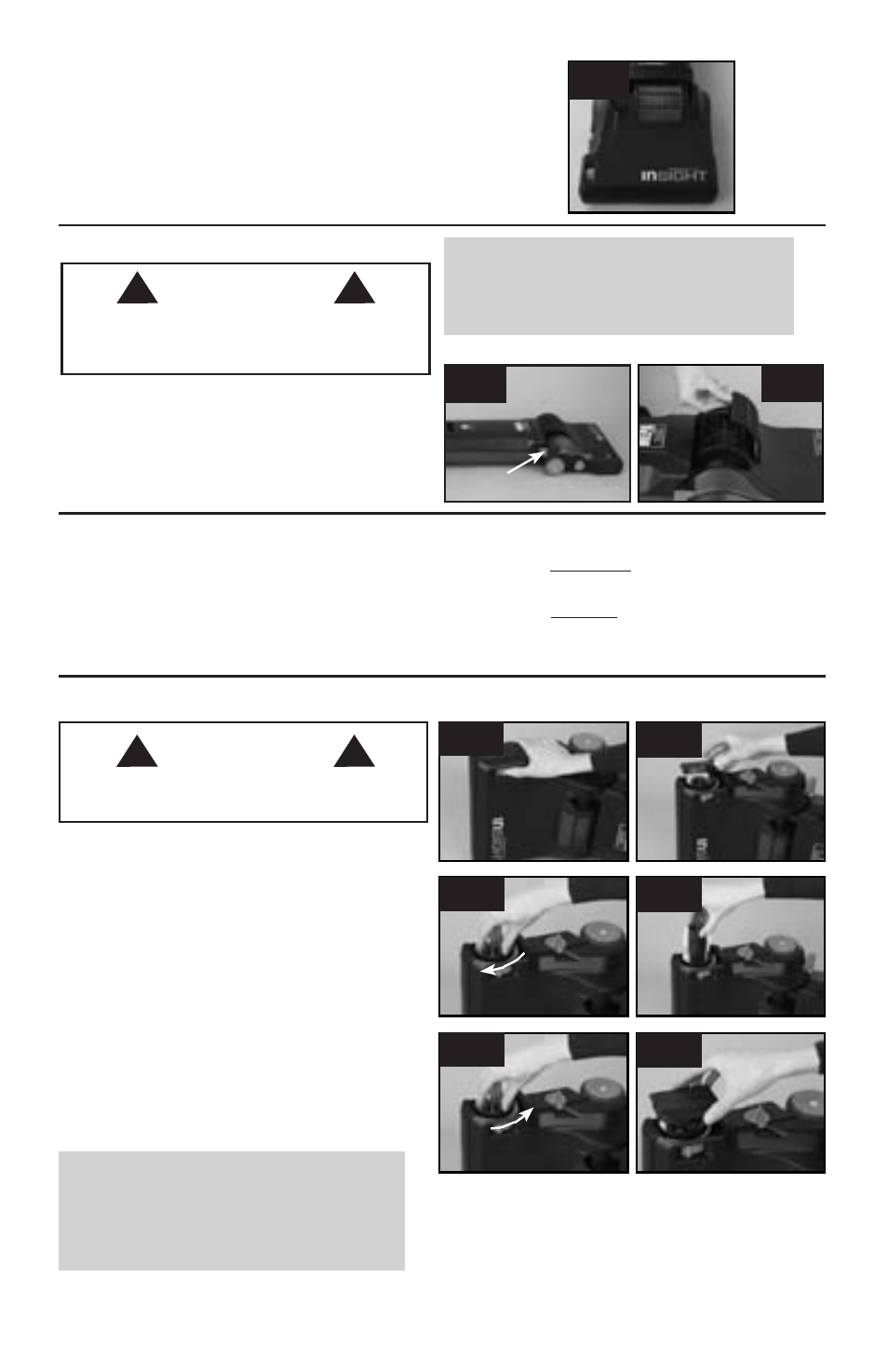

Page 13

Brushroll: when to Clean or replace

WARNING

To reduce the risk of personal injury from moving

parts, unplug vacuum before servicing.

4.12 To remove the brushroll, tilt nozzle on its side with

brushroll side plate up. Push the brushroll release but-

ton (A) forward and remove the side plate (B).

4.13 Twist brushroll forward and lift brushroll out. If

cleaning, remove any debris and/or hair from the

brushroll. If replacing, discard old brushroll and install

a new one.

4.14 To reinstall the brushroll, slide the brushroll back

into the brush housing and twist it backwards until it

locks in place.

4.15 Press the side plate (C) back onto the nozzle,

until it locks into place.

4.16 If you’ve replaced the brushroll with a
new one, reset the brushroll check indicator
on the LED Diagnostic Panel (see page 14).

Brushroll: how to Clean or replace

When the red indicator light above the brushroll check icon illuminates and

is blinking

, the brushroll is jammed and

needs checked and cleaned.
When the red indicator light above the brushroll check icon illuminates and

stays on

, the brushroll bristles are worn

and the brushroll needs replaced.
It is also advised to check occasionally for excess hair or fiber wrapped around the brushroll.

what to Buy

Use only genuine Hoover Brushroll with your

vacuum. When purchasing a new Brushroll, ask for

Hoover

Part No. 440001916.

4.10 To remove this filter when it becomes dirty,

first release the handle all the way to the floor by

stepping on the handle release lever (B) twice.
4.11 To remove final filter, pull tab (C) forward.

Remove filter cover and filter. Insert a new filter

and replace the filter cover.

Final Filter:

how to replace

what to Buy

Use only genuine Hoover Final Filters with your

vacuum. When purchasing a new Final Filter, ask for

Hoover

Part No.440001914.

Final Filter:

when to replace

4.9 The final filter (A) located on top of the nozzle should be changed when

clogged with dirt or dust. Inspect regularly or when changing the second-

ary filter.

WARNING

To reduce the risk of personal injury, unplug before

cleaning or servicing. Do not use vacuum without

either the secondary or final filter in place.

4.9

4.10

4.11

4.12

4.13

4.14

4.13

4.15

This manual is related to the following products:

CH50100
