Page 7

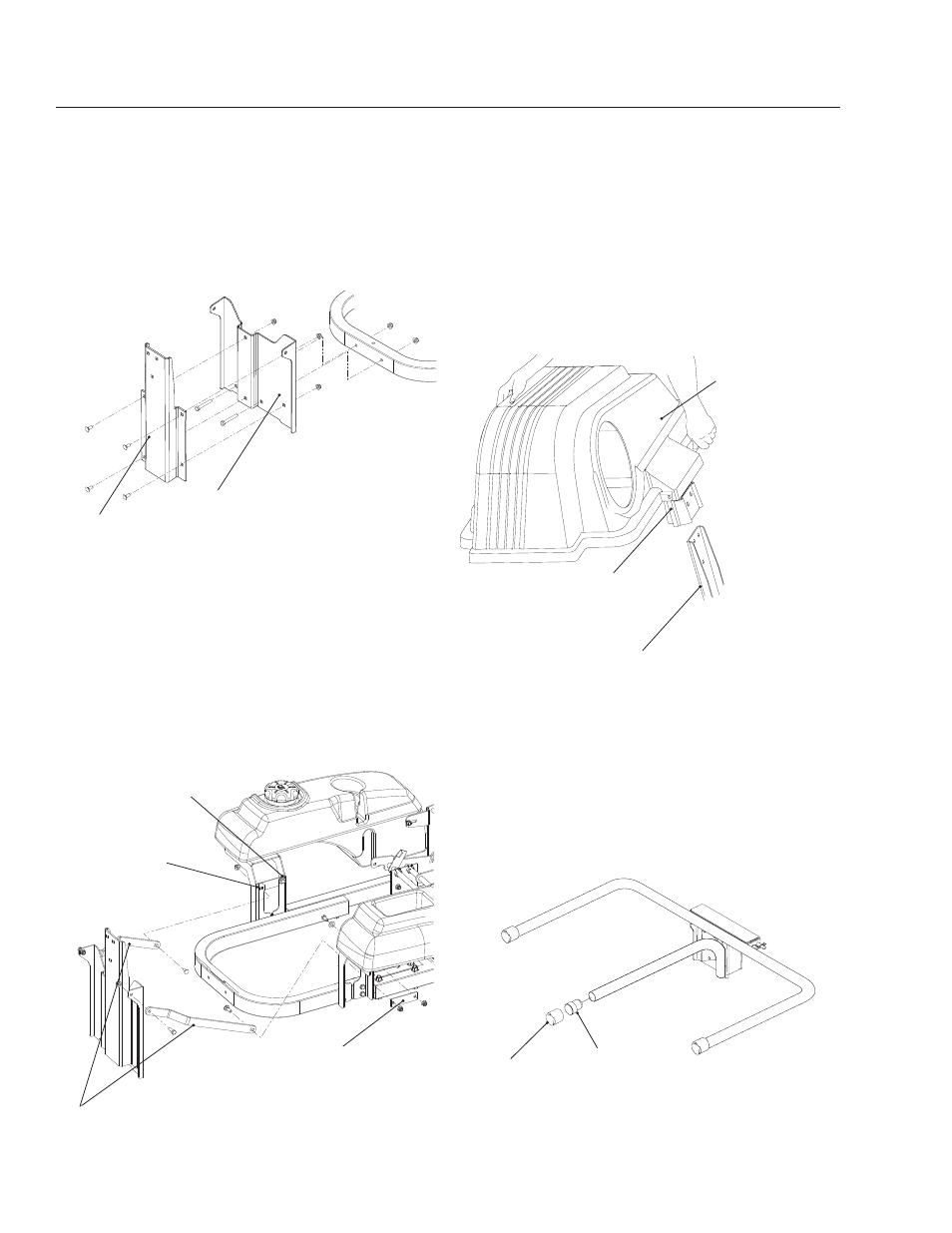

ASSEMBLY

INSTALL PLATE AND HANGER

Cover Assembly

Frame

Bracket

MOUNTING COVER ASSEMBLY

TO SUPPORT ASSEMBLY

Hanger

For ease of assembly, you may wish assistance from

another person for mounting the cover assembly to

mower.

Position cover assembly on the ground behind the

mower.
Lift and rotate cover to align the frame bracket with

the hanger and slide the cover down until secure.

Remove plastic end cap from the center bag

support arm. Fully insert spacer plugs into the

ends of the support tube. It may be necessary

to tap the spacer into place with a hammer or

mallet. Replace the plastic end cap back over

the spacer. The additional extension will hold the

hood more securely when latched.

Remove center

end cap

Insert spacer and

replace cap

INSTALLING SPACER PLUG

Using hardware provided in kit, attach support

mount to unit.
Attach hanger bracket to support mount. Do not

fully tighten nuts at this time.

Hanger Bracket

Secure rear end of support straps to outside of

hanger assembly. Set reinforcement plates to the

outside of the tank brackets and fasten front end

of support strap to tank bracket and reinforcment

plate with round head bolt. Secure front end

of reinforcement plate to tank bracket with hex

bolt. Fully secure all mounting hardware. See

illustration.

NOTE: Depending on model, rear guard hole may

need to be drilled out to

" if kit hardware is too

large.

Support Mount

Support Straps

Reinforcement Plate

Hex Bolt Placement

Round Head

Bolt Placement
