9
Product
Information
8

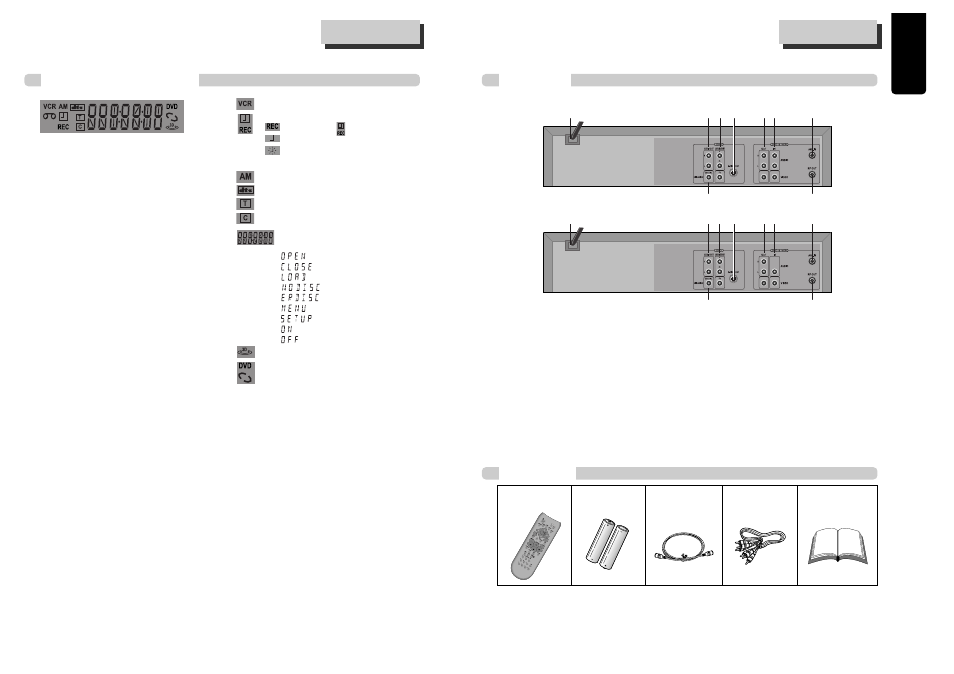

Operation Display Window
Time, Counter and Current
Operation
Tray is opened
Tray is closed
Disc is loaded
There is no disc in tray
Disc has some error
Menu screen is displayed
Setup menu is displayed
Power is ON
Power is OFF
3D Sound Indicator
DVD Disc Operation
VCR Operation
REC and TIMER REC display
Recording , TIMER Recording ,
To be Timer-recorded,
To be Timer-recorded state ERROR
(No Tape or Tape without tab)
AM
dts Disc Indicator
Track
Chapter
This is displayed in DVD disc.
Identification of Controls Identification of Controls
Rear Panel
!
( @
^ * & $ # %
! Power Cord
It is a jack for supplying power to the unit.
Connect to outlet in a wall.
@ Digital Output (COAXIAL) Jack
To enjoy sound quality of theater level in home,
connect this jack with amp or unit embedded with
digital audio decoder.
# AUDIO Out Jack
$ COMPONENT Out Jack
To obtain better screen quality, connect the unit
to TV or monitor with COMPONENT(480i) input.
% S-Video Output Jack
^ A/V Output Jack
& A/V Input Jack
* Connection to Antenna Cable
( Connection to TV
✔
DV6T834N, DV6T834B, DV6T844N, DV6T844B [Hi-Fi]
!
( @
^ * & $ # %
✔
DV6T534N, DV6T544N, DV6T534B, DV6T544B [MONO]
Accessories
Remote Control 2 Batteries RF cable
Connecting cable to
Audio/Video jack
OwnerÕs Manual/
Warranty
¥ To purchase accessories or not supplied parts additionally, contact your nearest dealer or service center. But,
ownerÕs manual and warranty are not sold additionally.
