Connecting with an analog audio – Daewoo DV6T534B User Manual
Page 10
15
Installation
14
How to Connect

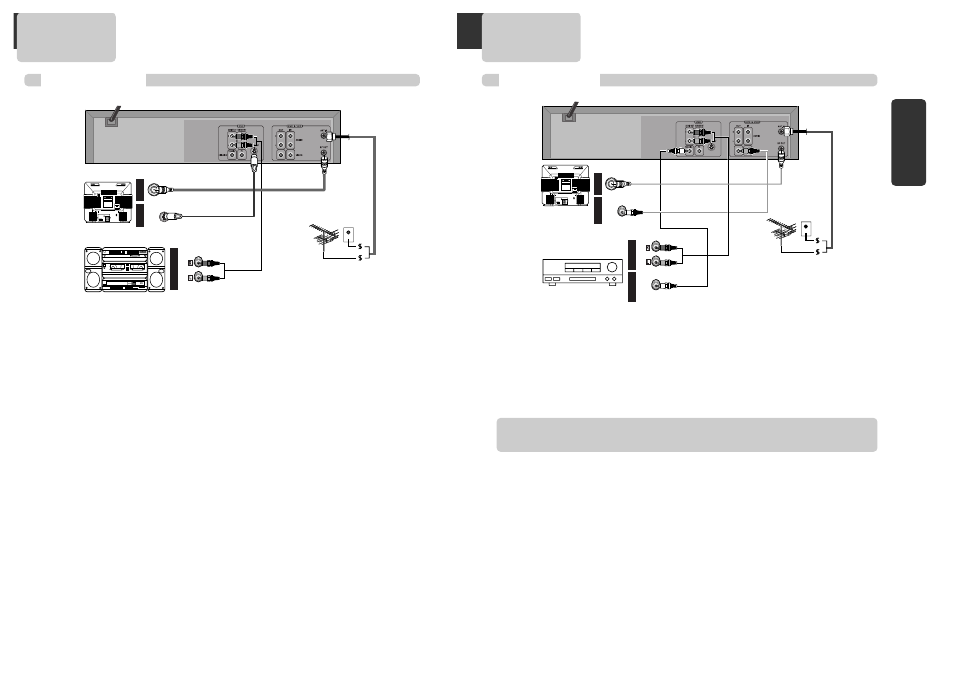

Connecting with an Analog Audio
AUDIO
ANT INPUT
AUDIO INPUT
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PRESONNEL.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
20
18
16
14
12
10
8
6
4
3
21
19
17
15
13
11
9
7
5
3
1
S-VIDEO
S-VIDEO INPUT
1
1
Connect Audio jack. Connect AUDIO OUT in rear panel of DVD-Video to In jack of stereo sound unit.
2
2
For Input Select in stereo unit, Select ÒExternal InputÓ connected with DVD-Video.
3
3
Playback DVD disc or Hi-Fi videotape, you can hear sound in speaker of stereo unit.
Connecting with a Dolby Digital decoder or DTS decoder
How to Connect
AUDIO
COAXIAL
ANT INPUT
AUDIO INPUT
DIGIT
AL
AUDIO
INPUT
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PRESONNEL.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
20
18
16
14
12
10
8
6
4
3
21
19
17
15
13
11
9
7
5
3
1
VIDEO
VIDEO INPUT
1
1
If using this DVD-Video to play a DVD disc in 5.1 channel Dolby Digital Surround, or DTS surround formats, the
DVD-Video outputs a Dolby Digital, or DTS data stream from its COAXIAL DIGITAL AUDIO OUT jack. By
hooking the DVD-Video up to a Dolby Digital or DTS decoder, you can enjoy a more convincing, realistic
ambience with powerful and high-quality surround sound of a professional standard such as can be heard in
movie theaters.
2
2
Use an audio coaxial digital cable (not included) for the audio connections.
Manufactured under license from Dolby Laboratories.
ÒDolbyÓ and the double-D symbol are trademarks of Dolby Laboratories.
Dolby Digital decoding capability>
