PowerScan

PD7100 Corded

USB Connection —

Connect the reader to a USB port on the termi-

nal/PC using the correct USB cable for the interface type you ordered.
Reference

Figure 2

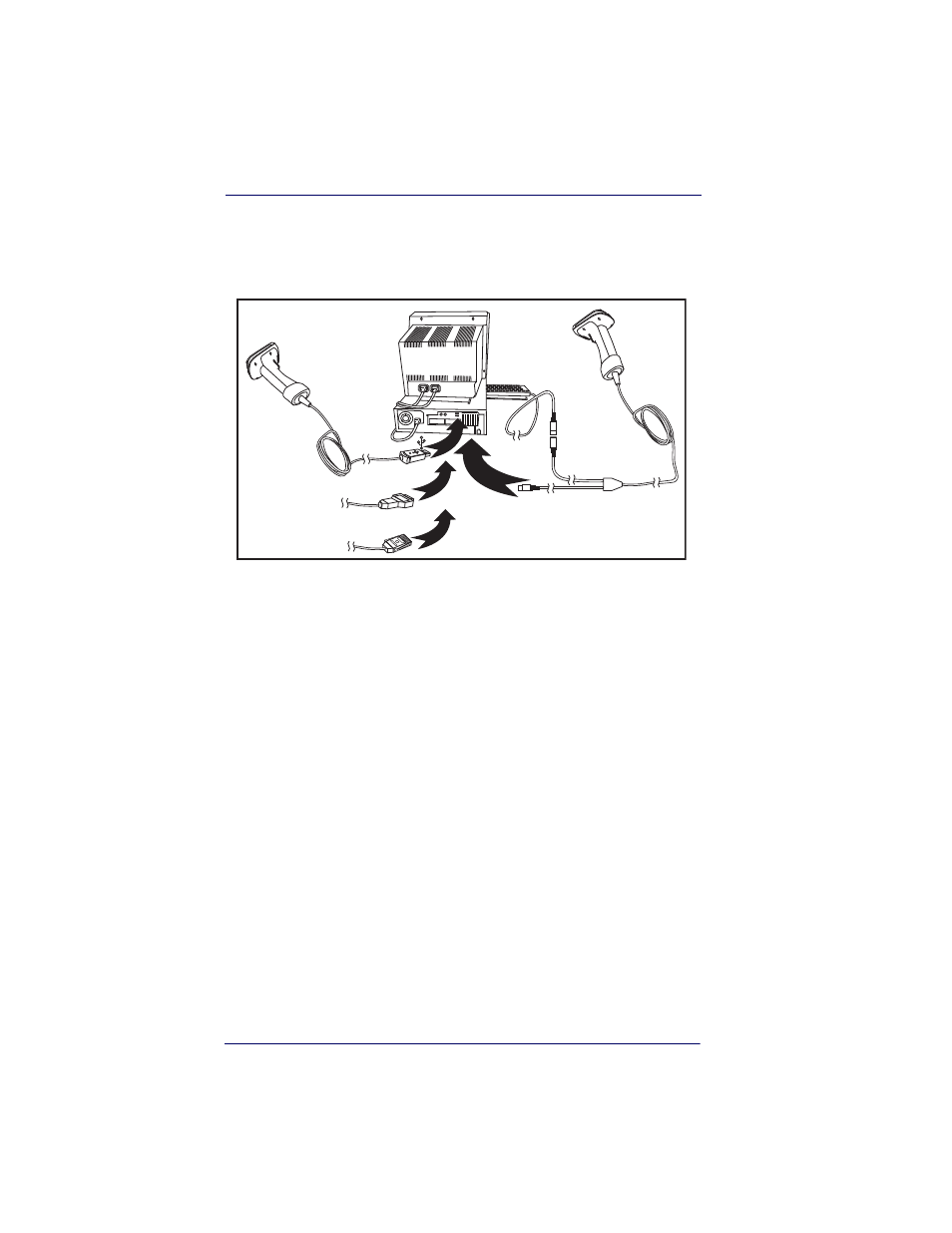

Figure 2. Other Interface Connections

Wand Emulation Connection —

Connect the reader to the appro-

priate port on the terminal/PC using the correct cable for the interface
type you ordered. Reference

Figure 2

IBM Connection —

Connect the reader to the IBM port on the ter-

minal/PC using the correct IBM cable. Reference

Figure 2

Keyboard Wedge Connection —

The Keyboard Wedge cable has a

‘Y’ connection from the reader. Connect the female to the male end
from the keyboard and the remaining end at the keyboard port at the
terminal/PC. Reference

Figure 2

Programming

The reader is typically factory-configured with a set of default features.
Reference

Defaults on page 11

. You can select other options and custom-

ize your reader through use of the instructions and programming bar-
codes available in the Product Reference Guide (PRG). You can view and
download this and other manuals from the website listed on the back
cover of this manual.
