Technical specifications
8 Dynaudio Mobile Systems
Woofer

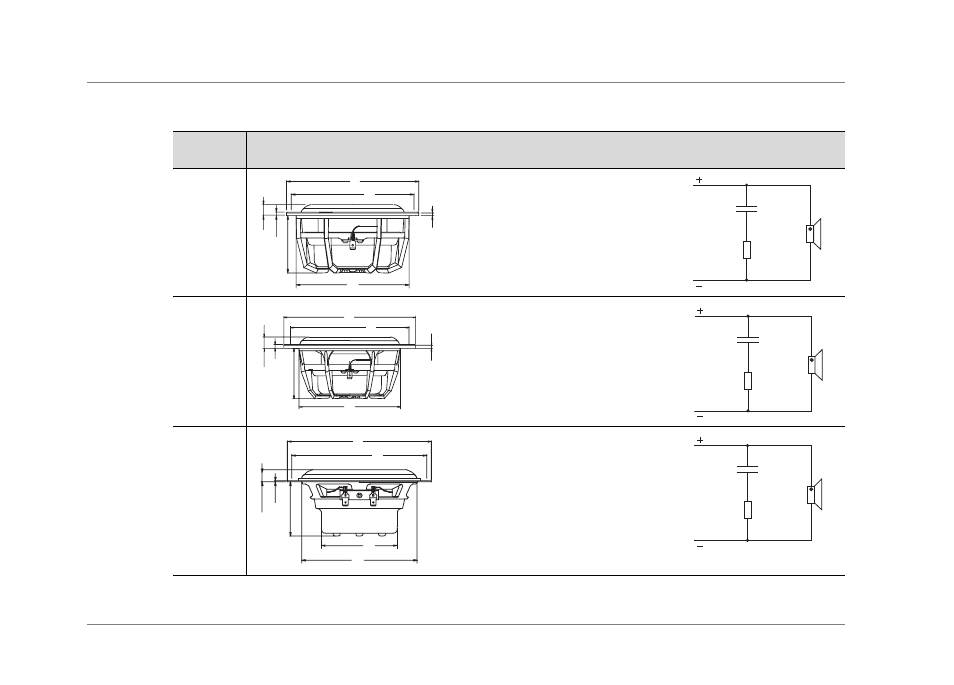

Installation dimensions (in mm) Impedance correction
circuit
MW 152
1 Max. Ø 145.5
2 6 holes Ø 4.3 on Ø 134.5
3 3
4 Mounting hole min. Ø 124.5
5 63
6 4.3
7 Max. cone excursion 13
MW 162
1 Max. Ø 175
2 6 holes Ø 4.3 on Ø 158
3 3
4 Mounting hole min. 136
5 67
6 5
7 Max. cone excursion 15
MW 162 GT
1 Max. Ø 166
2 4 holes Ø 7.5 on Ш 155
3 Ш 88
4 Min. baffle hole Ø 134
5 62
6 1.5
7 Max. cone excursion 14
1
2
3
4
5
6
7 22 μF
4.7 Ω
2
3
4
5
6
7
1
22 μF
4.7 Ω
1
7
6
5
3
4
2
22 μF
4.7 Ω
