Connecting the crossover
12 Dynaudio Mobile Systems
Connecting the crossover

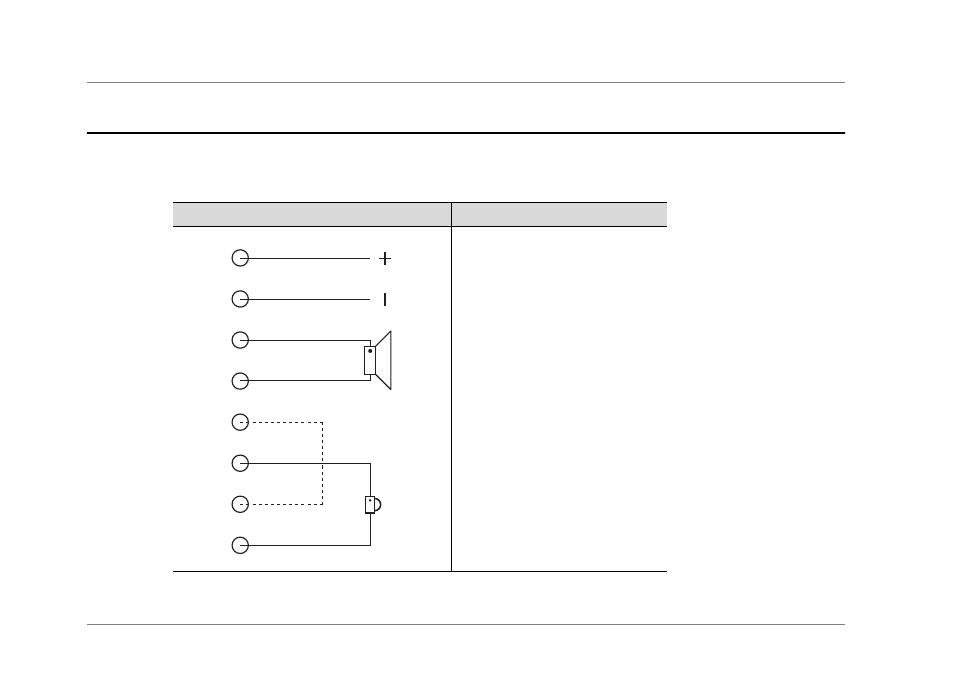

2-way crossover X 252
Terminal label Connections
1 To power amplifier: + terminal
2 To power amplifier: – terminal
3 To woofer: + terminal
4 To woofer: – terminal
5 To tweeter: + terminal, +2dB
6 To tweeter: + terminal, standard
7 To tweeter: + terminal, –2dB
8 To tweeter: – terminal
